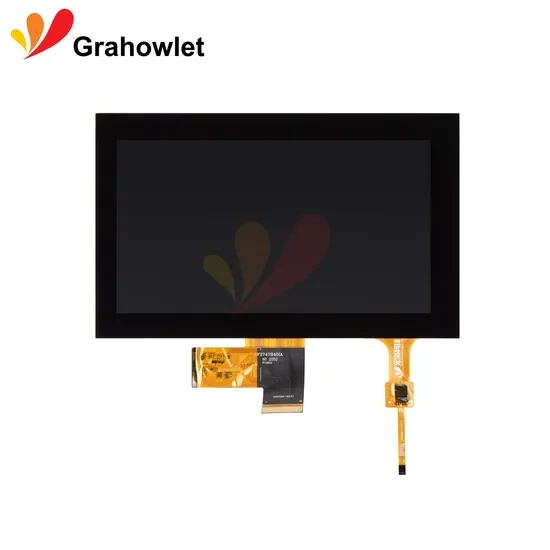

Premium Hx1011847 Touchscreen LCD Module for Medical Devices Use - LCD Module Display and Capacitive LCD Module Display price
5.0
Shipping Cost:
:
Contact the supplier about freight and estimated delivery time.
Digital LCD Module Type:
Counting Module
Usage:
Small-sized LCM, Monitor LCM, Notebook LCM, TV-LCM
Model NO.:
Hx1011847
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Package Gross Weight
2.000kg
Package Size
42.00cm * 30.00cm * 10.00cm
Production Capacity
50000pieces/Year
Origin
Zhejiang, China
Trademark
Grahowlet
Specification
Standard Specifications or Customized
Transport Package
Standard Packaging or Customized
Bonding Workmanship
Air/Optical Bonding
Storage Temperature
-30℃~80℃
Customized
Customized
LCD Drive Mode
Static Drive LCD Module
DOT-Matrix Graphic LCD Module Type
Row/Column-Driven
Display Technology
TFT
Response Time
5ms
Warranty
1 Year
Size
10.1 Inch
Product Name
Capacitive Touch Display Module
Keywords
Touch Display Module
Viewing Area
217.76(W)×136.40(H)mm
Support Systems
Windows/Android/Linux etc.
Viewing Angle
85/85/85/85
Operating Temperature
-20℃~70℃
Active Area
216.96(W)×135.60(H)mm
Outline Dimension
247.96(W)×166.60(H)×4.88(H)mm
Structure
Glass+Glass
Interface Type
Iic/USB
Type
LCM
Product Description
Product Description
CAPACITIVE TOUCH DISPLAY MODULE
Engineered for demanding environments, this high-performance capacitive touch display module delivers precise 10-point multi-touch response with exceptional durability.
Engineered for demanding environments, this high-performance capacitive touch display module delivers precise 10-point multi-touch response with exceptional durability.
Featuring advanced touch-through-glove capability, water and saltwater-resistant touch functionality, and explosion-proof cover glass up to 8mm thick, it's the ideal solution for industrial, marine, medical, and outdoor applications.
With ≥85% transparency, ≥6H surface hardness, and flexible Air/Optical Bonding options, this module seamlessly integrates with Windows, Android, and Linux systems.
Enhanced with AG, AR, and AF surface treatments for superior visibility in any lighting condition.
USE
Industrial Automation
Factory HMI panels, machinery control systems, and production line interfaces requiring glove operation
Outdoor Kiosks & Signage
Public information terminals, ticketing machines, and wayfinding displays in all weather conditions
Medical & Healthcare
Sanitary environments where gloved touch and easy-clean surfaces are essential
Factory HMI panels, machinery control systems, and production line interfaces requiring glove operation
Outdoor Kiosks & Signage
Public information terminals, ticketing machines, and wayfinding displays in all weather conditions
Medical & Healthcare
Sanitary environments where gloved touch and easy-clean surfaces are essential
Product Parameters
TECHNICAL PARAMETERS | |||||
Product Name | HX1011847 | PCAP Number | HX1011847-CTP | ||
Brand | Grahowlet | Interface Type | IIC/USB | ||
Size | 10.1 Inch | Structure | Glass+Glass | ||
Operating Temperature | -20℃~70℃ | Controller IC | Cypress | ||
Storage Temperature | -30℃~80℃ | Touch Points | 10 Points | ||
Bonding Workmanship | Air/Optical Bonding | Power Supply Voltage | 2.8V-3.3V | ||
Outline Dimension | 247.96(W)×166.60(H)×4.88(H)mm | TFT Number | EV101WUM-N20 | ||
Viewing Area | 217.76(W)×136.40(H)MM | Resolution | 1920X1200 | ||
Active Area | 216.96(W)×135.60(H)MM | Interface Type | 40PINS LVDS/HDMI/VGA | ||
Support Systems | Windows/Android/Linux Etc. | Luminance | 500Cd/M² | ||
Warranty | 1 Year | Viewing Angle | 85/85/85/85 | ||
Power Supply Voltage | 5.0V | ||||
Outline Dimension | 247.96(W)×166.60(H)×4.88(H)mm | ||||
Viewing Area | 217.76(W)×136.40(H)MM | ||||
Support Systems | Windows/Android/Linux Etc. | ||||
Warranty | 1 Year | ||||
Detailed Photos
10-POINT MULTI-TOUCH SUPPORT
UNIVERSAL GLOVE-FRIENDLY TOUCH TECHNOLOGY
Experience seamless, highly responsive multi-finger gesture recognition with precision 10-point capacitive touch technology. Whether pinching to zoom, rotating images, or executing complex multi-hand commands, this display module delivers smooth, lag-free interaction that enhances productivity and user engagement across all applications.
Breakthrough touch-through-glove capability supports gloves of all materials. This feature eliminates the need for users to remove protective gear, ensuring uninterrupted workflow in factories, laboratories, cold storage facilities, and outdoor work environments.
WATER & SALTWATER RESISTANT TOUCH OPERATION
HIGH OPTICAL TRANSPARENCY (≥85%)
Engineered to perform flawlessly in wet and humid conditions, this capacitive touch module maintains accurate touch detection even when the screen surface is covered with water, rain, or saltwater spray. Ideal for marine navigation systems, outdoor kiosks, food processing plants, and any environment where moisture exposure is unavoidable.
Enjoy crystal-clear visuals with industry-leading optical transparency of 85% or higher. This ensures that display content—whether text, graphics, or video—appears vibrant, and true-to-color, enhancing readability and reducing eye strain during extended use.
