3.Keyboard (Optional) 4:HDMI/VGA drive board (Optional, not free)
5.HDMI cable (Optional, not free) 6.12V1A power interface cable (Optional）
5.HDMI cable (Optional, not free) 6.12V1A power interface cable (Optional）
12 years of experience in industrial touch screen R&D and manufacturing.

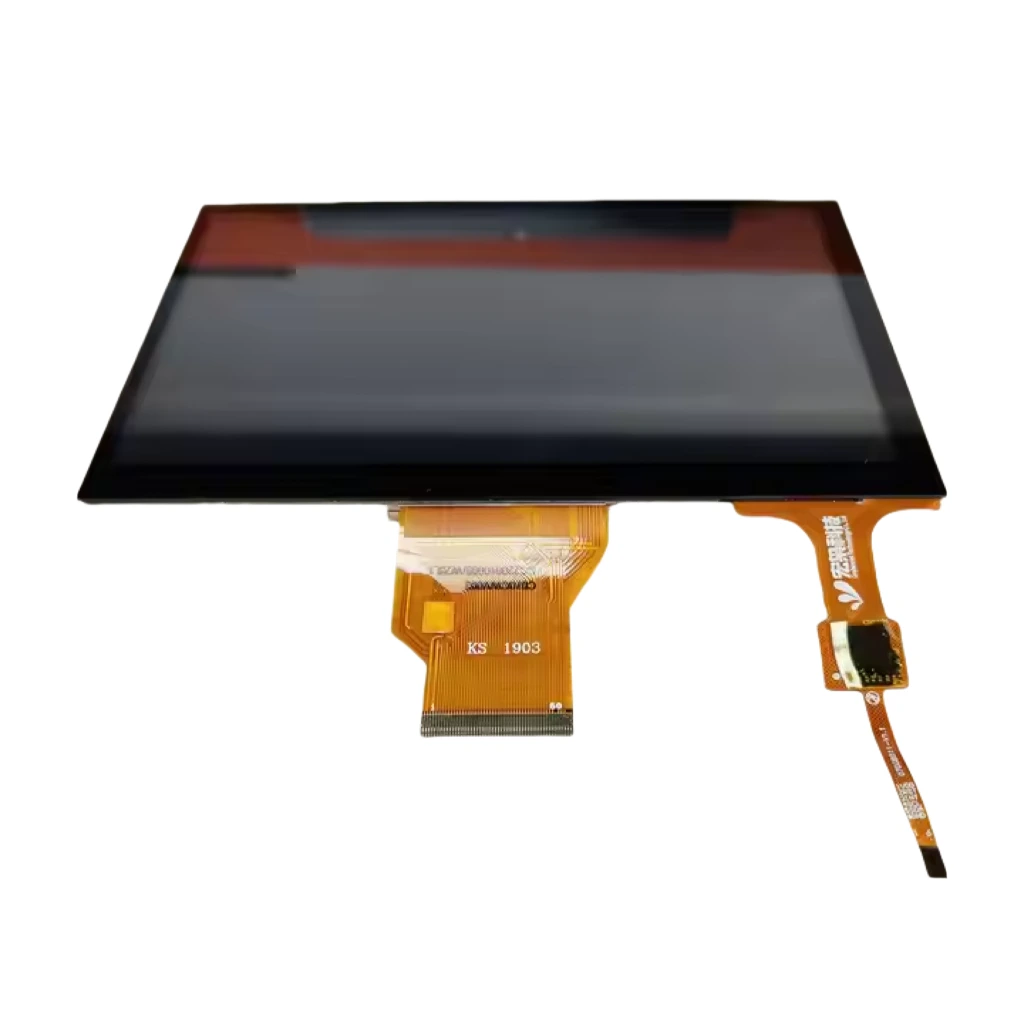

7-inch 800x480 Tft Lcd Capacitive Touch Screen Panel For Industrial & Smart Devices
5.0
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-1(pieces):7(days),>1(pieces):To be negotiated(days)
Customization:
Graphic customization (Min. Order: 300 sets),Customized packaging (Min. Order: 300 sets),Customized logo (Min. Order: 300 sets)
Brand Name:
grahowlet
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
LCD Interface
RGB/HMI/VGA
Touch Controller IC
cypress
Supplier Type
OEM/ODM
Display Size
7 inch
Application
Industrial Application
Brightness
1000 Cd/m2
Resolution
800*480
Panel Type
TFT LCD DISPLAY
Touch points
1-10 points
Structure
PCAP(Glass+Glass)+TFT
Touch type
projected capacitive multi touch screen panel
Product name
7 inch touch screen with 800x480 outdoor tft lcd panel
Place of Origin
China (Mainland)
Type
Lcm
7-inch 800x480 TFT LCD Capacitive Touch Screen Panel for Industrial & Smart Devices
Product Description
TPM | Product Name | HX0701706 |
Brand | Grahowlet | |
Size | 7.0 inch | |
Operating Temperature | -20℃ ~ 70℃ | |
Storage Temperature | -30℃ ~ 80℃ | |
Bonding workmanship | Air Bonding | |
Outline Dimension | 165.00(W)x100.00(H)x7.73(D) mm | |
Viewing Area | 154.88(W)x86.72(H) mm | |
Active Area | 154.21(W)x85.92(H) mm | |
Support Systems | Windows/Android/Linux etc. | |
Warranty | 1 year | |
PCAP | Interface Type | USB/IIC |
Structure | Glass+Glass | |
Controller IC | Cypress | |
Touch Points | 10 Points | |
Transparency | ≥85% | |
Surface Hardness | ≥6H | |
Surface treatment | / | |
Supply Voltage | 2.8V ~ 3.3V | |
TFT | Resolution | 1024X600 |
TFT Interface Type | RGB/HDMI/VGA | |
Luminance | 1000 cd/m² | |
Viewing Angle | 70/70/50/70 |
Package Content
Content (1pcs):
1.7" outdoor touch screen 2."IIC TO USB" board+USB cable (Optional, not free）
Related Products
We can provide USB controller and HDMI/VGA driver board.
If you didn't find the suit one, Just tell us your requirements, so i could recommended you more suitable products.Please contact us.
Application
If you want USB interface, we can supply IIC to USB Bridgeboard
1.Support Touch with glove of all materials and thickness with 6mm
2.Support Touch with water/brine
3.Cover glass Support -20mm thickness--explosion-proof
4.Cover glass surface treatment--AG, AR, AF
Anti Glare (AG) processing could eliminate screen surface mirror problem
through converting direct light to diffuse light on the touch screen.
Anti-Reflective(AR) processing means adding a type of coating that could reduce reflected
light on the cover glass,which dereases screen reflection and
increases visual effects significantly in the sun.
Anti-Fingerprint (AF) processing is adding on the cover glass a kind of coating that could increases surface smoothness,reduces surface aliding resistance,residual water and fingerprints on the surface significantly and improves touch feeling and clarity.
