Model Number:HX0701703
Size:7.0 inch
Operating Temperature:-20℃ ~ 70℃
Storage Temperature:-30℃~80℃
Outline Dimension:165(W)x100(H)x7.9(D) mm
Viewing Area:154.88(W)x86.72(H) mm
Active Area:154.21(W)x85.92(H) mm
Support Systems:Windows/Android/Linux etc.
12 years of experience in industrial touch screen R&D and manufacturing.
Hx0701703 7 Inch 1024x600 500cd/m2 Tft Lcd Screen With 7" Capacitive Touch Panel Tft Lcd Capacitive Touch Screen Module
5.0
Model Number:
HX0701703
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-1(pieces):7(days),>1(pieces):To be negotiated(days)
Customization:
Customized logo (Min. Order: 100 sets),Customized packaging (Min. Order: 100 sets),Graphic customization (Min. Order: 100 sets)
Brand Name:
Grahowlet
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Luminance
500-1000 cd/m2
Touch Screen
Projective Capacitive Multi-touch
Interface
IIC/USB/RS232+RGB/LVDS/MIPI/VGA/RS485
Operating Temperature
-20℃ ~ 70℃
Active Area
154.21(W)x85.92(H) mm
Outline Dimension
165(W)x100(H)x7.9(D) mm
Application
industrial, medical
Panel Type
TFT-LCD Panel
Touch controller
CYTMA568
Touch points
1-10 Points
Structure
CTP(G+G)+TFT
Product name
7 inch 1024x600 500cd/m2 tft lcd screen with 7" capacitive touch panel
Place of Origin
Zhejiang, China
Type
Capacitive
HX0701703 7 inch 1024x600 500cd/m2 tft lcd screen with 7" capacitive touch panel
Product Description
Customize CTP/CTP+ LCD DISPLAY 1.3-65 inch
Full range of standard product in stock (no need customization)
MODULE PRODUCT DETAILS
PCAP(projected capacitive)
Light Transmittance:≥85%
Surface Hardness:≥6H
Interface Type:IIC/USB
Surface Hardness:≥6H
Interface Type:IIC/USB
Structrue:Glass+Glass
Controller IC:Cypress
Touch Points:10 Points
Power Supply Voltage:2.8V~3.3V
Controller IC:Cypress
Touch Points:10 Points
Power Supply Voltage:2.8V~3.3V
TFT LCD DISPLAY
Resolution:1024X600
Interface Type:LVDS
Luminance:500 cd/m²
Viewing Angle:80/80/60/70
Warranty:1 year
Interface Type:LVDS
Luminance:500 cd/m²
Viewing Angle:80/80/60/70
Warranty:1 year
1.Support Touch with glove of all materials and thickness with 6mm
2.Support Touch with water/brine
3.Cover glass Support -8mm thickness--explosion-proof
Related Products

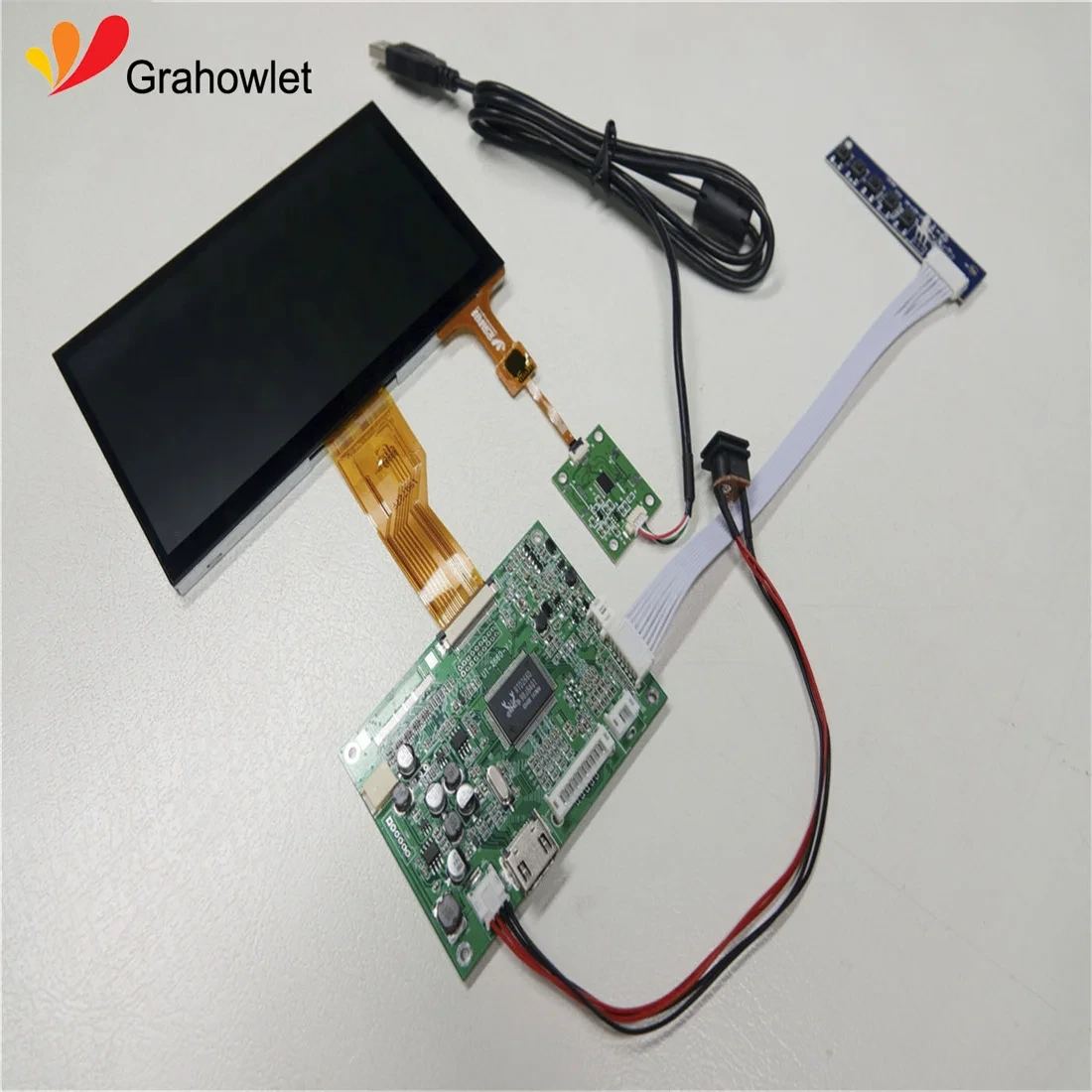

We can provide USB controller and HDMI/VGA driver board.
If you didn't find the suit one, Just tell us your requirements, so i could recommended you more suitable products.Please contact us.
Custom Service
Cover Glass
shape Support for special-cut, drill hole(minimum aperture 0.8 mm) | Color Different colors of silkprint and LOGO screen print (UV-proof ink optional) | Brand Options: AGC,Corning, CG etc. | Thickness Thickness option: 0.55, 0.7,1.0,1.1,1.8,2.0,3.0,4.0 ,5.0,6.0mm etc. |
Sensor
Materials:Glass,fiilm,film+film
Thickness:0.005mm,0.125mm,0.4mm, 0.55mm,0.7mm,1.1mm
FPC:shape design optional
Touch IC:Cypress,Ilitek,Atmel,Focaltech,
EETI,Goodix,etc
Thickness:0.005mm,0.125mm,0.4mm, 0.55mm,0.7mm,1.1mm
FPC:shape design optional
Touch IC:Cypress,Ilitek,Atmel,Focaltech,
EETI,Goodix,etc
Interface:IIC,USB,RS232
Display
Partners: BOE, AUO, LNNOLux, TianMa, IVO, etc.
Category: TFT-LCD, OLED
Interface:MCU/MIPI/RGB/LVDS/EDP etc
Category: TFT-LCD, OLED
Interface:MCU/MIPI/RGB/LVDS/EDP etc
Driver Board Solutions
1. TFT LCD driver board:RGB/MIPI/LVDS/EDP and others interface conversion to VGA/HDMI.
2. The conversion board between LCD screen signals, as RGB TO LVDS/LVDS TO EDP etc.
3. "IIC TO USB" bridge board,it can achieve drive free use of the touch screen.
4. According to customer requirements, we can provide customized services, such as deep customization of driver boards, single chip microcontrollers, etc.
Bonding(PCAP and Display)
Optical Bonding(Refer to the above figure) | Air Bonding(Refer to the above figure) |
Optical bonding refers to the seamless bonding between liquid crystal display screens and touch screens using OCA optical adhesive or OCR adhesive, which has the advantages of being light and thin, dust free, high transparency, and resistant to falling; But the price is expensive. For example, iPad Mini/iPad Pro and others use Optical bonding | Air bonding is the use of double-sided adhesive to bond the glass cover plate and display screen together, with gaps in the middle. The disadvantage is that it is easy to get dust and is not resistant to falling. Poor display effect, etc. But the price is cheap. For example, IPad 10th/9th Generation and others use Air bonding |
Certifications
Packing & Delivery
FAQ
Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q:How long is the warranty time for your products?
A:Normally 1 year warranty without damaged by people actions like misuse.It depends on different products.
