12 years of experience in industrial touch screen R&D and manufacturing.
5 Inch Tft Lcd Screen With 800x480 Capacitive Touch Module High Resolution Product For Enhanced Visual Experience
• PCAP & LCD module size: 1.3”-32”
• Optical Bonding service : 1.3”-21.5”

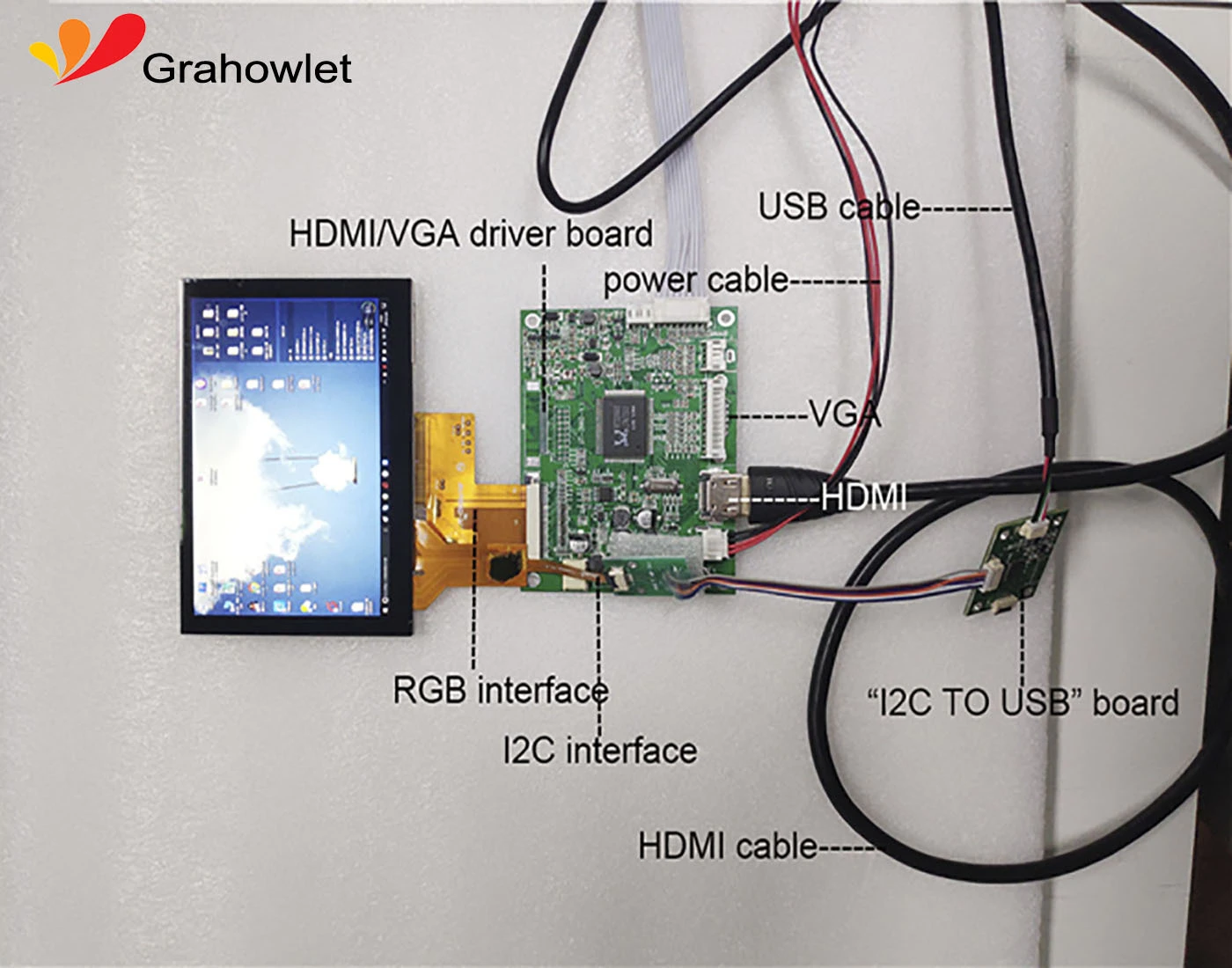

• HDMI & VGA T-CON Board available
• IIC-USB interface Bridge board available
•CTP can be Customized with cover glass surface treatment process AG(anti-glare), AR(anti-reflective), AF(anti-fingerprint)
• Support touch with 12mm cover glass.
• Support touch with pool of water.
• Support touch with 5mm gloves.
• Custom Highlight TFT (Up to 2300cd/㎡)
• Support operating temperature: -40℃-85℃.
>>>Contact us to get your individual customized solution!!<<<
Product Name | HX0501801 |
Brand | Grahowlet |
Size | 5.0 inch |
Operating Temperature | -20℃ ～ 70℃ |
Storage Temperature | -30℃ ～ 80℃ |
Outline Dimension | 120.70(W)X76.30(H)X5.00(D)mm |
Viewing Area | 108.80(W)X65.60(H)mm |
Active Area | 108.00(W)X64.80(H) mm |
Support Systems | Windows/Android/Linux etc. |
Warranty | 1 year |
PCAP Interface Type | IIC(8pins)/USB/RS232 |
Structure | G+G |
Controller IC | Cypress |
Touch Points | 10 Points |
Transparency | ≥85% |
Surface Hardness | ≥6H |
Power Supply Voltage | 2.8V ~ 3.3V |
Resolution | 800X480 |
TFT Interface Type | RGB(50 PINS)/HDMI/VGA |
Luminance | 500 cd/m² |
Viewing Angle | ALL |
as G + G, G + F (G + F + F ),P + G, etc. and various technical support programs such as Cypress , Atmel, EETI, FocalTech, Goodix etc. according to different application environments. We provides solutions that match all customers’ touch screen needs and create products based on multiple technologies. We are committed to supply global customers with first-class products and professional technical services in the touch industries. Our products are of high stability and anti-interference performance and used in various industries with complicated and difficult conditions.
Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service，can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q:How long is the warranty time for your products?
A:Normally 1 year warranty without damaged by people actions like misuse.It depends on different products.
Grahowlet is a professional manufacturer of capacitive touch screen & LCD Touch monitors, with low power consumption, High Sensitivity, High resolution.
