12 years of experience in industrial touch screen R&D and manufacturing.

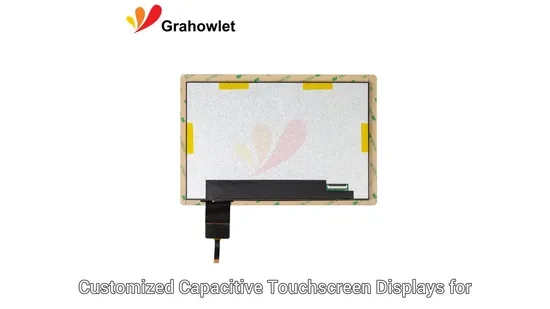

Industrial USB Touch Screen Panel with USB Controller Touch Board
5.0
Aspect Ratio:
16:9
Screen Size:
30 Inch
Shipping Cost:
:
Contact the supplier about freight and estimated delivery time.
Model NO.:
H3001701
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Storage Environment
-30℃~80℃,≤85%Rh
Surface Hardness
≥6h
Resistive Touch Screen Type
Pcap
Package Gross Weight
1.500kg
Package Size
42.00cm * 30.00cm * 10.00cm
Production Capacity
50000pieces/Year
Origin
Zhejiang, China
Trademark
Grahowlet
Specification
Standard Specifications or Customized
Transport Package
Standard Packaging or Customized
Customized
Customized
Touch Points
10 Points
Warranty
1 Year
Product Name
Capacitive Touch Panel
Screen Type
Capacitive
Transparency
≥85%
Operating Environment
-20℃~70℃,≤85%Rh
Keywords
Touch Screen
Support Systems
Windows/Android/Linux etc.
Application
Industrial Control System
Structure
G+G
Interface Type
USB, Iic/RS232
Product Description
Product Description
CAPACITIVE TOUCH PANEL
Discover our high-performance 30-inch capacitive touch panel for tough industrial use.
With 10-point multi-touch and 16:9 ratio, this screen ensures accurate professional interaction.
Built with ≥6H hardness and 8mm explosion-proof glass, it excels in harsh conditions while providing ≥85% optical clarity.
Our PCAP touch panel supports glove touch and water touch, ideal for factories and marine use.
Compatible with Windows, Android, and Linux, offering customization options and 1-year warranty.
USE
Factory HMI Systems
Interface panels for line control, CNC operation, and process monitoring in manufacturing.
Industrial Control Rooms
Command stations need durable displays for real-time management and data visualization.
Warehouse & Logistics
Inventory terminals and order systems where glove touch is essential.
Outdoor Kiosks
Terminals and displays exposed to elements like sunlight, rain, and temperature changes.
Interface panels for line control, CNC operation, and process monitoring in manufacturing.
Industrial Control Rooms
Command stations need durable displays for real-time management and data visualization.
Warehouse & Logistics
Inventory terminals and order systems where glove touch is essential.
Outdoor Kiosks
Terminals and displays exposed to elements like sunlight, rain, and temperature changes.
Product Parameters
TECHNICAL PARAMETERS | |
Model Number | HX3001701 V1.0 |
Size | 30.0 inch |
Operating Temperature | -20°C ~ 70°C, ≤85% RH |
Storage Temperature | -30°C ~ 80°C, ≤85% RH |
Outline Dimension | 675.30x434.80x3.10 mm |
Viewing Area | 643.28(W)x402.80(H) mm |
Support Systems | Windows/Android/Linux etc. |
Light Transmittance | ≥85% |
Surface Hardness | ≥6H |
Interface Type | USB/IIC |
Controller IC | ILITEK |
Structure | Glass+Glass |
Touch Points | 1-10 Points |
Power Supply Voltage | 5V |
Detailed Photos
PRECISE 10-POINT MULTI-TOUCH RESPONSE
SUPERIOR GLOVE TOUCH COMPATIBILITY
Supports 10-point touch for gestures like pinch, rotation, and swipe for complex interfaces.
Supports glove touch up to 6mm, enhancing safety and convenience in diverse environments.
EXPLOSION-PROOF COVER GLASS
HIGH SURFACE HARDNESS
Reinforced glass up to 8mm for explosion-proof protection, ensuring safety in hazardous areas.
6H or higher hardness for scratch resistance, maintaining a clean look after intensive use.
