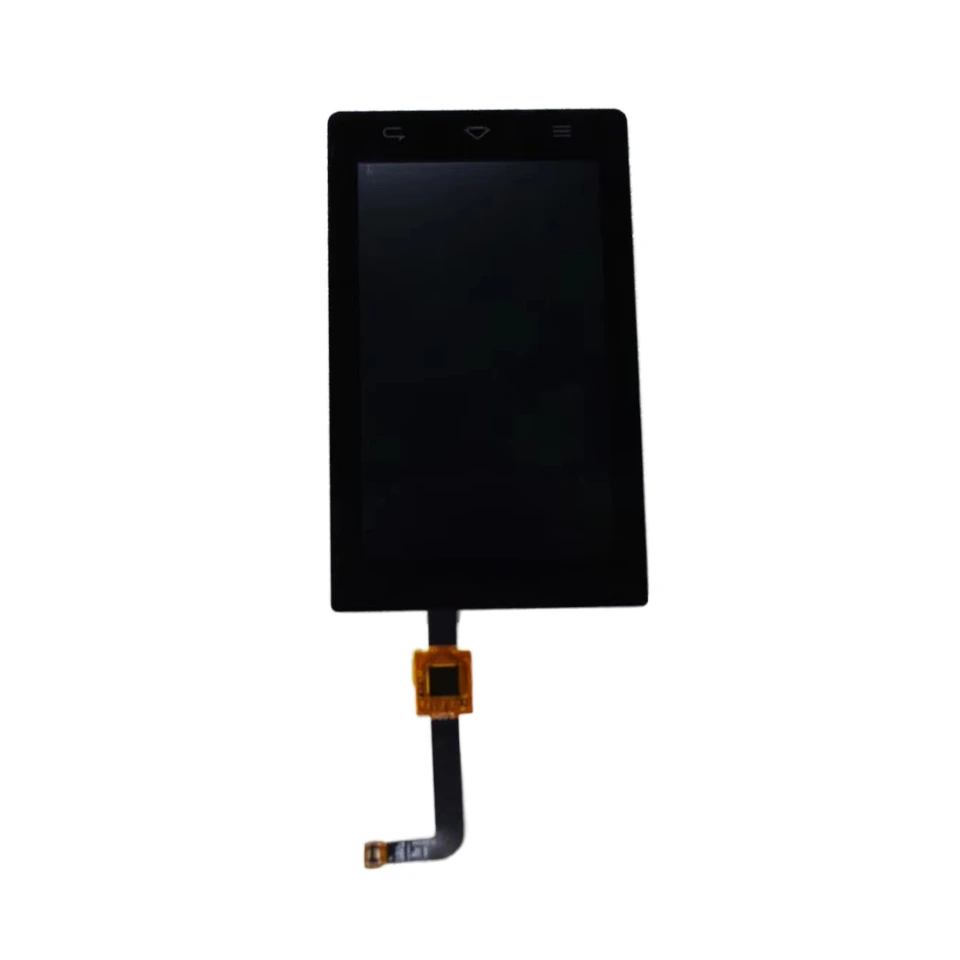

4,4.3,4.7,5,5.5,6,7 Inch Waterproof Touch Screen And Tft Lcd Display Smart Home Industrial Charging Pile Medical Outdoor/indoor
Product Description
MODULE PRODUCT DETAILS Model Number:HX0401602
Size:4.0 inch Operating Temperature:-20℃ ~ 60℃ Outline Dimension:65.70(W)x109.10(H)x4.60(D) mm Viewing Area:52.44(W)x87.00(H) mm Active Area:51.84(W)x86.40(H) mm Support Systems:Windows/Android/Linux etc. |
|
PCAP(projected capacitive) Light Transmittance:≥85%
Surface Hardness:≥6H Interface Type:IIC Controller IC:FocalTech Touch Points:Single Point Power Supply Voltage:2.8V ~ 3.3V Structure:Glass+Flim
|
|
TFT LCD DISPLAY: Resolution:480*800
Interface Type:MIPI Luminance:350 cd/m² Viewing Angle:ALL |
Related Products
Model Number:HX0401601
|
Model Number:HX0501708
|
Model Number:HX0431601
|
Model Number:HX0501703
|
Model Number:HX0801704
|
Model Number:HX0701703
|
We can provide USB controller and HDMI/VGA driver board.
If you didn't find the suit one, Just tell us your requirements, so i could recommended you more suitable products.Please Click here.
Custom Service
If you want USB interface, we can supply IIC to USB Bridgeboard Click here
Programme evaluation : 1 to 2 working days
Drawings:2 to 3 working days
Customized products:3 to 4 weeks(after drawings confirmed)
Pruduction delivery :3 to 5 weeks
Capacity: 100K per month(10.1 inches as a reference)
Process capability: G+G, G+F+F, shielding process, overall module joint process(Optical Bonding)(maximum 65 )Cover glass surface treatment AR, AG, AF
Technical support :Engneers to privide door-to-door or remote access service within 24 hours
Stable supply chain for at least 3~5 years guarantee
One year warranty time for all of our product
Quality Assurance:Quality Control: Full-inspection of Function and Appearance by OQC
Efficient Customer Service : respond to quality complaint and returns in one day
Reliability Test: high and low temperature storage test, cold and hot shock test, ESD servo motor disturbance test, etc.
CLICK HERE FOR MORE INFORMATION
Product Features
GLOVE FUNCTIONSupport gloves made of various materials such as nylon,latex, and of different thickness, 6mm the thickest. |
WATER FUNCTION Support touch with water,oil, |
THICKNESSSupport normal touch with thick cover like tempered glass,8mm the thickest |
Anti Glare (AG) processing could eliminate screen surface mirror problem through converting direct light to diffuse light on the touch screen.
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q:How long is the warranty time for your products?
A:Normally 1 year warranty without damaged by people actions like misuse.It depends on different products.
