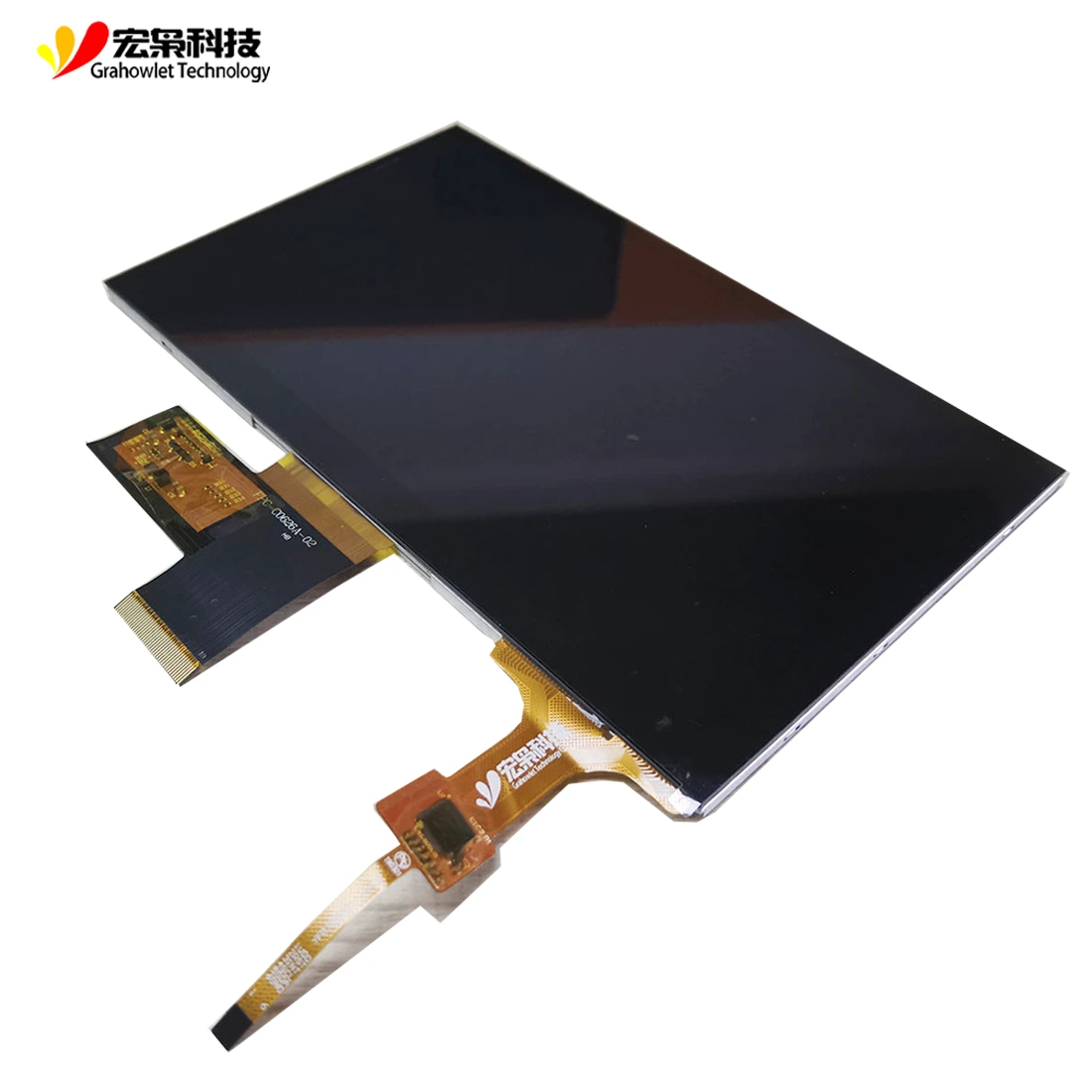

Raspberry Pi Touch Screen 7 Inch Tft Lcd Display With Iic/usb Ctp Touch Panel
5.0
Shipping:
Express · Ocean freight · Land freight · Air freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Customization:
Graphic customization (Min. Order: 500 sets),Customized packaging (Min. Order: 500 sets),Customized logo (Min. Order: 500 sets)
Brand Name:
Grahowlet
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Luminance
350 cd/m2
Special function
waterproof
warranty
1 Year
Display Size
7 inch
Touch Screen
Projected Capacitive Touch Optional)
Interface
LVDS/HMI/VGA
Application
Industrial Application
Panel Type
IPS TFT LCD PANEL
Touch controller
Cypress
Touch points
10 Points
Product name
7 inch tft lcd display with IIC/USB CTP touch panel
Place of Origin
Zhejiang, China
Type
Capacitive
raspberry pi touch screen 7 inch tft lcd display with IIC/USB CTP touch panel
Customized Solution
Grahowlet- China P-CAP & TFT Manufacturer
• PCAP size from 1.3”-65”
• PCAP & LCD module size: 1.3”-32”
• Optical Bonding service : 1.3”-21.5”
• HDMI & VGA T-CON Board available
• IIC-USB interface Bridge board available
•CTP can be Customized with cover glass surface treatment process AG(anti-glare), AR(anti-reflective), AF(anti-fingerprint)
• Support touch with 12mm cover glass.
• Support touch with pool of water.
• Support touch with 5mm gloves.
• Custom Highlight TFT (Up to 2300cd/㎡)
• Support operating temperature: -40℃-85℃.
>>>Contact us to get your individual customized solution!!<<<
• PCAP & LCD module size: 1.3”-32”
• Optical Bonding service : 1.3”-21.5”
• HDMI & VGA T-CON Board available
• IIC-USB interface Bridge board available
•CTP can be Customized with cover glass surface treatment process AG(anti-glare), AR(anti-reflective), AF(anti-fingerprint)
• Support touch with 12mm cover glass.
• Support touch with pool of water.
• Support touch with 5mm gloves.
• Custom Highlight TFT (Up to 2300cd/㎡)
• Support operating temperature: -40℃-85℃.
>>>Contact us to get your individual customized solution!!<<<
Product Description
Product Name | HX0701820 |
Brand | Grahowlet |
Size | 7.0 inch |
Operating Temperature | -20℃ ~ 70℃ |
Storage Temperature | -30℃ ~ 80℃ |
Outline Dimension | 165.00x100.00x5.35 mm |
Viewing Area | 154.88(W)x86.72(H) mm |
Active Area | 154.21(W)x85.92(H) mm |
Support Systems | Windows/Android/Linux etc. |
Warranty | 1 year |
PCAP Interface Type | USB/IIC(6 pins) |
Structure | G+G |
Controller IC | Cypress |
Touch Points | 10 Points |
Transparency | ≥85% |
Surface Hardness | ≥6H |
Power Supply Voltage | 2.8V ~ 3.3V |
Resolution | 1024X600 |
TFT Interface Type | LVDS(40 pins) /HDMI/VGA |
Luminance | 350 cd/m² |
Viewing Angle | ALL |
Related Products
We can provide USB controller and HDMI/VGA driver board.
If you didn't find the suit one, Just tell us your requirements, so i could recommended you more suitable products.Please contact us.
Our Company
Hangzhou Hongxiao Technology is a comprehensive service provider of capacitive touch screen module and TFT LCD display for various industries. In order to meet different requirements of worldwide customers, Hongxiao supply all kinds of product structures such
as G + G, G + F (G + F + F ),P + G, etc. and various technical support programs such as Cypress , Atmel, EETI, FocalTech, Goodix etc. according to different application environments. We provides solutions that match all customers’ touch screen needs and create products based on multiple technologies. We are committed to supply global customers with first-class products and professional technical services in the touch industries. Our products are of high stability and anti-interference performance and used in various industries with complicated and difficult conditions.
as G + G, G + F (G + F + F ),P + G, etc. and various technical support programs such as Cypress , Atmel, EETI, FocalTech, Goodix etc. according to different application environments. We provides solutions that match all customers’ touch screen needs and create products based on multiple technologies. We are committed to supply global customers with first-class products and professional technical services in the touch industries. Our products are of high stability and anti-interference performance and used in various industries with complicated and difficult conditions.
Application
If you want USB interface, we can supply IIC to USB Bridgeboard
1.Support Touch with glove of all materials and thickness with 6mm
2.Support Touch with water/brine
3.Cover glass Support -8mm thickness--explosion-proof
4.Cover glass surface treatment--AG, AR, AF
Anti Glare (AG) processing could eliminate screen surface mirror problem
through converting direct light to diffuse light on the touch screen.
AR processing means adding a type of coating that could reduce reflected light on the cover
glass,which dereases screen reflection and increases visual effects
significantly in the sun.
Feedback of customers
For more Ratings & Reviews, please Click here
Packing&Shipping
FAQ
Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service，can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q: Is there any suggestion regarding the capacitive touch screen module solutoin directly used by raspberry pi and orange pi?
A: We have some mature projects cases and the best way is to connect the touch screen directly through USB interface to the Raspberry Pi or the orange Pi, and the display can be directly connected through HDMI interface, this way the whole solution can be implemented through plug and play.
Large size touch screen will be designed directly with USB interface, small size is general designed with IIC interface, so we will do is to provide the board which changes the IIC into USB. however, customers need to contact our technicians to check the configuration and software system.
For display, we can provide RGB to HDMI, LVDS to HDMI, MPI to HDMI, EDP to HDMI and other driver boards to realize the connection with Raspberry Pi and orange pi;
