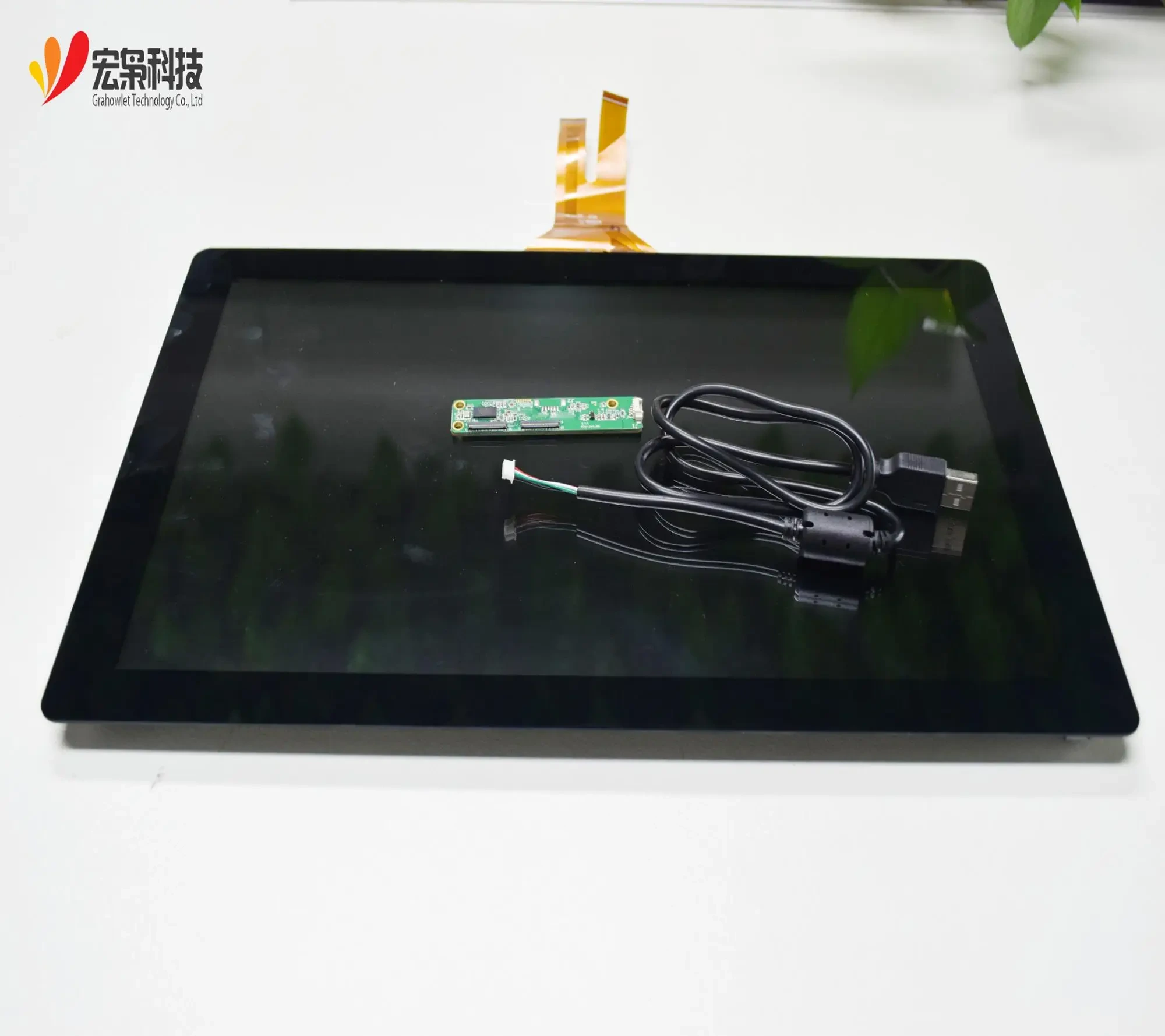

Open Frame Custom Size Industrial Pcap Multi-touch 15 Inch Touchscreen 15.4 Kit 15.6 Touch Screen Monitor

Full range of standard product in stock (no need customization)

	MODULE PRODUCT DETAILS     Model Number:HX1561707     Size:15.6 inch     Operating Temperature:-10℃ ~ 70℃     Outline Dimension:389.00x237.05x14.75 mm     Viewing Area:345.43x194.74 mm     Active Area:344.16x193.59 mm     Support Systems:Windows/Android/Linux etc.
PCAP(projected capacitive) Light Transmittance:≥85% Surface Hardness:≥6H Interface Type:USB Controller IC :ILITEK Touch Points:1-10 Points Power Supply Voltage:5V
	TFT LCD DISPLAY    Resolution:1920*1080    Interface Type:LVDS    Luminance:400 cd/m²    Viewing Angle:80/80/70/70

Related Products

Model Number:HX1701702 Size:17.0 inch Resolution:1280*1024 Interface Type:LVDS Luminance:350 cd/m² Viewing Angle:85/80/85/85	Model Number:HX2151705 Size:21.5 inch Resolution:1920x1080 Interface Type:LVDS Luminance:250 cd/m² Viewing Angle:ALL	Model Number:HX2401801  Size:24.0 inch Resolution:1920x1080 Interface Type:LVDS Luminance:1000 cd/m² Viewing Angle:ALL

We can provide USB controller and HDMI/VGA driver board.
If you didn't find the suit one, Just tell us your requirements, so i could recommended you more suitable products.Please Click here.

Custom Service

  Programme evaluation : 1 to 2 working days
  Drawings:2 to 3 working days
  Customized products:3 to 4 weeks(after drawings confirmed)
  Pruduction delivery :3 to 5 weeks
  Capacity: 100K per month(10.1 inches as a reference)
  Process capability: G+G, G+F+F, shielding process, overall module joint process(Optical Bonding)(maximum 65 )Cover glass surface treatment AR, AG, AF
  Technical support :Engneers to privide door-to-door or remote access service within 24 hours
  Stable supply chain for at least 3~5 years guarantee
  One year warranty time for all of our product
  Quality Assurance:Quality Control: Full-inspection of Function and Appearance by OQC
 Efficient Customer Service : respond to quality complaint and returns in one day
 Reliability Test: high and low temperature storage test, cold and hot shock test, ESD servo motor disturbance test, etc.

Product Features

GLOVE FUNCTION Support gloves made of various materials such as nylon,latex, cotton,plush and leather and of different thickness,6mm the thickest.	WATER FUNCTION   Support touch with water,oil,   oil-water mixture and brine	THICKNESS  Support normal touch with thick   cover like tempered glass,8mm   the thickest

Anti Glare (AG) processing could eliminate screen surface mirror problem through converting direct light to diffuse light on the touch screen.

 Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry.  From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q:How long is the warranty time for your products?
A:Normally 1 year warranty without damaged by people actions like misuse.It depends on different products.
