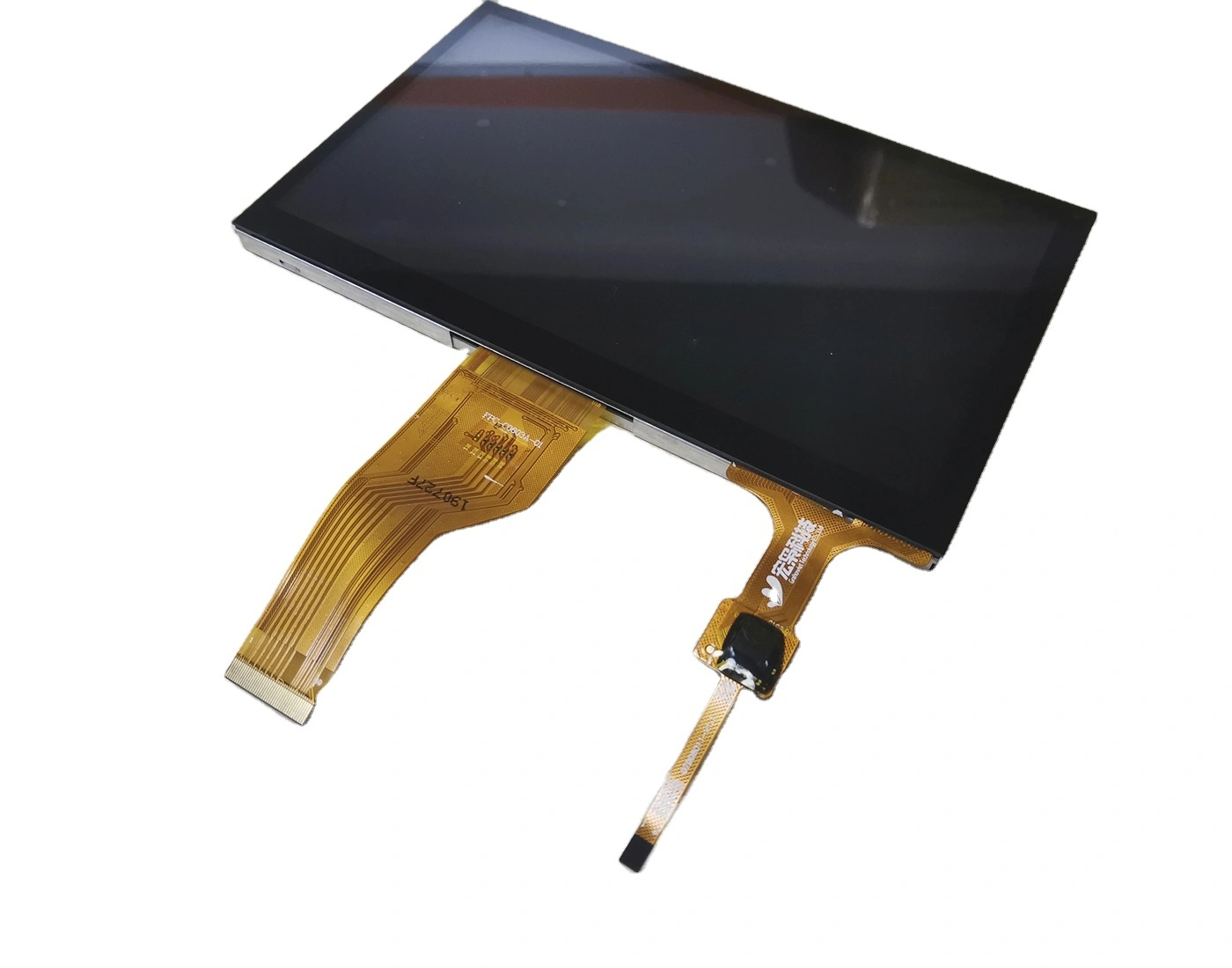

Oem/odm 5 6 7 8 9 10.1 Inch Capacitive Touch Screen Tft Lcd Display Module For Industrial Smart Home Medical Car Applications
5.0
Model Number:
HX0701703
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-1(pieces):7(days),>1(pieces):To be negotiated(days)
Customization:
Customized logo (Min. Order: 500 sets),Customized packaging (Min. Order: 500 sets),Graphic customization (Min. Order: 500 sets)
Brand Name:
Grahowlet
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
touch controller
cytma568
structure
PCAP(Glass+Glass)+TFT
Product Name
7 inch touch screen and tft lcd display module
Viewing Angle
80/80/60/70
Interface
IIC/USB/RS232/RS485/MIPI
Operating Temperature
-20℃ ~ 70℃
Active Area
154.21(W)x85.92(H) mm
Outline Dimension
165(W)x100(H)x7.9(D) mm
Application
Industrial, car, medical, educated, smarthome, Industrial Application
Panel Type
TFT LCD Display
Touch type
PCAP 10 Points Capacitive
Place of Origin
Zhejiang, China
Type
Capacitive
OEM/ODM PCAP 5,6,7,8,9,10.1 inch touch screen and tft lcd display module
Customized Solution
Grahowlet- China P-CAP & TFT Manufacturer
• PCAP size from 1.3”-65”
• PCAP & LCD module size: 1.3”-32”
• Optical Bonding service : 1.3”-21.5”
• HDMI & VGA T-CON Board available
• IIC-USB interface Bridge board available
•CTP can be Customized with cover glass surface treatment process AG(anti-glare), AR(anti-reflective), AF(anti-fingerprint)
• Support touch with 12mm cover glass.
• Support touch with pool of water.
• Support touch with 5mm gloves.
• Custom Highlight TFT (Up to 2300cd/㎡)
• Support operating temperature: -40℃-85℃.
>>>Contact us to get your individual customized solution!!<<<
• PCAP & LCD module size: 1.3”-32”
• Optical Bonding service : 1.3”-21.5”
• HDMI & VGA T-CON Board available
• IIC-USB interface Bridge board available
•CTP can be Customized with cover glass surface treatment process AG(anti-glare), AR(anti-reflective), AF(anti-fingerprint)
• Support touch with 12mm cover glass.
• Support touch with pool of water.
• Support touch with 5mm gloves.
• Custom Highlight TFT (Up to 2300cd/㎡)
• Support operating temperature: -40℃-85℃.
>>>Contact us to get your individual customized solution!!<<<
Product Description
Product Name | HX0701703 |
Brand | Grahowlet |
Size | 7.0 inch |
Operating Temperature | -20℃ ～ 70℃ |
Storage Temperature | -30℃ ～ 80℃ |
Outline Dimension | 165(W)x100(H)x7.9(D) mm |
Viewing Area | 154.88(W)x86.72(H) mm |
Active Area | 154.21(W)x85.92(H) mm |
Support Systems | Windows/Android/Linux etc. |
Warranty | 1 year |
PCAP Interface Type | USB/IIC |
Structure | Glass+Glass |
Controller IC | Cypress |
Touch Points | 10 Points |
Transparency | ≥85% |
Surface Hardness | ≥6H |
Power Supply Voltage | 2.8V ~ 3.3V |
Resolution | 1024X600 |
TFT Interface Type | LVDS/HDMI/VGA |
Luminance | 500 cd/m² |
Viewing Angle | 80/80/60/70 |
Related Products
We can provide USB controller and HDMI/VGA driver board.
If you didn't find the suit one, Just tell us your requirements, so i could recommended you more suitable products.Please contact us.
If you want USB interface, we can supply IIC to USB Bridgeboard
1.Support Touch with glove of all materials and thickness with 6mm
2.Support Touch with water/brine
3.Cover glass Support -8mm thickness--explosion-proof
4.Cover glass surface treatment--AG, AR, AF
Anti Glare (AG) processing could eliminate screen surface mirror problem
through converting direct light to diffuse light on the touch screen.
AR processing means adding a type of coating that could reduce reflected light on the cover
glass,which dereases screen reflection and increases visual effects
significantly in the sun.
Feedback of customers
For more Ratings & Reviews, please Click here
Packing&Shipping
FAQ
Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong
technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q:How long is the warranty time for your products?
A:Normally 1 year warranty without damaged by people actions like misuse.It depends on different products.
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong
technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q:How long is the warranty time for your products?
A:Normally 1 year warranty without damaged by people actions like misuse.It depends on different products.
