Full range of standard product in stock (no need customization)
12 years of experience in industrial touch screen R&D and manufacturing.

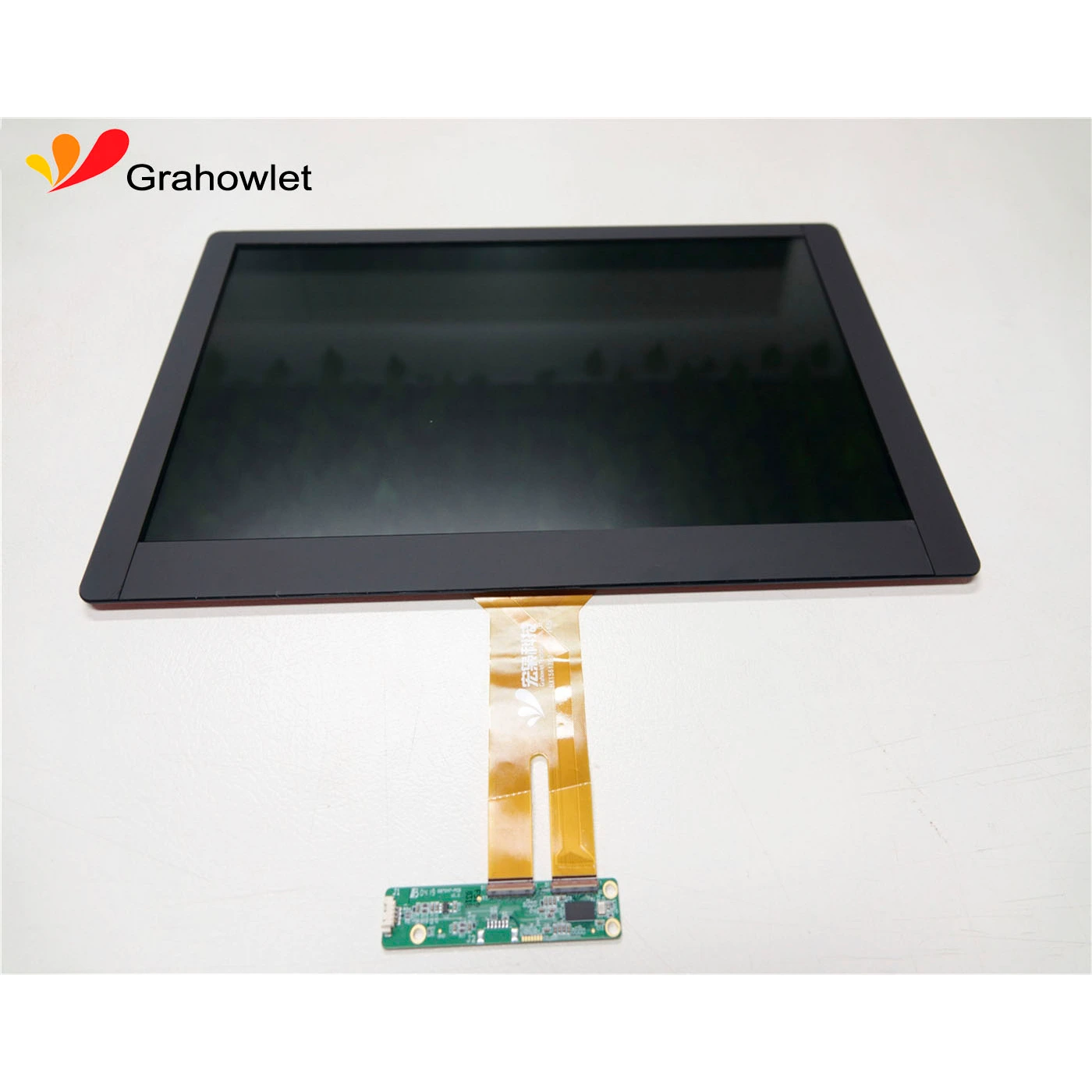

Oem/odm 15.6 Inch Capacitive Tft Lcd Touch Screen Module With Edp Interface
5.0
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-1(pieces):7(days),>1(pieces):To be negotiated(days)
Customization:
Customized logo (Min. Order: 500 sets),Customized packaging (Min. Order: 500 sets),Graphic customization (Min. Order: 500 sets)
Brand Name:
grahowlet
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
LCD Type
IPS LCD PANEL
Power Supply Voltage
USB 5.0V
Operating Temperature
0℃ ~ 50℃
Active Area
344.23(W)x193.54(H) mm
Outline Dimension
389.00(W)x237.05(H)x6.55(D) mm
Touch panel
Projective Multi-touch Capacitive
Touch controller
ILITEK
Touch points
1-10 Points
Structure
CTP(Glass+Glass)+LCD
Product name
oem/odm 15.6 inch capacitive tft lcd touch screen module
Place of Origin
Zhejiang, China
Interface Type
usb, EDP/HMI/VGA
Type
Capacitive
Products Status
New
Private Mold
Yes
After-sales Service
Call Center and on-line Technical Support
Aspect Ratio
16:9
Series
For Business
Package
Yes
Color
Black
Warranty(Year)
1-Year
15.6 inch lcd capacitive touch screen module for tablet large touch
Product Description
Customize CTP/CTP+ LCD DISPLAY 1.3-65 inch
*Model Number | HX1561705 V2.0 |
*Size | 15.6 inch |
*Operating Temperature | 0℃ ~ 50℃ |
*Storage Temperature | -20℃ ~ 60℃ |
*Outline Dimension | 389.00(W)x237.05(H)x6.55(D) mm |
*Viewing Area | 345.43(W)x194.74(H) mm |
*Active Area | 344.23(W)x193.54(H) mm |
*Support Systems | Windows/Android/Linux etc. |
*PCAP Interface Type | USB/IIC |
*Structure | G+G |
*PCAP Controller IC | ILITEK |
*Touch Points | 10 points |
*Power Supply Voltage | 5V |
*Resolution | 1920x1080 |
*DISPLAY Interface Type | EDP/HDMI/VGA |
*Luminance | 250 cd/m² |
*Viewing Angle | ALL |
*Support Systems | Windows/Android/Linux etc. |
*Warranty | 1 year |
Related Products
We can provide USB controller and HDMI/VGA driver board.
If you didn't find the suit one, Just tell us your requirements, so i could recommended you more suitable products.Please contact us.
Installation method
Inframe assemble module
Suitable products: The dimension of the touch screen and the display almost reached 1:1.
Flat assemble module
Suitable products:TFT+CTP with boarder (PCAP's OD is greater than TFT's OD)
Company Introduction
Hangzhou Hongxiao Technology is a comprehensive service provider of capacitive touch screen module and TFT LCD display for various industries. In order to meet different requirements of worldwide customers, Hongxiao supply all kinds of product structures such
as G + G, G + F (G + F + F ),P + G, etc. and various technical support programs such as Cypress , Atmel, EETI, FocalTech, Goodix etc. according to different application environments. We provides solutions that match all customers’ touch screen needs and create products based on multiple technologies. We are committed to supply global customers with first-class products and professional technical services in the touch industries. Our products are of high stability and anti-interference performance and used in various industries with complicated and difficult conditions.
as G + G, G + F (G + F + F ),P + G, etc. and various technical support programs such as Cypress , Atmel, EETI, FocalTech, Goodix etc. according to different application environments. We provides solutions that match all customers’ touch screen needs and create products based on multiple technologies. We are committed to supply global customers with first-class products and professional technical services in the touch industries. Our products are of high stability and anti-interference performance and used in various industries with complicated and difficult conditions.
Application
If you want USB interface, we can supply IIC to USB Bridgeboard
1.Support Touch with glove of all materials and thickness with 6mm
2.Support Touch with water/brine
3.Cover glass Support -8mm thickness--explosion-proof
4.Cover glass surface treatment--AG, AR, AF
Anti Glare (AG) processing could eliminate screen surface mirror problem
through converting direct light to diffuse light on the touch screen.
AR processing means adding a type of coating that could reduce reflected light on the cover
glass,which dereases screen reflection and increases visual effects
significantly in the sun.
Packing&Shipping
FAQ
Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong
technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q:How long is the warranty time for your products?
A:Normally 1 year warranty without damaged by people actions like misuse.It depends on different products.
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong
technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q:How long is the warranty time for your products?
A:Normally 1 year warranty without damaged by people actions like misuse.It depends on different products.
