Model Number:HX1331704
Size:13.3 inch
Operating Temperature:0℃ ~ 50℃
Outline Dimension:335.00x197.0x2.40mm
Viewing Area:295.0(W)x366.6(H) mm
Active Area:293.76(W)x165.24(H) mm
Support Systems:Windows/Android/Linux etc.
Warranty:1 year
12 years of experience in industrial touch screen R&D and manufacturing.
Ips Lcd Display Panel 13.3 Inch Pcap Touch Screen With Edp Interface Industrial Smart Home Medical Car Educated Logistics Device
5.0
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-1(pieces):7(days),>1(pieces):To be negotiated(days)
Customization:
Customized logo (Min. Order: 500 sets),Customized packaging (Min. Order: 500 sets),Graphic customization (Min. Order: 500 sets)
Brand Name:
Grahowlet
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Viewing Angle
89/89/89/89
Operating System
XP Win7 8 Android Linux etc
Brightness
300cd/m2
Touch panel
Projected Capacitive Multi Touch Panle
Shipping ways
DHL EMS UPS TNT FEDEX
Panel Type
IPS LCD Panel
Touch controller
EETI
Touch points
10 Points
Structure
PCAP(Glass+Glass)+TFT
Product name
IPS lcd display panel 13.3 inch PCAP touch screen with EDP interface
Place of Origin
Zhejiang, China
Interface Type
usb, IIC/RS232/EDP/HMI/VGA
Type
Capacitive
Products Status
New
Private Mold
Yes
After-sales Service
Call Center and on-line Technical Support
Aspect Ratio
16:9
Series
For Business
Package
Yes
Color
Black
Warranty(Year)
1-Year
IPS lcd display panel 13.3 inch PCAP touch screen with EDP interface
Customized Solution
Grahowlet- China P-CAP & TFT Manufacturer
• PCAP size from 1.3”-65”
• PCAP & LCD module size: 1.3”-32”
• Optical Bonding service : 1.3”-21.5”
• HDMI & VGA T-CON Board available
• IIC-USB interface Bridge board available
•CTP can be Customized with cover glass surface treatment process AG(anti-glare), AR(anti-reflective), AF(anti-fingerprint)
• Support touch with 12mm cover glass.
• Support touch with pool of water.
• Support touch with 5mm gloves.
• Custom Highlight TFT (Up to 2300cd/㎡)
• Support operating temperature: -40℃-85℃.
>>>Contact us to get your individual customized solution!!<<<
• PCAP & LCD module size: 1.3”-32”
• Optical Bonding service : 1.3”-21.5”
• HDMI & VGA T-CON Board available
• IIC-USB interface Bridge board available
•CTP can be Customized with cover glass surface treatment process AG(anti-glare), AR(anti-reflective), AF(anti-fingerprint)
• Support touch with 12mm cover glass.
• Support touch with pool of water.
• Support touch with 5mm gloves.
• Custom Highlight TFT (Up to 2300cd/㎡)
• Support operating temperature: -40℃-85℃.
>>>Contact us to get your individual customized solution!!<<<
Product Description
MODULE PRODUCT DETAILS
PCAP(projected capacitive )
Light Transmittance:≥85%
Surface Hardness:≥6H
Interface Type:USB/IIC
Controller IC:EETI
Touch Points:1-10 Points
Power Supply Voltage:5V
Structure:Glass+Glass
Surface Hardness:≥6H
Interface Type:USB/IIC
Controller IC:EETI
Touch Points:1-10 Points
Power Supply Voltage:5V
Structure:Glass+Glass
TFT(LCD DISPLAY)
Resolution:1920x1080
Interface Type:EDP/HDMI/VGA
Luminance:300 cd/m²
Viewing Angle:ALL
Interface Type:EDP/HDMI/VGA
Luminance:300 cd/m²
Viewing Angle:ALL
Related Products
We can provide USB controller and HDMI/VGA driver board.
If you didn't find the suit one, Just tell us your requirements, so i could recommended you more suitable products.Please contact us.
Application

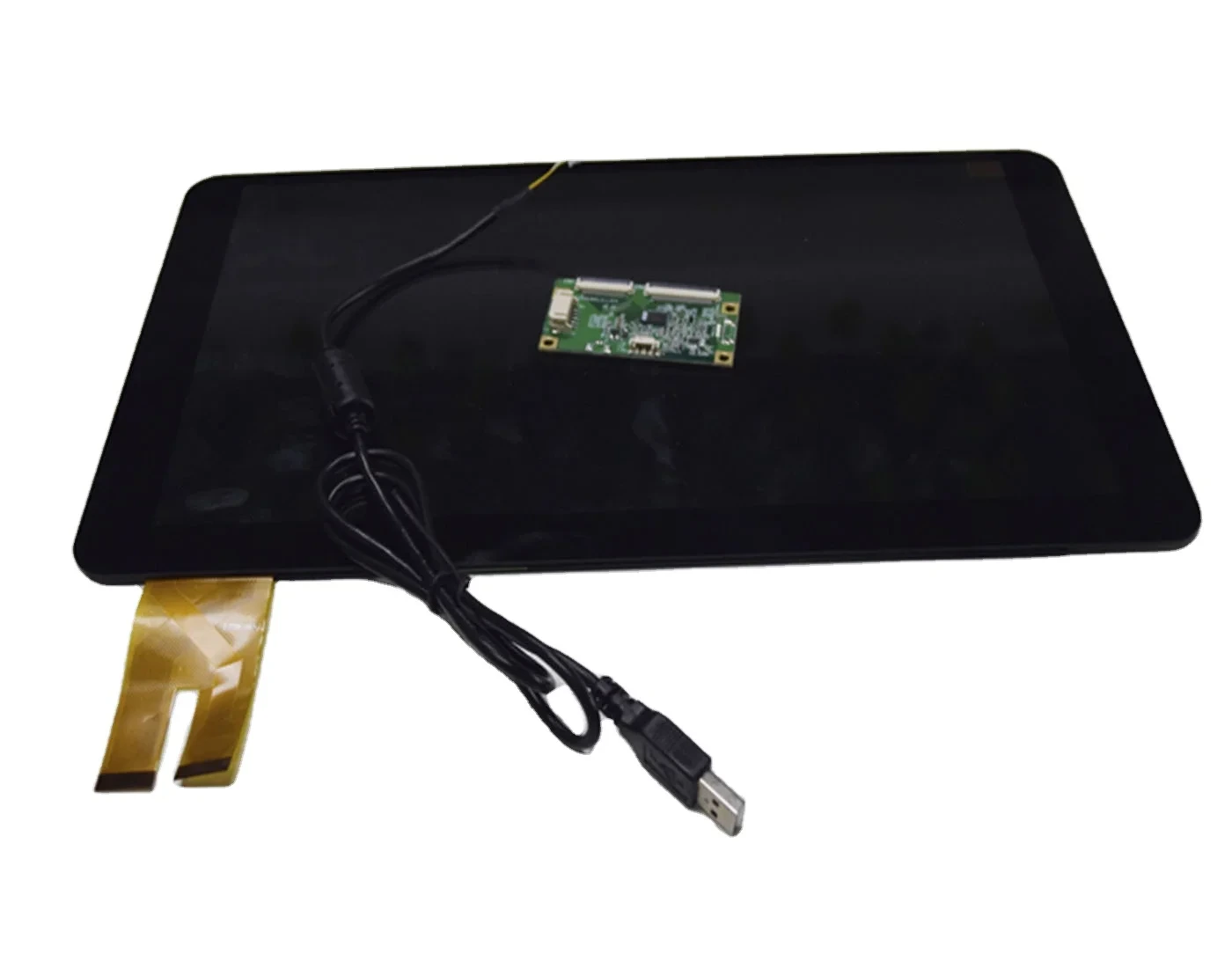

If you want USB interface, we can supply IIC to USB Bridgeboard
1.Support Touch with glove of all materials and thickness with 6mm
2.Support Touch with water/brine
3.Cover glass Support -8mm thickness--explosion-proof
4.Cover glass surface treatment--AG, AR, AF
Anti Glare (AG) processing could eliminate screen surface mirror problem
through converting direct light to diffuse light on the touch screen.
AR processing means adding a type of coating that could reduce reflected light on the cover
glass,which dereases screen reflection and increases visual effects
significantly in the sun.
Our Service
programe evsluation | 1 to 2 morking days | |
Drawings | 2 to 3 working days | |
Customized products | 3 to 4 weeks(after drawings confirmed) | |
Mass Production delivery | 4 to 6 weeks | |
Software debugging | ||
Capacity | 100K per month(10.1 inches as a reference) | |
Process capability | G+G, G+F+F, shielding process, overall module joint process(Optical Bonding)(maximum 65 ") Cover glass surface treatment AR, AG, AF | |
Technical support | Engineers to provide door-to-door or remote access service within 24 hours | |
Stable supply chain for at least 3 years guarantee | ||
One year warranty time for all of our products | ||
Quality Assurance
Quality Control: Full-inspection of Function and Appearance by OQC
Efficient Customer Service : respond to quality complaint and returns in one day
Reliability Test: high and low temperature storage test, cold and hot shock test, ESD servo motor disturbance test, etc.
Packing & Delivery
FAQ
Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q:How long is the warranty time for your products?
A:Normally 1 year warranty without damaged by people actions like misuse.It depends on different products.
