Iic/usb Pcap 10.4 Inch Capacitive Touch Glass Panel With Usb Interface
5.0
Model Number:
HX1041803
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-1(pieces):7(days),>1(pieces):To be negotiated(days)
Customization:
Customized logo (Min. Order: 500 sets),Customized packaging (Min. Order: 500 sets),Graphic customization (Min. Order: 500 sets)
Brand Name:
Grahowlet
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Touch Screen
projected capacitive touch panel
Interface
IIC/USB
Active Area
212.00(W)x159.20(H) mm
Outline Dimension
224.20(W)x175.10(H)x2.40(D) mm
SIZE
10.4 inch
Operating System
XP Win7 8 Android Linux
Application
Industrial, Industrial Application
Shipping ways
UPS.FEDEX.DHL Etc
Touch points
10 Points
Structure
Glass+Glass
Product name
IIC/USB PCAP 10.4 inch capacitive touch glass panel with USB interface
Place of Origin
Zhejiang, China
Type
Capacitive
IIC/USB PCAP 10.4 inch capacitive touch glass panel with USB interface
Product Description
Customize CTP/CTP+ LCD DISPLAY 1.3-65 inch
Full range of standard product in stock (no need customization)
Model Number | HX1041803 V1.0 |
Brand | Grahowlet |
Size | 10.4 inch |
Interface Type | IIC/USB |
Structure | G+G |
Controller IC | Cypress |
Touch Points | 10 points |
Transparency | ≥85% |
Surface Hardness | ≥6H |
Operating Environment | -20℃ ~ 70℃,≤85% RH |
Storage Environment | -30℃ ~ 80℃,≤85% RH |
Power Supply Voltage | 2.8V~3.3V |
Module Size | 224.20(W)x175.10(H)x2.40(D) mm |
Viewing Area | 212.00(W)x159.20(H) mm |
Support Systems | Windows/Android/Linux etc. |
Warranty | 1 year |
Related Products
We can provide USB controller and HDMI/VGA driver board.
If you didn't find the suit one, Just tell us your requirements, so i could recommended you more suitable products.Please contact us.
Application

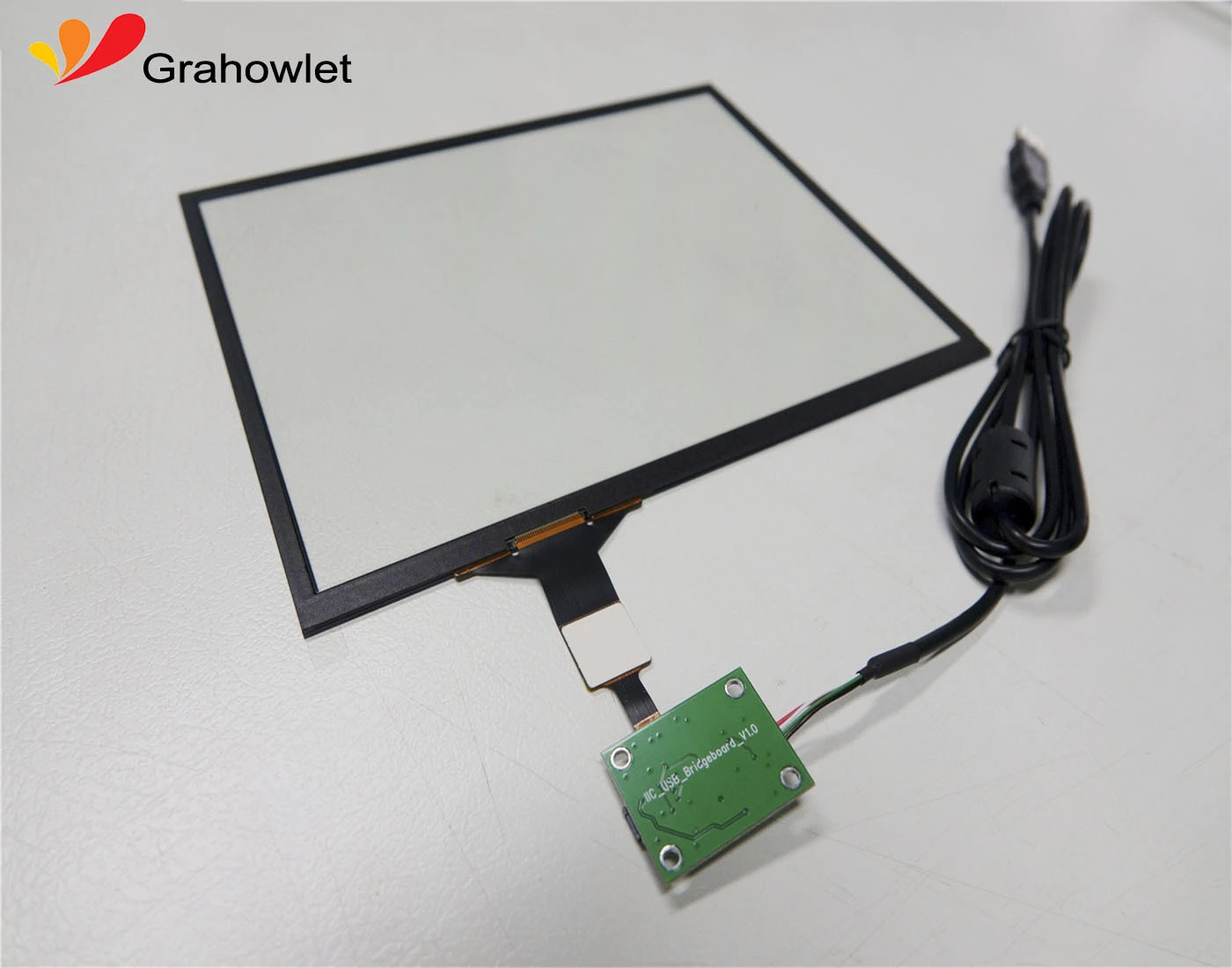

If you want USB interface, we can supply IIC to USB Bridgeboard
1.Support Touch with glove of all materials and thickness with 6mm
2.Support Touch with water/brine
3.Cover glass Support -8mm thickness--explosion-proof
4.Cover glass surface treatment--AG, AR, AF
Anti Glare (AG) processing could eliminate screen surface mirror problem
through converting direct light to diffuse light on the touch screen.
AR processing means adding a type of coating that could reduce reflected light on the cover
glass,which dereases screen reflection and increases visual effects
significantly in the sun.
Our Service
programe evsluation | 1 to 2 morking days | |
Drawings | 2 to 3 working days | |
Customized products | 3 to 4 weeks(after drawings confirmed) | |
Mass Production delivery | 4.3 to 5 weeks | |
Software debugging | ||
Capacity | 100K per month(10.1 inches as a reference) | |
Process capability | G+G/G+F+F/G+F/P+F Structure,shielding process, overall module joint process(Optical Bonding/Air Bonding) ,Cover glass surface treatment AR, AG, AF etc | |
Technical support | Engineers to provide door-to-door or remote access service within 24 hours | |
Stable supply chain for at least 3~5 years guarantee | ||
One year warranty time for all of our products | ||
Packing&Shipping
FAQ
Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong
technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q:How long is the warranty time for your products?
A:Normally 1 year warranty without damaged by people actions like misuse.It depends on different products.
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong
technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q:How long is the warranty time for your products?
A:Normally 1 year warranty without damaged by people actions like misuse.It depends on different products.
