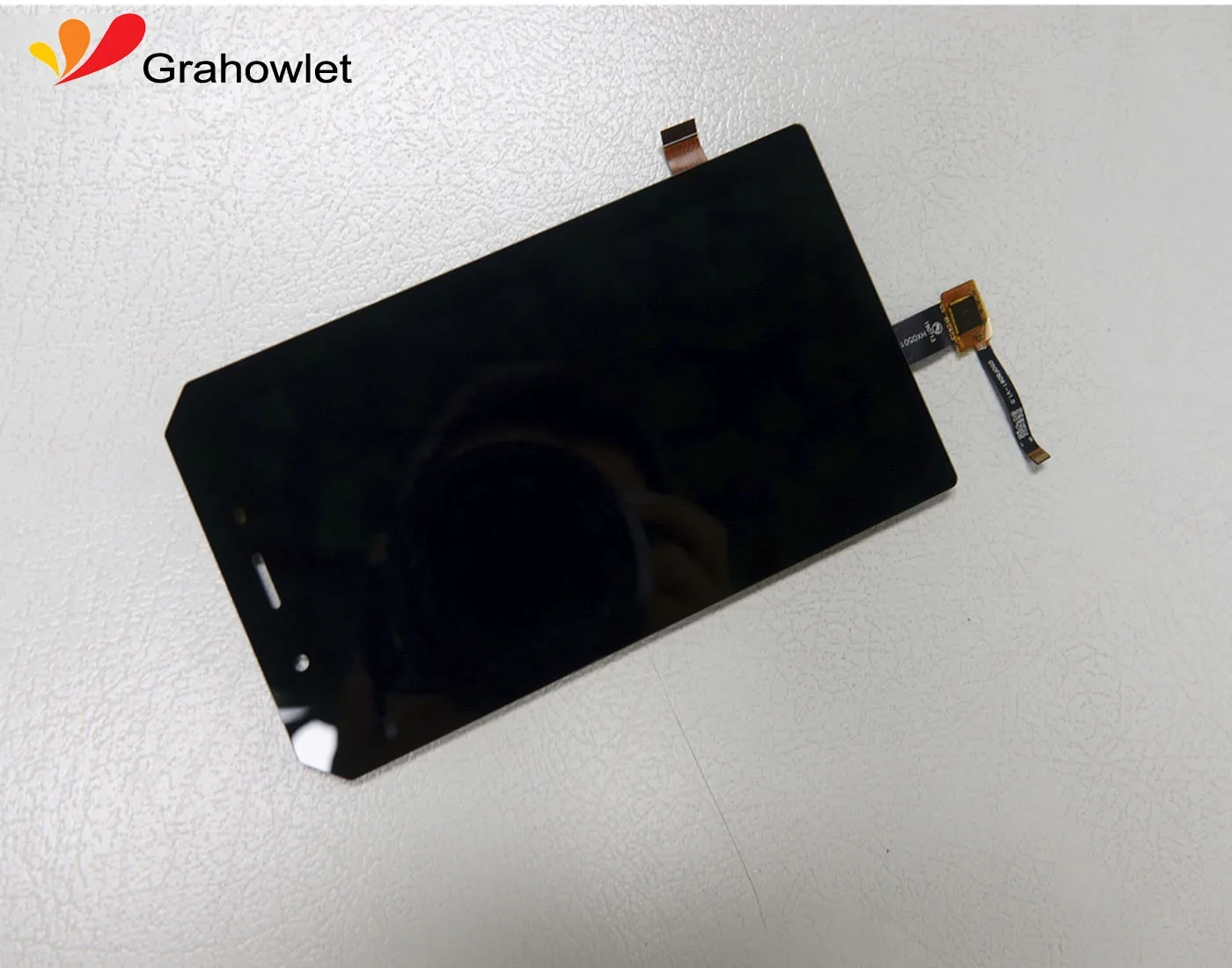

Iic/usb 5 Inch Capacitive Tft Lcd Touch Screen Display Module With 720x1280 Resolution
• PCAP & LCD module size: 1.3”-32”
• Optical Bonding service : 1.3”-21.5”
• HDMI & VGA T-CON Board available
• IIC-USB interface Bridge board available
•CTP can be Customized with cover glass surface treatment process AG(anti-glare), AR(anti-reflective), AF(anti-fingerprint)
• Support touch with 12mm cover glass.
• Support touch with pool of water.
• Support touch with 5mm gloves.
• Custom Highlight TFT (Up to 2300cd/㎡)
• Support operating temperature: -40℃-85℃.
>>>Contact us to get your individual customized solution!!<<<
Model Number | HX0501808 |
Brand | Grahowlet |
Size | 5.0 inch |
Operating Temperature | -10℃ ~ 60℃ |
Storage Temperature | -20℃ ~ 70℃ |
Outline Dimension | 76.26(W)x136.30(H)x2.99(D) mm |
Viewing Area | 62.70(W)x111.00(H) mm |
Active Area | 62.10(W)x110.40(H) mm |
Support Systems | Windows/Android/Linux etc. |
Warranty | 1 year |
PCAP Interface Type | IIC/USB |
Structure | G+F+F |
Controller IC | GT5663 |
Touch Points | 10 points |
Transparency | ≥85% |
Surface Hardness | ≥6H |
Power Supply Voltage | 1.8V ~ 2.8V |
Resolution | 720*1280 |
TFT Interface Type | MIPI |
Luminance | 500 cd/m² |
Viewing Angle | ALL |
We also sell USB controller , " MIPI to HDMI " bridge board and HDMI/VGA driver board.
If you didn't find the suit one, Just tell us your requirements, so i could recommended you more suitable products.Please contact us.
If you want USB interface, we can supply IIC to USB Bridgeboard
GLOVE FUNCTION
Support gloves made of various materials such as nylon,latex,
cotton,plush and leather and of different thickness,6mm the thickest.
WATER FUNCTION
Support touch with water,oil,
oil-water mixture and brine
THICKNESS
Support normal touch with thick cover like tempered glass,8mmm the thickest
as G + G, G + F (G + F + F ),P + G, etc. and various technical support programs such as Cypress , Atmel, EETI, FocalTech, Goodix etc. according to different application environments. We provides solutions that match all customers’ touch screen needs and create products based on multiple technologies. We are committed to supply global customers with first-class products and professional technical services in the touch industries. Our products are of high stability and anti-interference performance and used in various industries with complicated and difficult conditions.
programe evsluation | 1 to 2 morking days | |
Drawings | 2 to 3 working days | |
Customized products | 3 to 4 weeks(after drawings confirmed) | |
Mass Production delivery | 4 to 6 weeks | |
Software debugging | ||
Capacity | 100K per month(10.1 inches as a reference) | |
Process capability | G+G, G+F+F, shielding process, overall module joint process(Optical Bonding)(maximum 65 ") Cover glass surface treatment AR, AG, AF | |
Technical support | Engineers to provide door-to-door or remote access service within 24 hours | |
Stable supply chain for at least 3 years guarantee | ||
One year warranty time for all of our products | ||
Quality Assurance
Quality Control: Full-inspection of Function and Appearance by OQC
Efficient Customer Service : respond to quality complaint and returns in one day
Reliability Test: high and low temperature storage test, cold and hot shock test, ESD servo motor disturbance test, etc.
Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q:How long is the warranty time for your products?
A:Normally 1 year warranty without damaged by people actions like misuse.It depends on different products.
Grahowlet is a professional manufacturer of capacitive touch screen & LCD Touch monitors, with low power consumption, High Sensitivity, High resolution.
