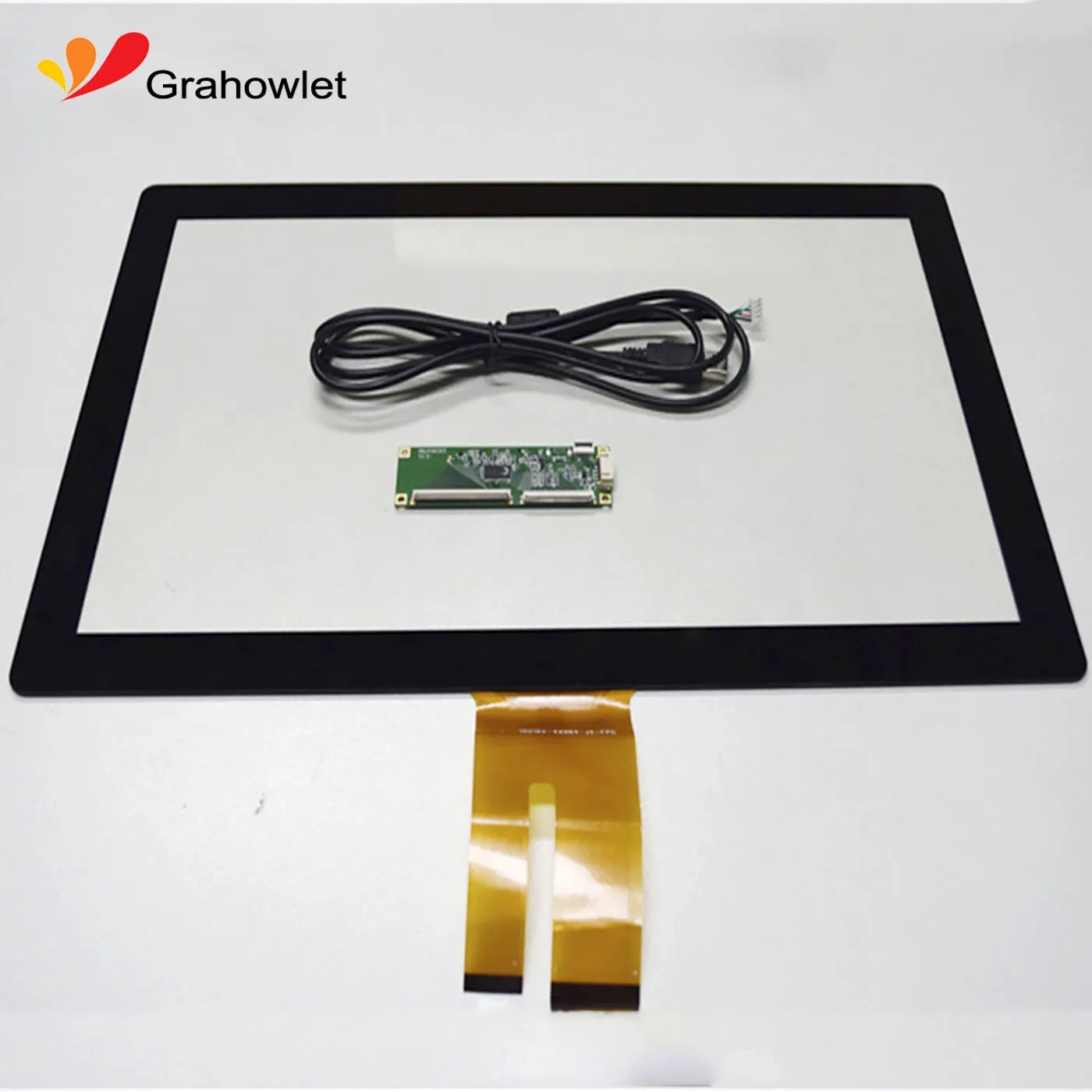

Hx1851701 Pcap(projected Capacitive) 18.5 Inch Industrial Touch Screen Panel,Multi Touch Points,Usb Tonch Controller Board 1

Hx1851701 Pcap(projected Capacitive) 18.5 Inch Industrial Touch Screen Panel,Multi Touch Points,Usb Tonch Controller Board 2

Hx1851701 Pcap(projected Capacitive) 18.5 Inch Industrial Touch Screen Panel,Multi Touch Points,Usb Tonch Controller Board 3

Hx1851701 Pcap(projected Capacitive) 18.5 Inch Industrial Touch Screen Panel,Multi Touch Points,Usb Tonch Controller Board 4

Hx1851701 Pcap(projected Capacitive) 18.5 Inch Industrial Touch Screen Panel,Multi Touch Points,Usb Tonch Controller Board 5

Hx1851701 Pcap(projected Capacitive) 18.5 Inch Industrial Touch Screen Panel,Multi Touch Points,Usb Tonch Controller Board 6

Hx1851701 Pcap(projected Capacitive) 18.5 Inch Industrial Touch Screen Panel,Multi Touch Points,Usb Tonch Controller Board 7

Hx1851701 Pcap(projected Capacitive) 18.5 Inch Industrial Touch Screen Panel,Multi Touch Points,Usb Tonch Controller Board

Shipping:

Express · Ocean freight · Land freight · Air freight

Place of Origin:

China

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Customization:

Customized logo (Min. Order: 100 sets),Customized packaging (Min. Order: 100 sets),Graphic customization (Min. Order: 100 sets),thickcover lens, waterproof, glove touch .. (Min. Order: 100 sets)

Brand Name:

Grahowlet

Inquiry

Write a Review

input must not exceed 280 in length!

name

Please enter a valid email address!

input must not exceed 280 in length!

phone

input must not exceed 280 in length!

company name

textarea must not exceed 65530 in length!

content

Power Supply Voltage

USB 5V

Viewing Area

525.50(W)x297.00(H) mm

Touch Screen

projected capacitive multi touch screen panel

Operating Temperature

-20℃ ~ 70℃,≤85% RH

Outline Dimension

575.50(W)x358.00(H)x2.40(D) mm

SIZE

18.5 inch

Operating System

XP/Win7/win8/win10/Android/Linux etc

Touch controller

ILITEK

Structure

Glass+Glass

Product name

PCAP(projected capacitive) 18.5 inch industrial touch screen panel

Place of Origin

Zhejiang, China

Interface Type

usb, IIC/RS232

Type

Capacitive

Products Status

New

Private Mold

Yes

After-sales Service

Call Center and on-line Technical Support

Aspect Ratio

16:9

Series

For Business

Package

Yes

Color

Black

Warranty(Year)

1-Year

HX1851701 PCAP(projected capacitive) 18.5 inch industrial touch screen panel,

multi touch points,usb tonch controller board

Product Description

Customize PCAP/PCAP+ LCD DISPLAY 1.3-65 inch

Full range of standard product in stock (no need customization)

PCAP(projected capacitive)

Model Number:HX1851701
Size:18.5 inch
Operating Temperature:-20℃ ~ 70℃

Storage Temperature:-30℃ ~ 80℃
OD:460.00(W)x283.00(H)x3.10(D) mm
Viewing Area:410.80(W)x231.40(H) mm
Support Systems:Windows/Android/Linux etc.

Hx1851701 Pcap(projected Capacitive) 18.5 Inch Industrial Touch Screen Panel,Multi Touch Points,Usb Tonch Controller Board 10

Light Transmittance:≥85%
Surface Hardness:≥6H
Interface Type:USB/IIC/RS232
Controller IC : ILITEK

Structure:Glass+Glass
Touch Points:1-10 Points
Power Supply Voltage:5V

Hx1851701 Pcap(projected Capacitive) 18.5 Inch Industrial Touch Screen Panel,Multi Touch Points,Usb Tonch Controller Board 11

TFT LCD TOUCH SCREEN

Resolution:1366x768/1920X1080
Interface Type:LVDS/HDMI/VGA
Luminance:250 cd/m²
Viewing Angle:45/45/25/40
Warranty:1 year

Industrial Control

Hx1851701 Pcap(projected Capacitive) 18.5 Inch Industrial Touch Screen Panel,Multi Touch Points,Usb Tonch Controller Board 14

Medical Equipment

Hx1851701 Pcap(projected Capacitive) 18.5 Inch Industrial Touch Screen Panel,Multi Touch Points,Usb Tonch Controller Board 15

Intelligent Household Industry

Hx1851701 Pcap(projected Capacitive) 18.5 Inch Industrial Touch Screen Panel,Multi Touch Points,Usb Tonch Controller Board 16

Outdoor Equipment

Hx1851701 Pcap(projected Capacitive) 18.5 Inch Industrial Touch Screen Panel,Multi Touch Points,Usb Tonch Controller Board 17

Hx1851701 Pcap(projected Capacitive) 18.5 Inch Industrial Touch Screen Panel,Multi Touch Points,Usb Tonch Controller Board 18

Bonding(PCAP and TFT)

Hx1851701 Pcap(projected Capacitive) 18.5 Inch Industrial Touch Screen Panel,Multi Touch Points,Usb Tonch Controller Board 19

Hx1851701 Pcap(projected Capacitive) 18.5 Inch Industrial Touch Screen Panel,Multi Touch Points,Usb Tonch Controller Board 20

1.Support Touch with glove of all materials and thickness with 6mm

Hx1851701 Pcap(projected Capacitive) 18.5 Inch Industrial Touch Screen Panel,Multi Touch Points,Usb Tonch Controller Board 21

2.Support Touch with water/brine

Hx1851701 Pcap(projected Capacitive) 18.5 Inch Industrial Touch Screen Panel,Multi Touch Points,Usb Tonch Controller Board 22

3.Cover glass Support -8mm thickness--explosion-proof

Hx1851701 Pcap(projected Capacitive) 18.5 Inch Industrial Touch Screen Panel,Multi Touch Points,Usb Tonch Controller Board 23

4.Cover glass surface treatment--AG, AR, AF

Hx1851701 Pcap(projected Capacitive) 18.5 Inch Industrial Touch Screen Panel,Multi Touch Points,Usb Tonch Controller Board 24

Anti Glare (AG) processing could eliminate screen surface mirror problem

through converting direct light to diffuse light on the touch screen.

Hx1851701 Pcap(projected Capacitive) 18.5 Inch Industrial Touch Screen Panel,Multi Touch Points,Usb Tonch Controller Board 25

Anti-Reflective(AR) processing means adding a type of coating that could reduce

reflected light on the cover glass,which dereases screen reflection

and increases visual effects significantly in the sun.

Hx1851701 Pcap(projected Capacitive) 18.5 Inch Industrial Touch Screen Panel,Multi Touch Points,Usb Tonch Controller Board 26

Anti-Fingerprint (AF) processing is adding on the cover glass a kind of coating that could increases surface smoothness,reduces surface aliding resistance,residual water and fingerprints on the surface significantly and improves touch feeling and clarity.

Our Service

programe evsluation	1 to 2 morking days
Drawings	2 to 3 working days
Customized products	3 to 4 weeks(after drawings confirmed)
Mass Production delivery	4 to 6 weeks
Software debugging
Capacity	100K per month(each type)
Process capability	G+G, G+F+F, shielding process, overall module joint process(Optical Bonding)(maximum 65 ") Cover glass surface treatment AR, AG, AF
Technical support	Engineers to provide door-to-door or remote access service within 24 hours
Stable supply chain for at least 3 years guarantee
One year warranty time for all of our products

Certifications

Hx1851701 Pcap(projected Capacitive) 18.5 Inch Industrial Touch Screen Panel,Multi Touch Points,Usb Tonch Controller Board 27

Hx1851701 Pcap(projected Capacitive) 18.5 Inch Industrial Touch Screen Panel,Multi Touch Points,Usb Tonch Controller Board 28

Hx1851701 Pcap(projected Capacitive) 18.5 Inch Industrial Touch Screen Panel,Multi Touch Points,Usb Tonch Controller Board 29

Packing & Delivery

Hx1851701 Pcap(projected Capacitive) 18.5 Inch Industrial Touch Screen Panel,Multi Touch Points,Usb Tonch Controller Board 30

FAQ

Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q:How long is the warranty time for your products?
A:Normally 1 year warranty without damaged by people actions like misuse.It depends on different products.
