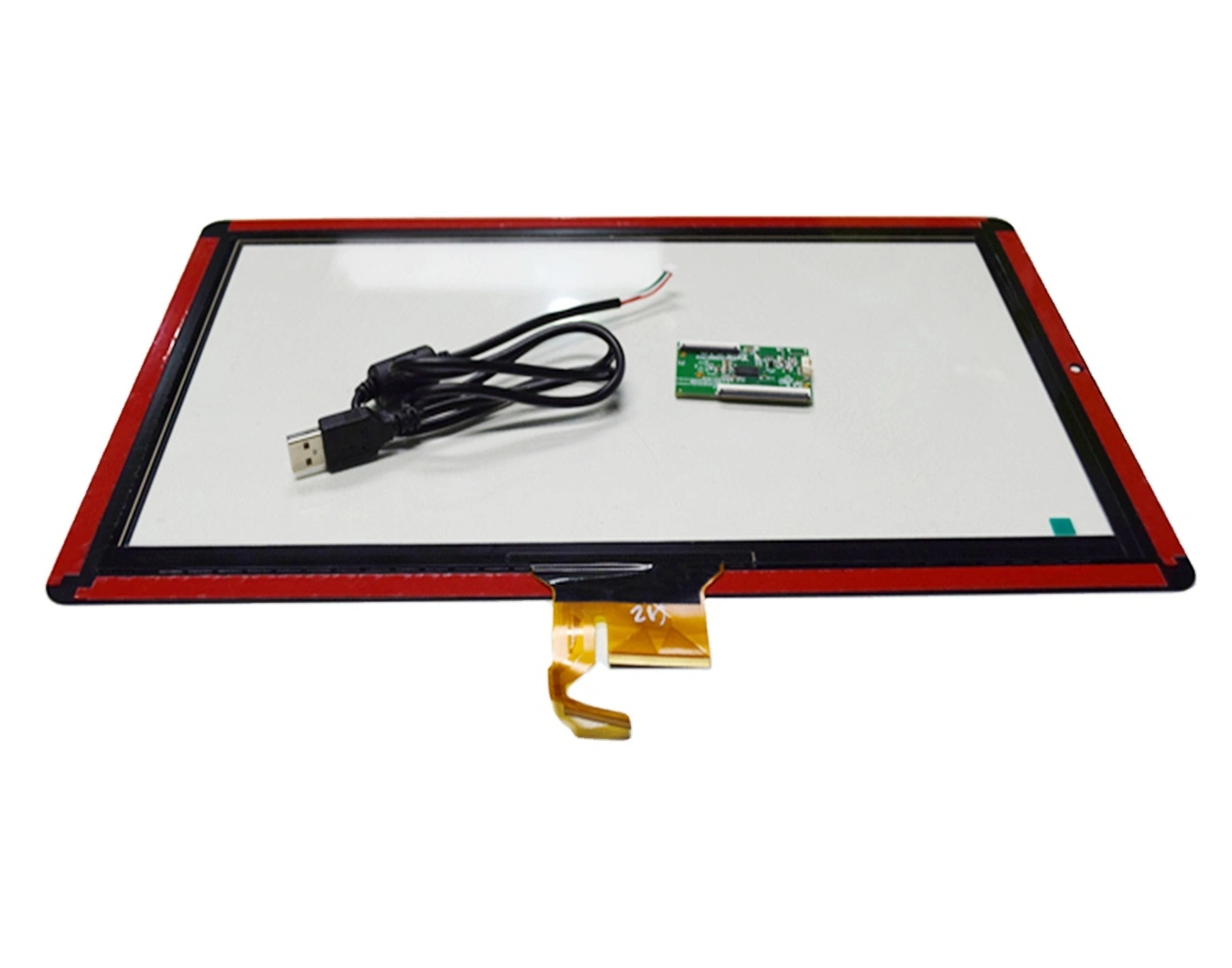

Hx1561708 Usb Pcap(projected Capacitive) 15.6 Inch Touch Panel With Usb Touch Controller Board 1

Hx1561708 Usb Pcap(projected Capacitive) 15.6 Inch Touch Panel With Usb Touch Controller Board 2

Hx1561708 Usb Pcap(projected Capacitive) 15.6 Inch Touch Panel With Usb Touch Controller Board 3

Hx1561708 Usb Pcap(projected Capacitive) 15.6 Inch Touch Panel With Usb Touch Controller Board 4

Hx1561708 Usb Pcap(projected Capacitive) 15.6 Inch Touch Panel With Usb Touch Controller Board 5

Hx1561708 Usb Pcap(projected Capacitive) 15.6 Inch Touch Panel With Usb Touch Controller Board 6

Hx1561708 Usb Pcap(projected Capacitive) 15.6 Inch Touch Panel With Usb Touch Controller Board 7

Hx1561708 Usb Pcap(projected Capacitive) 15.6 Inch Touch Panel With Usb Touch Controller Board

Model Number:

HX1561708

Shipping:

Support Sea freight

Place of Origin:

China

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-1(pieces):7(days),>1(pieces):To be negotiated(days)

Customization:

Customized logo (Min. Order: 100 sets),Customized packaging (Min. Order: 100 sets),Graphic customization (Min. Order: 100 sets)

Brand Name:

Grahowlet

Inquiry

Write a Review

input must not exceed 280 in length!

name

Please enter a valid email address!

input must not exceed 280 in length!

phone

input must not exceed 280 in length!

company name

textarea must not exceed 65530 in length!

content

Support

USB 5.0V

Drive IC

ILITEK

Features

Touch with glass/gloves

Width

243.30mm

Diagonal Screen Size

15.6"

Length

391.20mm

Interface

USB/IIC/RS232, USB/IIC/rs232

SIZE

15.6 inch

Application

Industrial, Industrial Application

Touch panel

Projected Capacitive Touch Screen Panel

Shipping ways

UPS.FEDEX.DHL ETC

Touch controller

ILITEK

Touch points

10 Points

Structure

Glass+Glass+FPC

Product name

15.6 inch touch panel with USB touch controller board

Place of Origin

Zhejiang, China

Type

Capacitive

HX1561708 USB PCAP(projected capacitive) 15.6 inch touch panel

with USB touch controller board

Product Description

Customize CTP/CTP+ LCD DISPLAY 1.3-65 inch
Full range of standard product in stock (no need customization)
Need to be reminded: Standard products haven't special functions for the time being. If your product needs special features,such as: waterproof, explosion-proof, touch with gloves, etc, please feel free to contact me.Thanks!

Hx1561708 Usb Pcap(projected Capacitive) 15.6 Inch Touch Panel With Usb Touch Controller Board 8

Model Number	HX1561708	Surface Hardness	≥6H
Brand	Grahowlet	Operating Environment	-10℃ ~ 60℃,≤85% RH
Size	15.6 inch	Storage Environment	-20℃ ~ 70℃,≤85% RH
Interface Type	USB/IIC	Power Supply Voltage	USB 5V
Structure	Glass+Glass	Outline Dimension	391.20(W)x243.30(H)x2.05(D) mm
Controller IC	ILITEK	Viewing Area	344.16(W)x193.59(H) mm
Touch Points	10 points	Support Systems	Windows/Android/Linux etc.
Transparency	≥85%	Warranty	1 year

Hx1561708 Usb Pcap(projected Capacitive) 15.6 Inch Touch Panel With Usb Touch Controller Board 9

Hx1561708 Usb Pcap(projected Capacitive) 15.6 Inch Touch Panel With Usb Touch Controller Board 10

Hx1561708 Usb Pcap(projected Capacitive) 15.6 Inch Touch Panel With Usb Touch Controller Board 11

Industrial Control

Hx1561708 Usb Pcap(projected Capacitive) 15.6 Inch Touch Panel With Usb Touch Controller Board 14

Medical Equipment

Hx1561708 Usb Pcap(projected Capacitive) 15.6 Inch Touch Panel With Usb Touch Controller Board 15

Intelligent Household Industry

Hx1561708 Usb Pcap(projected Capacitive) 15.6 Inch Touch Panel With Usb Touch Controller Board 16

Outdoor Equipment

Hx1561708 Usb Pcap(projected Capacitive) 15.6 Inch Touch Panel With Usb Touch Controller Board 17

Hx1561708 Usb Pcap(projected Capacitive) 15.6 Inch Touch Panel With Usb Touch Controller Board 18

Bonding(PCAP and TFT)

Hx1561708 Usb Pcap(projected Capacitive) 15.6 Inch Touch Panel With Usb Touch Controller Board 19

Hx1561708 Usb Pcap(projected Capacitive) 15.6 Inch Touch Panel With Usb Touch Controller Board 20

1.Support Touch with glove of all materials and thickness with 6mm

Hx1561708 Usb Pcap(projected Capacitive) 15.6 Inch Touch Panel With Usb Touch Controller Board 21

2.Support Touch with water/brine

Hx1561708 Usb Pcap(projected Capacitive) 15.6 Inch Touch Panel With Usb Touch Controller Board 22

3.Cover glass Support -8mm thickness--explosion-proof

Hx1561708 Usb Pcap(projected Capacitive) 15.6 Inch Touch Panel With Usb Touch Controller Board 23

4.Cover glass surface treatment--AG, AR, AF

Hx1561708 Usb Pcap(projected Capacitive) 15.6 Inch Touch Panel With Usb Touch Controller Board 24

Anti Glare (AG) processing could eliminate screen surface mirror problem

through converting direct light to diffuse light on the touch screen.

Hx1561708 Usb Pcap(projected Capacitive) 15.6 Inch Touch Panel With Usb Touch Controller Board 25

Anti-Reflective(AR) processing means adding a type of coating that could reduce

reflected light on the cover glass,which dereases screen reflection

and increases visual effects significantly in the sun.

Hx1561708 Usb Pcap(projected Capacitive) 15.6 Inch Touch Panel With Usb Touch Controller Board 26

Anti-Fingerprint (AF) processing is adding on the cover glass a kind of coating that could increases surface smoothness,reduces surface aliding resistance,residual water and fingerprints on the surface significantly and improves touch feeling and clarity.

Our Service

programe evsluation	1 to 2 morking days
Drawings	2 to 3 working days
Customized products	3 to 4 weeks(after drawings confirmed)
Mass Production delivery	4.3 to 5 weeks
Software debugging
Capacity	100K per month(10.1 inches as a reference)
Process capability	G+G/G+F+F/G+F/P+F Structure,shielding process, overall module joint process(Optical Bonding/Air Bonding) ,Cover glass surface treatment AR, AG, AF etc
Technical support	Engineers to provide door-to-door or remote access service within 24 hours
Stable supply chain for at least 3~5 years guarantee
One year warranty time for all of our products

Certifications

Hx1561708 Usb Pcap(projected Capacitive) 15.6 Inch Touch Panel With Usb Touch Controller Board 27

Hx1561708 Usb Pcap(projected Capacitive) 15.6 Inch Touch Panel With Usb Touch Controller Board 28

Hx1561708 Usb Pcap(projected Capacitive) 15.6 Inch Touch Panel With Usb Touch Controller Board 29

Packing & Delivery

Hx1561708 Usb Pcap(projected Capacitive) 15.6 Inch Touch Panel With Usb Touch Controller Board 30

FAQ

Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q:How long is the warranty time for your products?
A:Normally 1 year warranty without damaged by people actions like misuse.It depends on different products.
