12 years of experience in industrial touch screen R&D and manufacturing.

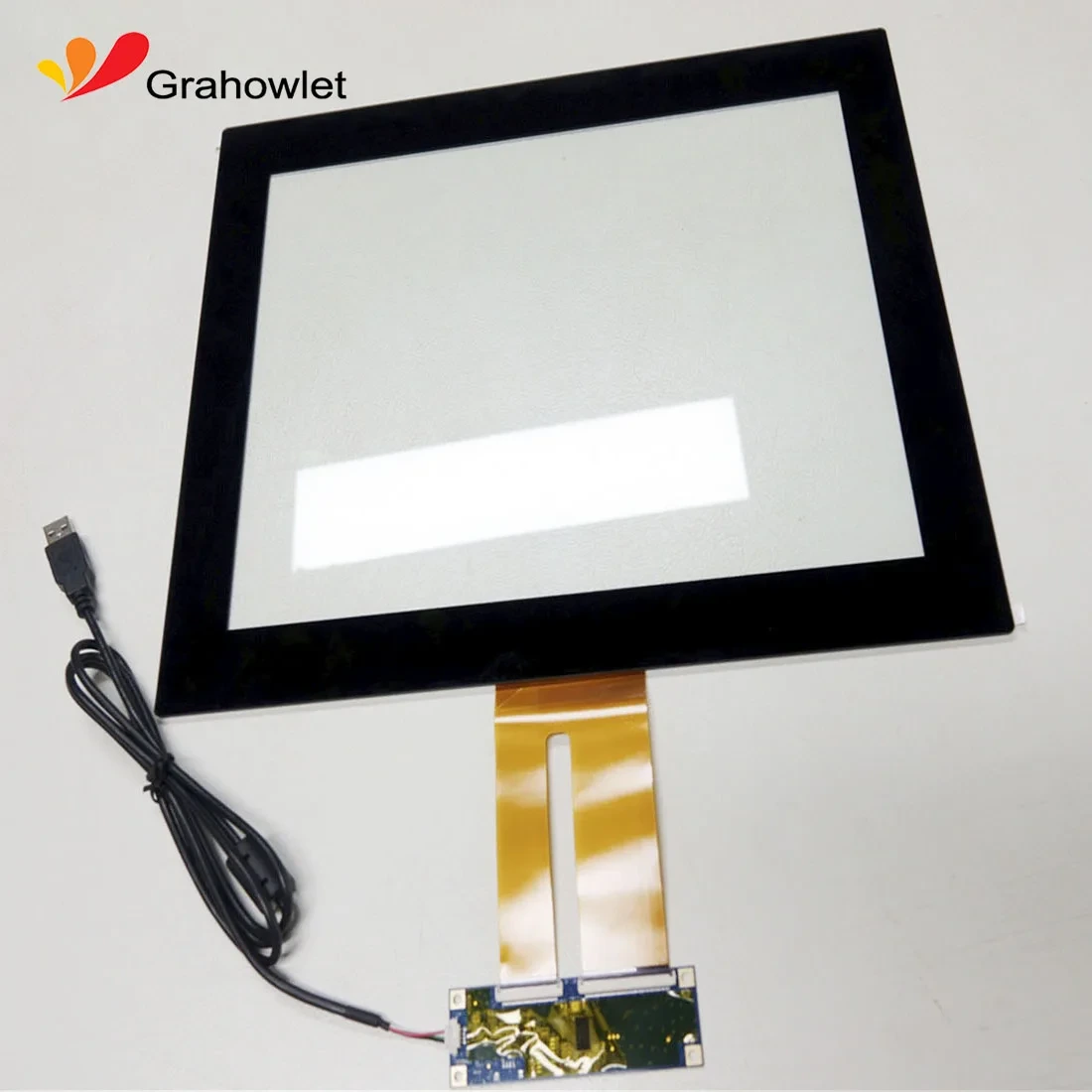

Hx1501802 Pcap(projected Capacitive) 15 Inch Industrial Usb Touch Screen Panel 4x3 Touch Glass
5.0
Model Number:
HX1501802
Shipping:
Express · Ocean freight · Land freight · Air freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Customization:
Customized logo (Min. Order: 100 sets),Customized packaging (Min. Order: 100 sets),Graphic customization (Min. Order: 100 sets)
Brand Name:
Grahowlet
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
stucture
Glass+Glass
Cover Glass
2mm
Drive IC
ILITEK
Features
touch with glass/gloves
Width
294.50mm
Diagonal Screen Size
15"
Length
365.00mm
Keywords
industrial touch panel
Power Supply Voltage
UBS 5.0 V
Touch Screen
projected capacitive touch screen panel
Interface
USB/IIC/RS232
Operating System
XP Win7 8 10 Android Linux
Application
Industrial, Industrial Application
Touch controller
ILITEK
Touch points
10 Points
Product name
PCAP(projected capacitive) 15 inch USB multi touch screen panel
Place of Origin
Zhejiang, China
Type
Capacitive
HX1501802 PCAP(projected capacitive) 15 inch industrial USB touch screen panel
4x3 touch glass
Certifications
Product Description
Customize PCAP/PCAP+ LCD DISPLAY 1.3-65 inch
Full range of standard product in stock (no need customization)
Model Number | HX1501802 V2.0 | Surface Hardness | ≥6H |
Brand | Grahowlet | Operating Environment | -20℃ ~ 70℃,≤85% RH |
Size | 15.0 inch | Storage Environment | -30℃ ~ 80℃,≤85% RH |
Interface Type | USB/IIC | Power Supply Voltage | USB 5V |
Structure | Glass+Glass | Outline Dimension | 365.00(W)x294.50(H)x2.90(D) mm |
Controller IC | ILITEK | Viewing Area | 306.40(W)x230.40(H) mm |
Touch Points | 10 points | Support Systems | Windows/Android/Linux etc. |
Transparency | ≥85% | Warranty | 1 year |
Related Products
We can provide USB controller and HDMI/VGA driver board.
If you didn't find the suit one, Just tell us your requirements, so i could recommended you more suitable products.Please contact us.
Application
Industrial Control
Medical Equipment
Intelligent Household Industry
Outdoor Equipment
Bonding(PCAP and TFT)
1.Support Touch with glove of all materials and thickness with 6mm
2.Support Touch with water/brine
3.Cover glass Support -8mm thickness--explosion-proof
4.Cover glass surface treatment--AG, AR, AF
Anti Glare (AG) processing could eliminate screen surface mirror problem
through converting direct light to diffuse light on the touch screen.
Anti-Reflective(AR) processing means adding a type of coating that could reduce
reflected light on the cover glass,which dereases screen reflection
and increases visual effects significantly in the sun.
Anti-Fingerprint (AF) processing is adding on the cover glass a kind of coating that could increases surface smoothness,reduces surface aliding resistance,residual water and fingerprints on the surface significantly and improves touch feeling and clarity.
Our Service
programe evsluation | 1 to 2 morking days | |
Drawings | 2 to 3 working days | |
Customized products | 3 to 4 weeks(after drawings confirmed) | |
Mass Production delivery | 4.3 to 5 weeks | |
Software debugging | ||
Capacity | 100K per month(10.1 inches as a reference) | |
Process capability | G+G/G+F+F/G+F/P+F Structure,shielding process, overall module joint process(Optical Bonding/Air Bonding) ,Cover glass surface treatment AR, AG, AF etc | |
Technical support | Engineers to provide door-to-door or remote access service within 24 hours | |
Stable supply chain for at least 3~5 years guarantee | ||
One year warranty time for all of our products | ||
Packing&Shipping
FAQ
Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong
technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q:How long is the warranty time for your products?
A:Normally 1 year warranty without damaged by people actions like misuse.It depends on different products.
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong
technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q:How long is the warranty time for your products?
A:Normally 1 year warranty without damaged by people actions like misuse.It depends on different products.
