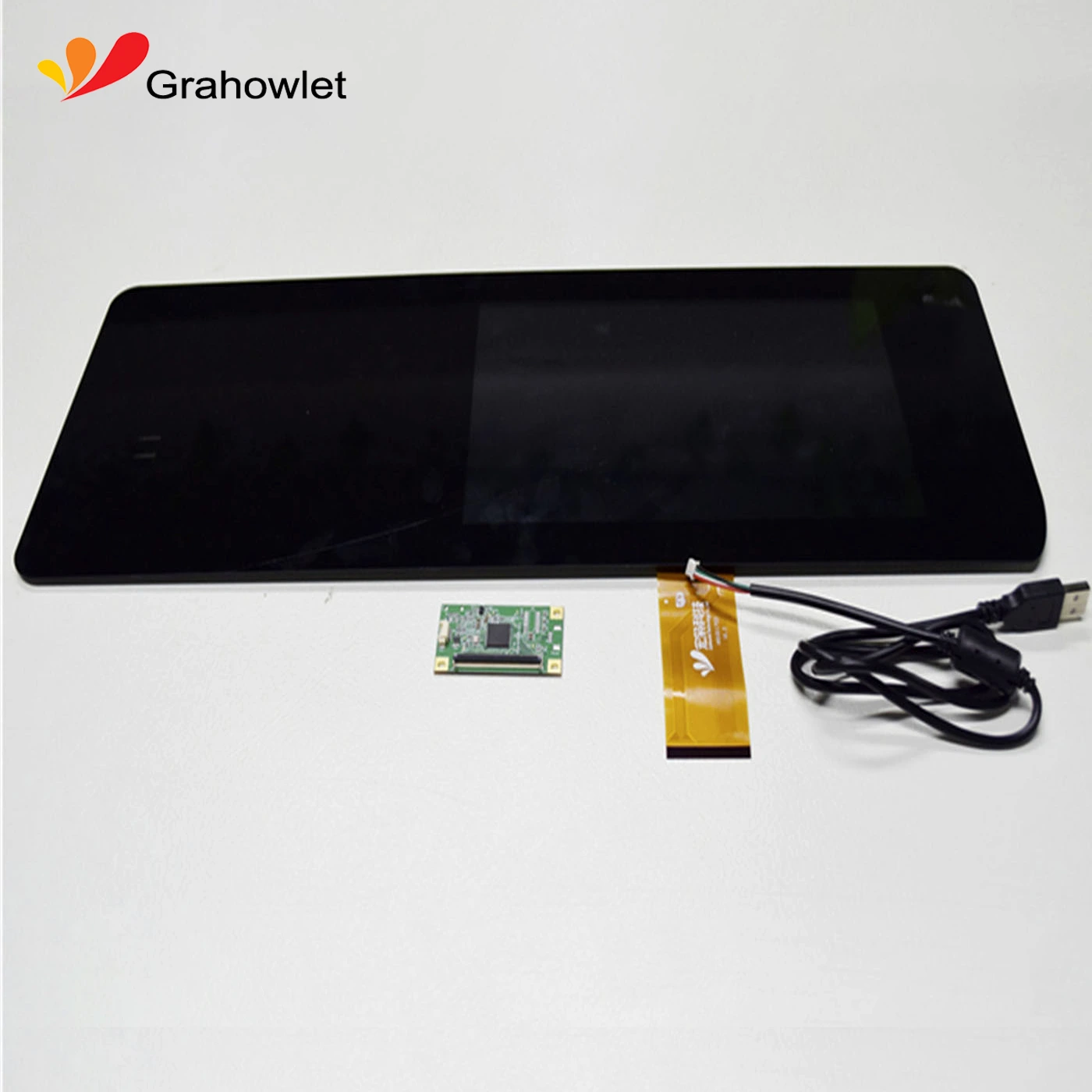

Hx1011706 Wide Pcap(projected Capacitive) 10.1 Inch Usb Multitouch Screen With Ips 1280x800 Tft Lcd Displays 1

Hx1011706 Wide Pcap(projected Capacitive) 10.1 Inch Usb Multitouch Screen With Ips 1280x800 Tft Lcd Displays 2

Hx1011706 Wide Pcap(projected Capacitive) 10.1 Inch Usb Multitouch Screen With Ips 1280x800 Tft Lcd Displays 3

Hx1011706 Wide Pcap(projected Capacitive) 10.1 Inch Usb Multitouch Screen With Ips 1280x800 Tft Lcd Displays 4

Hx1011706 Wide Pcap(projected Capacitive) 10.1 Inch Usb Multitouch Screen With Ips 1280x800 Tft Lcd Displays 5

Hx1011706 Wide Pcap(projected Capacitive) 10.1 Inch Usb Multitouch Screen With Ips 1280x800 Tft Lcd Displays 6

Hx1011706 Wide Pcap(projected Capacitive) 10.1 Inch Usb Multitouch Screen With Ips 1280x800 Tft Lcd Displays 7

Hx1011706 Wide Pcap(projected Capacitive) 10.1 Inch Usb Multitouch Screen With Ips 1280x800 Tft Lcd Displays

Shipping:

Express · Ocean freight · Land freight · Air freight

Place of Origin:

China

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Customization:

Customized logo (Min. Order: 100 sets),Customized packaging (Min. Order: 100 sets),Graphic customization (Min. Order: 100 sets)

Brand Name:

Grahowlet

Inquiry

Write a Review

input must not exceed 280 in length!

name

Please enter a valid email address!

input must not exceed 280 in length!

phone

input must not exceed 280 in length!

company name

textarea must not exceed 65530 in length!

content

TFT Interface

LVDS

warranty

12 Months

Keywords

capacitive touch screen module

Touch Screen

Capacitive Touch Optional)

Operating System

XP Win7 8 Android Linux etc.

Application

Industrial Application

Brightness

350 Cd/m2

Touch points

1-10 Points

Structure

PCAP(Glass+Glass)+TFT

Product name

wide PCAP 10.1 inch touch screen with IPS 1280x800 tft screens

Place of Origin

Zhejiang, China

Interface Type

usb, IIC/RS232/LVDS/HMI/VGA

Type

Capacitive

Products Status

New

Private Mold

Yes

After-sales Service

Call Center and on-line Technical Support

Aspect Ratio

16:9

Series

For Business

Package

Yes

Color

Black

Warranty(Year)

1-Year

HX1011706 wide PCAP(projected capacitive) 10.1 inch USB multitouch screen

with IPS 1280x800 tft lcd displays

Certifications

Hx1011706 Wide Pcap(projected Capacitive) 10.1 Inch Usb Multitouch Screen With Ips 1280x800 Tft Lcd Displays 9

Hx1011706 Wide Pcap(projected Capacitive) 10.1 Inch Usb Multitouch Screen With Ips 1280x800 Tft Lcd Displays 10

Product Description

Hx1011706 Wide Pcap(projected Capacitive) 10.1 Inch Usb Multitouch Screen With Ips 1280x800 Tft Lcd Displays 11

TPM	Product Name	HX1011706
		Brand	Grahowlet
		Size	10.1 inch
		Operating Temperature	-20℃ ～ 70℃
		Storage Temperature	-30℃ ～ 80℃
		Bonding workmanship	Air/Optical Bonding
		Outline Dimension	488.71(W)x182.61(H)x7.16(D)mm
		Viewing Area	217.96(W)x136.60(H) mm
		Active Area	216.96(W)x135.60(H) mm
		Support Systems	Windows/Android/Linux etc.
		Warranty	1 year
PCAP	CTP Number	HX1011706
		Interface Type	USB/IIC
		Structure	G+G
		Controller IC	Cypress
		Touch Points	10 Points
		Transparency	≥85%
		Surface Hardness	≥6H
		Power Supply Voltage	2.8V ~ 3.3V
TFT	TFT Number	M101NWWB R6
		Resolution	1280*800
		TFT Interface Type	LVDS/HDMI/VGA
		Luminance	350 cd/m²
		Viewing Angle	ALL

Hx1011706 Wide Pcap(projected Capacitive) 10.1 Inch Usb Multitouch Screen With Ips 1280x800 Tft Lcd Displays 12

Related Products

We can provide USB controller and HDMI/VGA driver board. If you didn't find the suit one, Just tell us your requirements, so i could recommended you more suitable products.Please contact us.

Application

Hx1011706 Wide Pcap(projected Capacitive) 10.1 Inch Usb Multitouch Screen With Ips 1280x800 Tft Lcd Displays 13

Hx1011706 Wide Pcap(projected Capacitive) 10.1 Inch Usb Multitouch Screen With Ips 1280x800 Tft Lcd Displays 14

Courier handheld terminal

Hx1011706 Wide Pcap(projected Capacitive) 10.1 Inch Usb Multitouch Screen With Ips 1280x800 Tft Lcd Displays 15

Portable medical machine

Hx1011706 Wide Pcap(projected Capacitive) 10.1 Inch Usb Multitouch Screen With Ips 1280x800 Tft Lcd Displays 16

Front loading Vehicle control system

Hx1011706 Wide Pcap(projected Capacitive) 10.1 Inch Usb Multitouch Screen With Ips 1280x800 Tft Lcd Displays 17

Industrial Data Detection Equipment

Hx1011706 Wide Pcap(projected Capacitive) 10.1 Inch Usb Multitouch Screen With Ips 1280x800 Tft Lcd Displays 18

Hx1011706 Wide Pcap(projected Capacitive) 10.1 Inch Usb Multitouch Screen With Ips 1280x800 Tft Lcd Displays 19

If you want USB interface, we can supply IIC to USB Bridgeboard Click here

Hx1011706 Wide Pcap(projected Capacitive) 10.1 Inch Usb Multitouch Screen With Ips 1280x800 Tft Lcd Displays 20

Hx1011706 Wide Pcap(projected Capacitive) 10.1 Inch Usb Multitouch Screen With Ips 1280x800 Tft Lcd Displays 21

1.Support Touch with glove of all materials and thickness with 6mm

Hx1011706 Wide Pcap(projected Capacitive) 10.1 Inch Usb Multitouch Screen With Ips 1280x800 Tft Lcd Displays 22

2.Support Touch with water/brine

Hx1011706 Wide Pcap(projected Capacitive) 10.1 Inch Usb Multitouch Screen With Ips 1280x800 Tft Lcd Displays 23

3.Cover glass Support -8mm thickness--explosion-proof

Hx1011706 Wide Pcap(projected Capacitive) 10.1 Inch Usb Multitouch Screen With Ips 1280x800 Tft Lcd Displays 24

4.Cover glass surface treatment--AG, AR, AF

Hx1011706 Wide Pcap(projected Capacitive) 10.1 Inch Usb Multitouch Screen With Ips 1280x800 Tft Lcd Displays 25

Anti Glare (AG) processing could eliminate screen surface mirror problem through converting

direct light to diffuse light on the touch screen.

Hx1011706 Wide Pcap(projected Capacitive) 10.1 Inch Usb Multitouch Screen With Ips 1280x800 Tft Lcd Displays 26

AR processing means adding a type of coating that could reduce reflected light on the cover

glass,which dereases screen reflection and increases visual effects

significantly in the sun.

Packing & Delivery

Hx1011706 Wide Pcap(projected Capacitive) 10.1 Inch Usb Multitouch Screen With Ips 1280x800 Tft Lcd Displays 27

FAQ

Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q:How long is the warranty time for your products?
A:Normally 1 year warranty without damaged by people actions like misuse.It depends on different products.
