12 years of experience in industrial touch screen R&D and manufacturing.

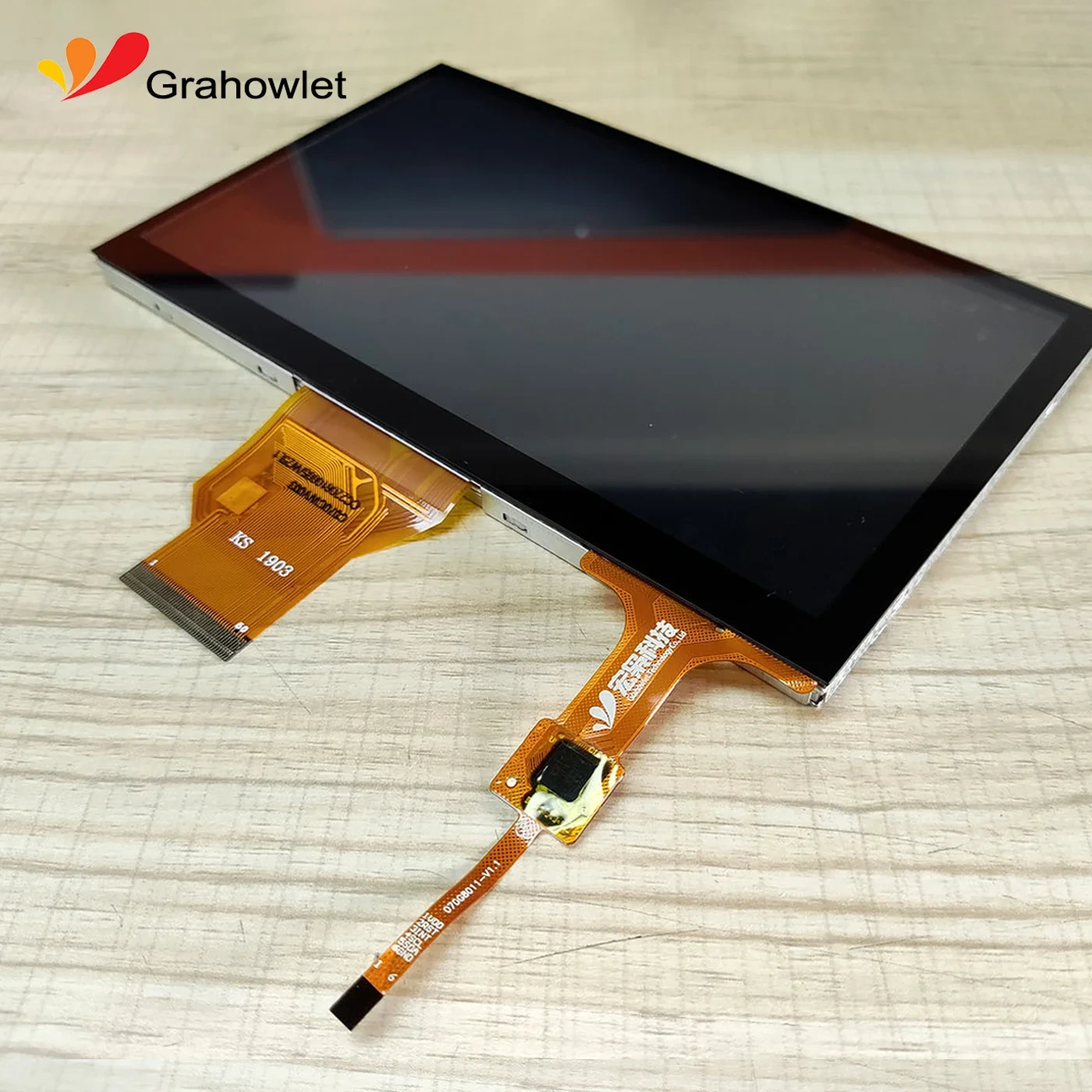

Hx070nl27-50nd-30c Outdoor Lcd Screen 7 Inch Capacitive Touch Displays
• PCAP & LCD module size: 1.3”-32”
• Optical Bonding service : 1.3”-21.5”
• HDMI & VGA T-CON Board available
• IIC-USB interface Bridge board available
•CTP can be Customized with cover glass surface treatment process AG(anti-glare), AR(anti-reflective), AF(anti-fingerprint)
• Support touch with 12mm cover glass.
• Support touch with pool of water.
• Support touch with 5mm gloves.
• Custom Highlight TFT (Up to 2300cd/㎡)
• Support operating temperature: -40℃-85℃.
>>>Contact us to get your individual customized solution!!<<<
Product Comparison | ||||||||||
TPM Number | HX0701840 | HX0701848 | HX0701706 | HX0701702 | HX0701852 | |||||
Size | 7" | 7" | 7" | 7" | 7" | |||||
Operating | -20℃ ~ 70℃ | -20℃ ~ 70℃ | -20℃ ~ 70℃ | -20℃ ~ 70℃ | -20℃ ~ 70℃ | |||||
Storage | -30℃ ~ 80℃ | -30℃ ~ 80℃ | -30℃ ~ 80℃ | -30℃ ~ 80℃ | -30℃ ~ 80℃ | |||||
OD(mm) | 183.60x127.84x8.9 | 165x100x7.79 | 165x100x7.73 | 165x100x7.73 | 165.0x100.0x7.79 | |||||
AA(mm) | 154.21x85.92 | 154.08x85.92 | 154.08x85.92 | 154.08x85.92 | 154.08x85.92 | |||||
PCAP Number | HX0701840-CTP | HX0701603 | HX0701601 | HX0701601 | HX0701601 | |||||
Touch IC | MXT641T-AT | CYTMA568 | CYTMA568 | CYTMA568 | CYTMA568 | |||||
Structure | G+G | G+G | G+G | G+G | G+G | |||||
Surface treatment | AR+AF | AG+AF | / | / | / | |||||
Interface | 6pins IIC/USB | 6pins IIC/USB | 6pins IIC/USB | 6pins IIC/USB | 6pins IIC/USB | |||||
Touch Points | 1~10 points | 1~10 points | 1~10 points | 1~10 points | 1~10 points | |||||
TFT Number | HX070NI-40L07 | HX070BT-40L06 | HX070NL27-50ND-30C | HX070NL22-50ND-18D | HX070NI-40L07 | |||||
Resolution | 1024x600 | 1024x600 | 800x480 | 800x480 | 1024x600 | |||||
TFT Panel | IPS | TN | TN | TN | IPS | |||||
TFT Interface | 40PINS LVDS | 40PINS LVDS | 50PINS RGB | 50PINS RGB | 40PINS LVDS | |||||
Luminance | 1000cd/m2 | 900cd/m2 | 1000cd/m2 | 300cd/m2 | 1000cd/m2 | |||||
Viewing Angle | ALL | 80/80/60/70 | 70/70/50/70 | 70/70/50/70 | ALL | |||||
Bonding workmanship | Optical Bonding | Air Bonding | Air Bonding | Air Bonding | Air/Optical Bonding | |||||
We can provide USB controller and HDMI/VGA driver board.
If you didn't find the suit one, Just tell us your requirements, so i could recommended you more suitable products.Please contact us.
Industrial Control
Medical Equipment
Intelligent Household Industry
Outdoor Equipment
programe evsluation | 1 to 2 morking days | |
Drawings | 2 to 3 working days | |
Customized products | 3 to 4 weeks(after drawings confirmed) | |
Mass Production delivery | 4.3 to 5 weeks | |
Software debugging | ||
Capacity | 100K per month(10.1 inches as a reference) | |
Process capability | G+G/G+F+F/G+F/P+F Structure,shielding process, overall module joint process(Optical Bonding/Air Bonding) ,Cover glass surface treatment AR, AG, AF etc | |
Technical support | Engineers to provide door-to-door or remote access service within 24 hours | |
Stable supply chain for at least 3~5 years guarantee | ||
One year warranty time for all of our products | ||
Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q:How long is the warranty time for your products?
A:Normally 1 year warranty without damaged by people actions like misuse.It depends on different products.
Grahowlet is a professional manufacturer of capacitive touch screen & LCD Touch monitors, with low power consumption, High Sensitivity, High resolution.
