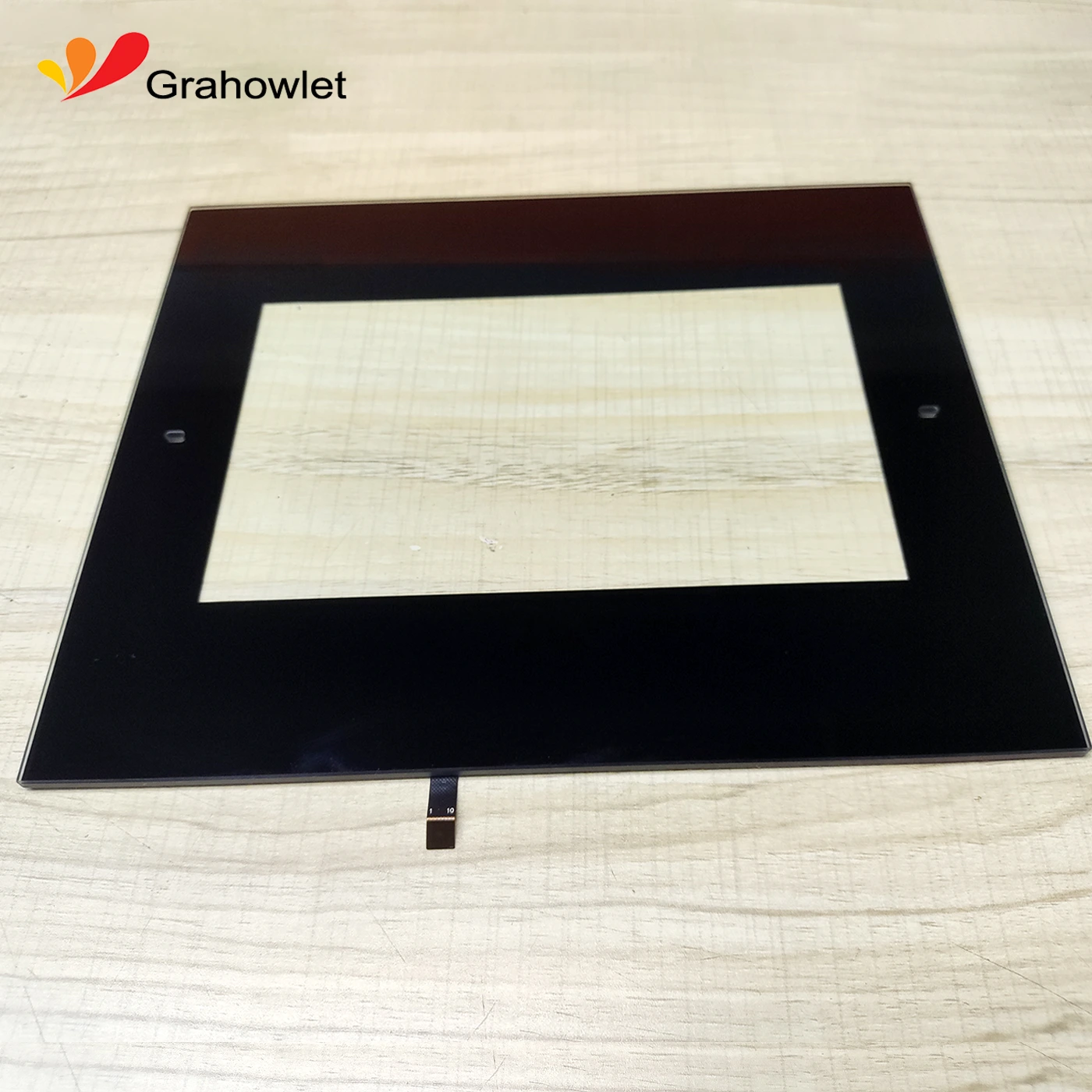

Hx0701817-pcap Touch Panel 7 Inch Capacitive Multi Touch Screen Kit
• PCAP & LCD module size: 1.3”-32”
• Optical Bonding service : 1.3”-21.5”
• HDMI & VGA T-CON Board available
• IIC-USB interface Bridge board available
•CTP can be Customized with cover glass surface treatment process AG(anti-glare), AR(anti-reflective), AF(anti-fingerprint)
• Support touch with 12mm cover glass.
• Support touch with pool of water.
• Support touch with 5mm gloves.
• Custom Highlight TFT (Up to 2300cd/㎡)
• Support operating temperature: -40℃-85℃.
>>>Contact us to get your individual customized solution!!<<<
Model Number | HX0701817-PCAP | Surface Hardness | ≥6H |
Brand | Grahowlet | Operating Environment | -20℃ ～ 70℃,≤85% RH |
Size | 7.0 inch | Storage Environment | -30℃ ～ 80℃,≤85% RH |
Interface Type | IIC/USB | Power Supply Voltage | 2.8V ～ 3.3V |
Structure | GLASS+GLASS | Outline Dimension | 212.00(W)x164.00(H)x4.54(D) mm |
Controller IC | FT5446U | Viewing Area | 155.21(W)x86.92(H) mm |
Touch Points | 10 points | Support Systems | Windows/Android/Linux etc. |
Transparency | ≥85% | Warranty | 1 year |
Industrial Control
Medical Equipment
Intelligent Household Industry
Outdoor Equipment
Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service，can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q:How long is the warranty time for your products?
A:Normally 1 year warranty without damaged by people actions like misuse.It depends on different products.
Grahowlet is a professional manufacturer of capacitive touch screen & LCD Touch monitors, with low power consumption, High Sensitivity, High resolution.
