12 years of experience in industrial touch screen R&D and manufacturing.

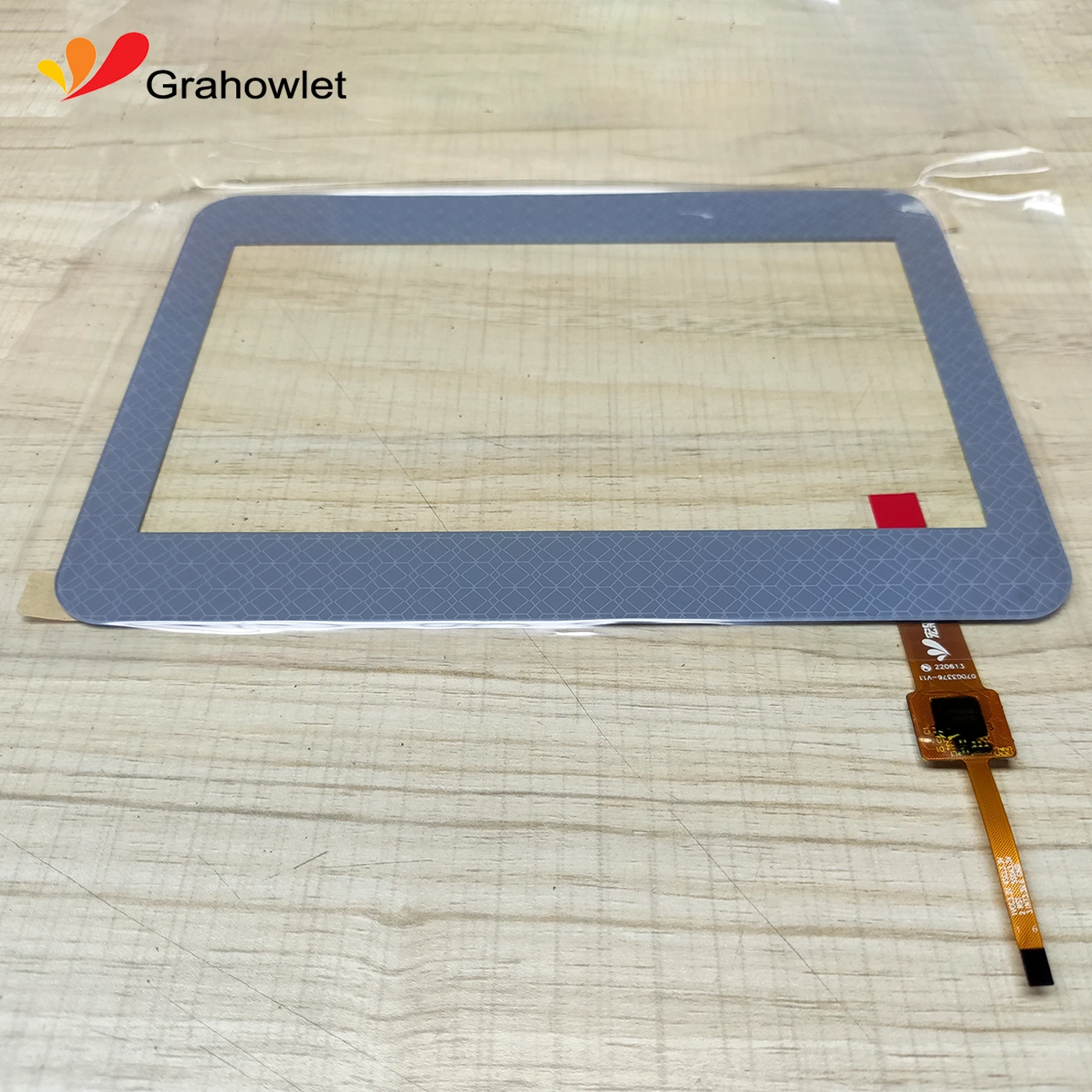

Hx0701710-pcap 7 Inch Projected Capacitive Multi Touch Screen Panel 1
Hx0701710-pcap 7 Inch Projected Capacitive Multi Touch Screen Panel 2
Hx0701710-pcap 7 Inch Projected Capacitive Multi Touch Screen Panel 3
Hx0701710-pcap 7 Inch Projected Capacitive Multi Touch Screen Panel 4
Hx0701710-pcap 7 Inch Projected Capacitive Multi Touch Screen Panel 5
Hx0701710-pcap 7 Inch Projected Capacitive Multi Touch Screen Panel 6
Hx0701710-pcap 7 Inch Projected Capacitive Multi Touch Screen Panel 1
Hx0701710-pcap 7 Inch Projected Capacitive Multi Touch Screen Panel 2
Hx0701710-pcap 7 Inch Projected Capacitive Multi Touch Screen Panel 3
Hx0701710-pcap 7 Inch Projected Capacitive Multi Touch Screen Panel 4
Hx0701710-pcap 7 Inch Projected Capacitive Multi Touch Screen Panel 5
Hx0701710-pcap 7 Inch Projected Capacitive Multi Touch Screen Panel 6

Hx0701710-pcap 7 Inch Projected Capacitive Multi Touch Screen Panel

    oops...!

    no product data.

    Go to homepage
    Stable supply chain
    at least 3 years guarantee
    Service
    Provide technical support at any time
    Capacity
    120K per month
    Mass Production delivery
    4 to 6 weeks
    Customized products
    3 to 4 weeks(after drawings confirmed)
    Drawings
    2 to 3 working days
    programe evsluation
    1 to 2 morking days
    Application
    Industrial Application
    Touch type
    Projected Capacitive Multi Touch Panel
    Product name
    HX0701710-PCAP 7 inch projected capacitive multi touch screen panel
    Place of Origin
    Zhejiang, China
    Interface Type
    usb, IIC
    Type
    Capacitive
    Products Status
    New
    Private Mold
    Yes
    After-sales Service
    Call Center and on-line Technical Support
    Aspect Ratio
    16:9
    Series
    For Business
    Package
    Yes
    Color
    Multi
    Warranty(Year)
    1-Year
    HX0701710-PCAP 7 inch projected capacitive multi touch screen panel
    Product Description
    Customize PCAP/PCAP+ LCD DISPLAY 1.3-65 inch
    Full range of standard product in stock (no need customization)
    Hx0701710-pcap 7 Inch Projected Capacitive Multi Touch Screen Panel 7
    Hx0701710-pcap 7 Inch Projected Capacitive Multi Touch Screen Panel 8
    PCAP(projected capacitive)
    Model Number:HX0701710-PCAP
    Size:7.0 inch
    Operating Temperature:-20℃ ~ 70℃,≤85% RH
    Operating Temperature:-30℃ ~ 80℃,≤85% RH
    Outline Dimension:178.00x126.00x2.525mm
    Viewing Area:154.88(W)x86.72(H) mm
    Support Systems:Windows/Android/Linux etc.
    Hx0701710-pcap 7 Inch Projected Capacitive Multi Touch Screen Panel 9
    Light Transmittance:≥85%
    Surface Hardness:≥6H
    Interface Type:IIC/USB
    Structure:Glass+Glass
    Controller IC:FT5426
    Touch Points:1-10 Points
    Power Supply Voltage:2.8V ~ 3.3V
    Hx0701710-pcap 7 Inch Projected Capacitive Multi Touch Screen Panel 10
    Module Number:HX0701710
    Resolution:800x480
    Interface Type:50pins RGB/HDMI/VGA
    Luminance:1000 cd/m²
    Viewing Angle:70/70/50/70
    Related Products

    We can provide USB controller and HDMI driver board.

    If you didn't find the suit one, Just tell us your requirements, so i could recommended you more suitable products.Please contact us.
    Application
    Hx0701710-pcap 7 Inch Projected Capacitive Multi Touch Screen Panel 11
    Hx0701710-pcap 7 Inch Projected Capacitive Multi Touch Screen Panel 12
    Hx0701710-pcap 7 Inch Projected Capacitive Multi Touch Screen Panel 13
    If you want USB interface, we can supply IIC to USB Bridgeboard
    Hx0701710-pcap 7 Inch Projected Capacitive Multi Touch Screen Panel 14
    Hx0701710-pcap 7 Inch Projected Capacitive Multi Touch Screen Panel 15
    1.Support Touch with glove of all materials and thickness with 6mm
    Hx0701710-pcap 7 Inch Projected Capacitive Multi Touch Screen Panel 16
    2.Support Touch with water/brine
    Hx0701710-pcap 7 Inch Projected Capacitive Multi Touch Screen Panel 17
    3.Cover glass Support -8mm thickness--explosion-proof
    Hx0701710-pcap 7 Inch Projected Capacitive Multi Touch Screen Panel 18
    4.Cover glass surface treatment--AG, AR, AF
    Hx0701710-pcap 7 Inch Projected Capacitive Multi Touch Screen Panel 19
    Anti Glare (AG) processing could eliminate screen surface mirror problem
    through converting direct light to diffuse light on the touch screen.
    Hx0701710-pcap 7 Inch Projected Capacitive Multi Touch Screen Panel 20
    AR processing means adding a type of coating that could reduce reflected light on the cover
    glass,which dereases screen reflection and increases visual effects
    significantly in the sun.
    Our Service
    programe evsluation
    1 to 2 morking days
    Drawings
    2 to 3 working days
    Customized products
    3 to 4 weeks(after drawings confirmed)
    Mass Production delivery
    4.3 to 5 weeks
    Software debugging
    Capacity
    100K per month(10.1 inches as a reference)
    Process capability
    G+G/G+F+F/G+F/P+F Structure,shielding process, overall module joint process(Optical Bonding/Air Bonding) ,Cover glass surface treatment AR, AG, AF etc
    Technical support
    Engineers to provide door-to-door or remote access service within 24 hours
    Stable supply chain for at least 3~5 years guarantee
    One year warranty time for all of our products
    Feedback of customers
    Hx0701710-pcap 7 Inch Projected Capacitive Multi Touch Screen Panel 21
    For more Ratings & Reviews, please Click here

    Packing & Delivery
    Hx0701710-pcap 7 Inch Projected Capacitive Multi Touch Screen Panel 22
    FAQ

    Q:Can you provide OEM service?
    A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
    Q: How can I trust your product quality?
    A:We have more than 10 years experience in touch screen industry.  From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
    Q: What's your after-sale service?
    A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong technical team.
    Q:What is the minimum order?
    A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
    once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
    Q:How long is the warranty time for your products?
    A:Normally 1 year warranty without damaged by people actions like misuse.It depends on different products.
