Thickness:0.005mm,0.125mm,0.4mm, 0.55mm,0.7mm,1.1mm
FPC:shape design optional
Touch IC:Cypress,Ilitek,Atmel,Focaltech,
EETI,Goodix,etc
Interface:IIC,USB,RS232
12 years of experience in industrial touch screen R&D and manufacturing.

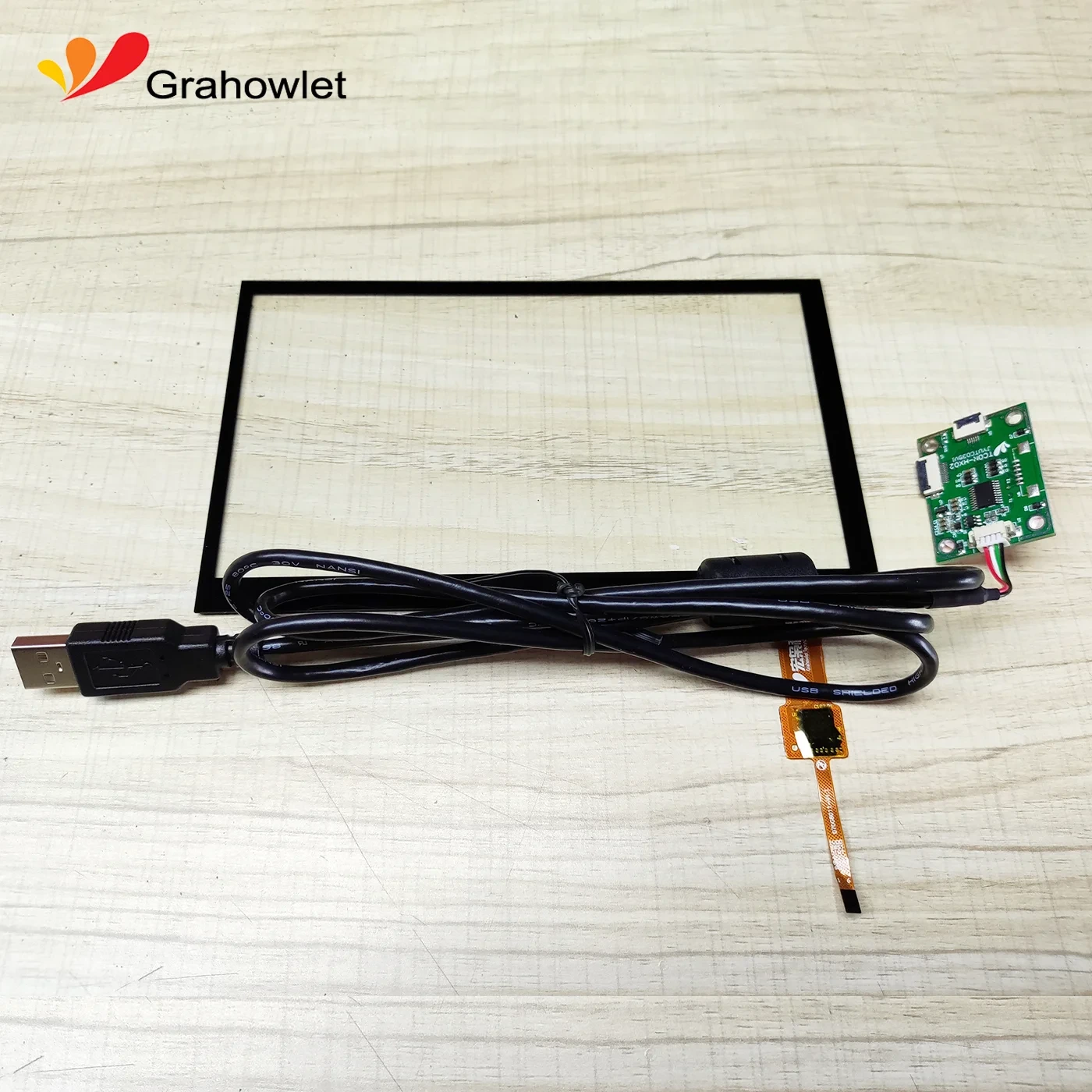

Hx0701603 Ag+af Glass Panel 7 Inch Touch Glass Pcap(projected Capacitive)
5.0
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-2(pieces):7(days),>2(pieces):To be negotiated(days)
Customization:
Customized logo (Min. Order: 100 sets),Customized packaging (Min. Order: 100 sets),Graphic customization (Min. Order: 100 sets),thickcover lens, waterproof, glove touch .. (Min. Order: 100 sets)
Brand Name:
Grahowlet
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Touch Controller IC
Cypress
Certification
ISO9001
surface treatment
AG+AF
Keywords
Touch Screen Glass Panel
Operating System
XP/WIN7/WIN8/WIN10/Android/Linux
Application
Industrial Application
Touch points
10 Points
Structure
Glass+Glass+FPC
Touch type
Projected Capacitive Multi Touch Panel
Product name
AG+AF glass panel 7 inch touch glass PCAP(projected capacitive)
Place of Origin
Zhejiang, China
Interface Type
usb, IIC
Type
Capacitive
Products Status
New
Private Mold
Yes
After-sales Service
Call Center and on-line Technical Support
Aspect Ratio
16:9
Series
For Business
Package
Yes
Color
Black
Warranty(Year)
1-Year
HX0701603 AG+AF glass panel 7 inch touch glass PCAP(projected capacitive)
Certifications
Product Description
Model Number | HX0701603 | Surface Hardness | ≥6H |
Brand | Grahowlet | Operating Environment | -20℃ ～ 70℃,≤85% RH |
Size | 7.0 inch | Storage Environment | -30℃ ～ 80℃,≤85% RH |
Interface Type | IIC/USB | Power Supply Voltage | 2.8V ～ 3.3V |
Structure | GLASS+GLASS | Outline Dimension | 165.00x100.00x1.45mm |
Controller IC | Cypress | Viewing Area | 154.88(W)x86.72(H) mm |
Touch Points | 10 points | Support Systems | Windows/Android/Linux etc. |
Transparency | ≥85% | Warranty | 1 year |
Related Products
We can provide USB controller and HDMI/VGA driver board.
If you didn't find the suit one, Just tell us your requirements, so i could recommended you more suitable products.Please contact us.
Custom Service
Cover Glass
shape Support for special-cut, drill hole(minimum aperture 0.8 mm) | Color Different colors of silkprint and LOGO screen print (UV-proof ink optional) | Brand Options: AGC,Corning, CG etc. | Thickness Thickness option: 0.55, 0.7,1.0,1.1,1.8,2.0,3.0,4.0 ,5.0,6.0mm etc. |
Sensor
Materials:Glass,fiilm,film+film
Thickness:0.005mm,0.125mm,0.4mm, 0.55mm,0.7mm,1.1mm
FPC:shape design optional
Touch IC:Cypress,Ilitek,Atmel,Focaltech,
EETI,Goodix,etc
Thickness:0.005mm,0.125mm,0.4mm, 0.55mm,0.7mm,1.1mm
FPC:shape design optional
Touch IC:Cypress,Ilitek,Atmel,Focaltech,
EETI,Goodix,etc
Display
Partners: BOE, AUO, LNNOLux, TianMa, IVO, etc.
Category: TFT-LCD, OLED
Interface:MCU/MIPI/RGB/LVDS/EDP etc
Category: TFT-LCD, OLED
Interface:MCU/MIPI/RGB/LVDS/EDP etc
Driver Board Solutions
1. TFT LCD driver board:RGB/MIPI/LVDS/EDP and others interface conversion to VGA/HDMI.
2. The conversion board between LCD screen signals, as RGB TO LVDS/LVDS TO EDP etc.
3. "IIC TO USB" bridge board,it can achieve drive free use of the touch screen.
4. According to customer requirements, we can provide customized services, such as deep customization of driver boards, single chip microcontrollers, etc.
Bonding(PCAP and Display)
Optical Bonding(Refer to the above figure) | Air Bonding(Refer to the above figure) |
Optical bonding refers to the seamless bonding between liquid crystal display screens and touch screens using OCA optical adhesive or OCR adhesive, which has the advantages of being light and thin, dust free, high transparency, and resistant to falling; But the price is expensive. For example, iPad Mini/iPad Pro and others use Optical bonding | Air bonding is the use of double-sided adhesive to bond the glass cover plate and display screen together, with gaps in the middle. The disadvantage is that it is easy to get dust and is not resistant to falling. Poor display effect, etc. But the price is cheap. For example, IPad 10th/9th Generation and others use Air bonding |
Product Features
GLOVE FUNCTION
Support gloves made of various materials such as nylon,latex, cotton,plush and leather and of different thickness,6mm the thickest
WATER FUNCTION
Support touch with water,oil, oil-water mixture and brine
THICKNESS
Support normal touch with thick cover like tempered glass,15mmm the thickest
Cover glass surface treatment--AG, AR, AF
Anti Glare (AG) processing could eliminate screen surface mirror problem
through converting direct light to diffuse light on the touch screen.
AR processing means adding a type of coating that could reduce reflected light on the cover glass,
which dereases screen reflection and increases visual effects significantly in the sun.
AF processing is adding on the cover glass a king of coating that could increases
surface smoothness, reduces surface sliding resistance , residual water and fingerprints on the surface significantly and improves feeling and clarity.
Packing & Delivery
FAQ
Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q:How long is the warranty time for your products?
A:Normally 1 year warranty without damaged by people actions like misuse.It depends on different products.
