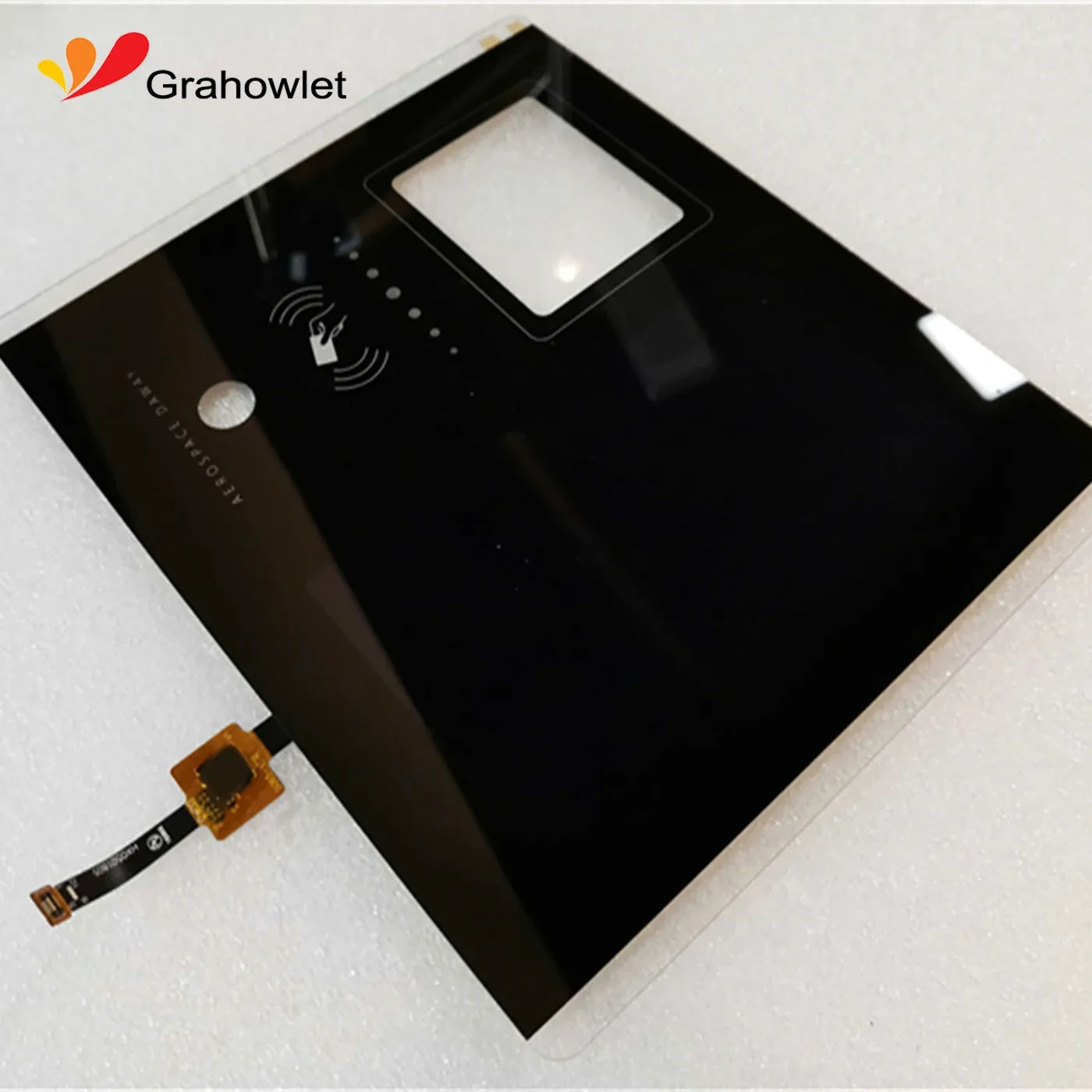

Hx0501805 720p Lcd Screen Panel 5 Inch Capacitive Tft Touch Screen Display For Credit Card Machine 1

Hx0501805 720p Lcd Screen Panel 5 Inch Capacitive Tft Touch Screen Display For Credit Card Machine 2

Hx0501805 720p Lcd Screen Panel 5 Inch Capacitive Tft Touch Screen Display For Credit Card Machine 3

Hx0501805 720p Lcd Screen Panel 5 Inch Capacitive Tft Touch Screen Display For Credit Card Machine 4

Hx0501805 720p Lcd Screen Panel 5 Inch Capacitive Tft Touch Screen Display For Credit Card Machine 5

Hx0501805 720p Lcd Screen Panel 5 Inch Capacitive Tft Touch Screen Display For Credit Card Machine 6

Hx0501805 720p Lcd Screen Panel 5 Inch Capacitive Tft Touch Screen Display For Credit Card Machine 7

Hx0501805 720p Lcd Screen Panel 5 Inch Capacitive Tft Touch Screen Display For Credit Card Machine

Shipping:

Support Sea freight

Place of Origin:

China

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-2(parcels):7(days),>2(parcels):To be negotiated(days)

Customization:

Customized logo (Min. Order: 300 sets),Customized packaging (Min. Order: 300 sets),Graphic customization (Min. Order: 300 sets)

Brand Name:

Grahowlet

Inquiry

Write a Review

input must not exceed 280 in length!

name

Please enter a valid email address!

input must not exceed 280 in length!

phone

input must not exceed 280 in length!

company name

textarea must not exceed 65530 in length!

content

Operating Temperature

-20℃ ~ 70℃

Operating System

WinXP/Win7/ Win8/Win10/Linux/Android

Application

Industrial Application

Brightness

500cd/m2

Function

touch with water/glass/gloves

Panel Type

IPS TFT LCD PANEL

Touch controller

CYTMA568

Structure

PCAP(Glass+film+film)+TFT

Touch type

projected capacitive multi touch screen panel

Product name

720P LCD Panel 5 inch capacitive lcd touch screen tft display

Place of Origin

Zhejiang, China

Interface Type

usb, IIC/MIPI

Type

Capacitive

Products Status

New

Private Mold

Yes

After-sales Service

Call Center and on-line Technical Support

Aspect Ratio

16:9

Series

For Business

Package

Yes

Color

Black

Warranty(Year)

1-Year

HX0501805 720P LCD Screen Panel 5 inch capacitive tft touch screen display

for Credit card machine

Certifications

Hx0501805 720p Lcd Screen Panel 5 Inch Capacitive Tft Touch Screen Display For Credit Card Machine 9

Hx0501805 720p Lcd Screen Panel 5 Inch Capacitive Tft Touch Screen Display For Credit Card Machine 10

Product Description

Customize PCAP/PCAP+ LCD DISPLAY 1.3-65 inch
Full range of standard product in stock (no need customization)

Need to be reminded: Standard products haven't special functions for the time being.

If your product needs special features,such as: waterproof, explosion-proof, gloved touch, etc,

please feel free to contact us.Thanks!

Hx0501805 720p Lcd Screen Panel 5 Inch Capacitive Tft Touch Screen Display For Credit Card Machine 11

TPM	Model Number	HX0501805
		Brand	Grahowlet
		Size	5.0 inch
		Operating Temperature	-20℃ ~ 70℃
		Storage Temperature	-30℃ ~ 80℃
		Bonding workmanship	Optical Bonding
		Outline Dimension	177.40(W)X145.40(H)X3.58(D)mm
		Viewing Area	62.90(W)X111.20(H)mm
		Active Area	62.10(W)X110.40(H)mm
		Support Systems	Windows/Android/Linux etc.
		Warranty	1 year
PCAP	Interface Type	IIC/USB
		Structure	Glass+Film+Film
		Controller IC	Cypress
		Touch Points	10 points
		Surface treatment	AF
		Impact resistance	IK9
		Transparency	≥85%
		Surface Hardness	≥6H
		Power Supply Voltage	2.8V ～ 3.3V
TFT	Resolution	720*1280
		Interface Type	MIPI
		Luminance	500 cd/m²
		Viewing Angle	ALL

Hx0501805 720p Lcd Screen Panel 5 Inch Capacitive Tft Touch Screen Display For Credit Card Machine 12

Hx0501805 720p Lcd Screen Panel 5 Inch Capacitive Tft Touch Screen Display For Credit Card Machine 13

Hx0501805 720p Lcd Screen Panel 5 Inch Capacitive Tft Touch Screen Display For Credit Card Machine 14

Industrial Control

Hx0501805 720p Lcd Screen Panel 5 Inch Capacitive Tft Touch Screen Display For Credit Card Machine 17

Medical Equipment

Hx0501805 720p Lcd Screen Panel 5 Inch Capacitive Tft Touch Screen Display For Credit Card Machine 18

Intelligent Household Industry

Hx0501805 720p Lcd Screen Panel 5 Inch Capacitive Tft Touch Screen Display For Credit Card Machine 19

Outdoor Equipment

Hx0501805 720p Lcd Screen Panel 5 Inch Capacitive Tft Touch Screen Display For Credit Card Machine 20

Hx0501805 720p Lcd Screen Panel 5 Inch Capacitive Tft Touch Screen Display For Credit Card Machine 21

Bonding(PCAP and TFT)

Hx0501805 720p Lcd Screen Panel 5 Inch Capacitive Tft Touch Screen Display For Credit Card Machine 22

Hx0501805 720p Lcd Screen Panel 5 Inch Capacitive Tft Touch Screen Display For Credit Card Machine 23

1.Support Touch with glove of all materials and thickness with 6mm

Hx0501805 720p Lcd Screen Panel 5 Inch Capacitive Tft Touch Screen Display For Credit Card Machine 24

2.Support Touch with water/brine

Hx0501805 720p Lcd Screen Panel 5 Inch Capacitive Tft Touch Screen Display For Credit Card Machine 25

3.Cover glass Support -8mm thickness--explosion-proof

Hx0501805 720p Lcd Screen Panel 5 Inch Capacitive Tft Touch Screen Display For Credit Card Machine 26

4.Cover glass surface treatment--AG, AR, AF

Hx0501805 720p Lcd Screen Panel 5 Inch Capacitive Tft Touch Screen Display For Credit Card Machine 27

Anti Glare (AG) processing could eliminate screen surface mirror problem

through converting direct light to diffuse light on the touch screen.

Hx0501805 720p Lcd Screen Panel 5 Inch Capacitive Tft Touch Screen Display For Credit Card Machine 28

Anti-Reflective(AR) processing means adding a type of coating that could reduce

reflected light on the cover glass,which dereases screen reflection

and increases visual effects significantly in the sun.

Hx0501805 720p Lcd Screen Panel 5 Inch Capacitive Tft Touch Screen Display For Credit Card Machine 29

Anti-Fingerprint (AF) processing is adding on the cover glass a kind of coating that could increases surface smoothness,reduces surface aliding resistance,residual water and fingerprints on the surface significantly and improves touch feeling and clarity.

Our Service

programe evsluation	1 to 2 morking days
Drawings	2 to 3 working days
Customized products	3 to 4 weeks(after drawings confirmed)
Mass Production delivery	4 to 6 weeks
Software debugging
Capacity	100K per month(10.1 inches as a reference)
Process capability	G+G, G+F+F, shielding process, overall module joint process(Optical Bonding)(maximum 65 ") Cover glass surface treatment AR, AG, AF
Technical support	Engineers to provide door-to-door or remote access service within 24 hours
Stable supply chain for at least 3 years guarantee
One year warranty time for all of our products

Packing & Delivery

Hx0501805 720p Lcd Screen Panel 5 Inch Capacitive Tft Touch Screen Display For Credit Card Machine 30

FAQ

Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q:How long is the warranty time for your products?
A:Normally 1 year warranty without damaged by people actions like misuse.It depends on different products.
