Model Number:HX1561804
Size:15.6 inch
Operating Temperature:0℃ ~ 50℃
Outline Dimension:389.00x237.05x5.95 mm
Viewing Area:345.16x194.59 mm
Active Area:344.16x193.59 mm
Support Systems:Windows/Android/Linux etc.
12 years of experience in industrial touch screen R&D and manufacturing.
Customize Pcap Touch Screen 15,156,17,17.3,18.5,19 Inch Touch Panel With Tft Lcd Display For Pc/computer
5.0
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-1(pieces):7(days),>1(pieces):To be negotiated(days)
Customization:
Customized logo (Min. Order: 500 sets),Customized packaging (Min. Order: 500 sets),Graphic customization (Min. Order: 500 sets)
Brand Name:
Grahowlet
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Operating System
XP Win7 8 Android Linux
Application
Industrial Application
Touch panel
PCAP
Shipping ways
UPS.FEDEX.DHL Etc
Panel Type
TFT-LCD Panel
Power Supply
USB 5V
Touch points
10 Points
Structure
Glass+Glass
Product name

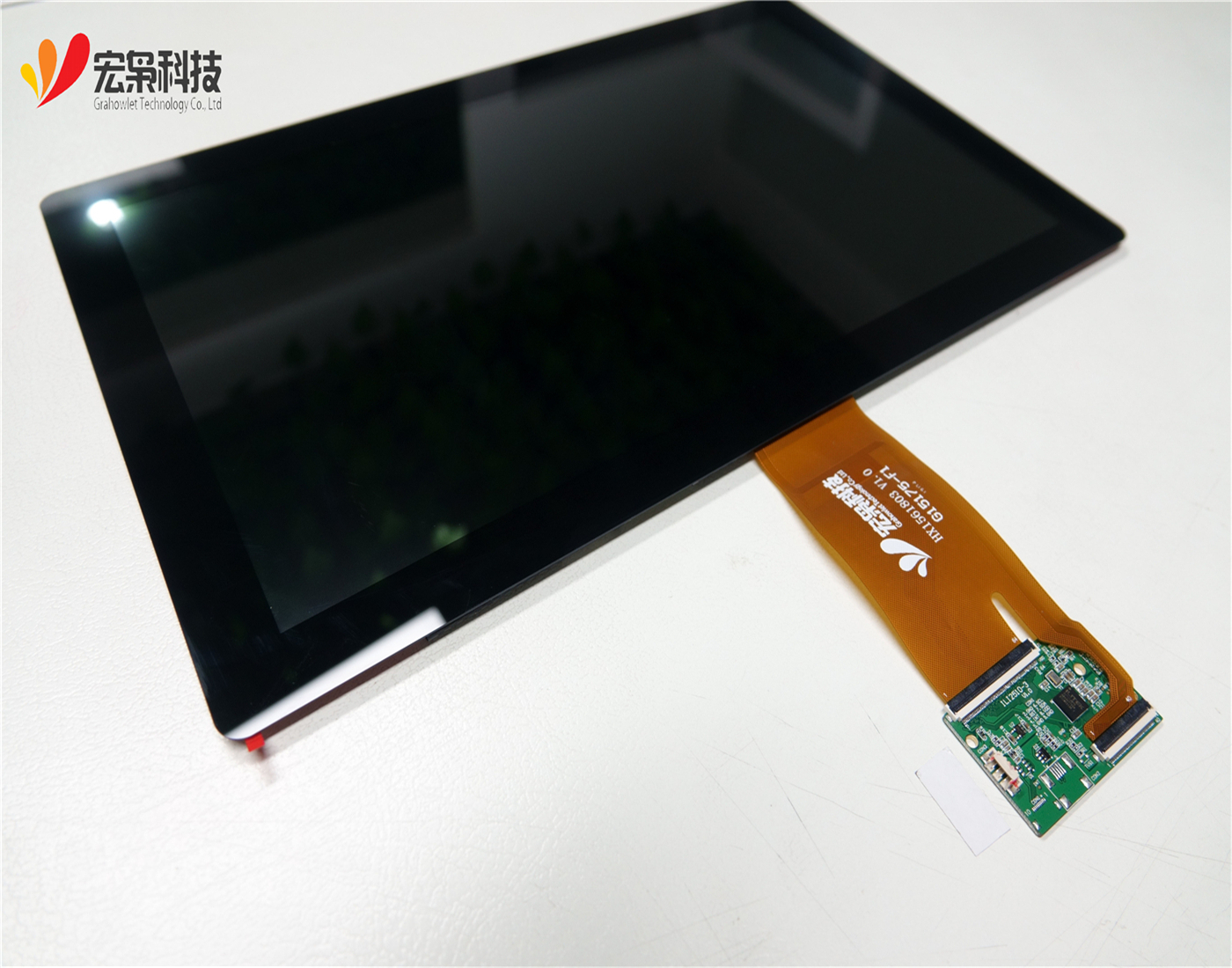

15.6 inch touch panel with tft lcd display for PC/Computer
Place of Origin
Zhejiang, China
Interface Type
usb, IIC EDP/LVDS
Type
Capacitive
Products Status
Stock
After-sales Service
Call Center and on-line Technical Support
Aspect Ratio
16:9
Series
For Business
Package
Yes
Color
Black
Warranty(Year)
1-Year
Customize PCAP touch screen 15,156,17,17.3,18.5,19 inch touch panel with tft lcd display for PC/Compute
Product Description
Customize CTP/CTP+ LCD DISPLAY 1.3-65 inch
Full range of standard product in stock (no need customization)
MODULE PRODUCT DETAILS
PCAP ( projected capacitive )
Light Transmittance:≥85%
Surface Hardness:≥6H
Interface Type:USB ( Plug and Play)
Controller IC :ILITEK
Touch Points:1-10 Points
Power Supply Voltage:5V
Surface Hardness:≥6H
Interface Type:USB ( Plug and Play)
Controller IC :ILITEK
Touch Points:1-10 Points
Power Supply Voltage:5V
TFT LCD DISPLAY
Resolution:1920x1080
Interface Type: EDP
Luminance:220 cd/m²
Viewing Angle:45/45/20/40
Warranty:1 year
Interface Type: EDP
Luminance:220 cd/m²
Viewing Angle:45/45/20/40
Warranty:1 year
CLICK HERE FOR MORE INFORMATION
Related Products
Model Number:HX1501705
Size:15 inch
Resolution:1024x768
Interface Type:LVDS
Luminance:420cd/m²
Viewing Angle:80/80/80/80
Model Number:HX1561707
Size:15.6 inch
Resolution:1920x1080
Interface Type:LVDS
Luminance:400 cd/m²
Viewing Angle:80/80/70/70
Model Number:HX1901702
Size:19.0 inch
Resolution:1280x1024
Interface Type:LVDS
Luminance:350cd/m²
Viewing Angle:85/85/80/80
Model Number:HX1701702
Size:17.0 inch
Resolution:1280x1024
Interface Type:LVDS
Luminance:350cd/m²
Viewing Angle:85/80/85/85
Model Number:HX1731703
Size:17.3 inch
Interface Type:USB/IIC
Structure:G+G
Controller IC:ILITEK
Touch Points:1-10 points
Model Number:HX1851801
Size:18.5 inch
Resolution:1366x768
Interface Type:LVDS
Luminance:250 cd/m²
Viewing Angle:45/45/25/40
We can provide USB controller and HDMI/VGA driver board.
If you didn't find the suit one, Just tell us your requirements, so i could recommended you more suitable products.Please Click here.
Our Company
Hangzhou Hongxiao Technology is a comprehensive service provider of capacitive touch screen module and TFT LCD display for various industries. We provides solutions that match all customers’ touch screen needs and create products based on multiple technologies.We are committed to supply global customers with first-class products and professional technical services in the touch industries. Our products are of high stability and anti-interference performance and used in various industries with complicated and difficult conditions.
Custom Service
■ Programme evaluation : 1 to 2 working days
■ Drawings:2 to 3 working days
■ Customized products:3 to 4 weeks(after drawings confirmed)
■ Pruduction delivery :3 to 5 weeks
■ Capacity: 100K per month(10.1 inches as a reference)
■ Process capability: G+G, G+F+F, shielding process, overall module joint process(Optical Bonding)(maximum 65 )Cover glass surface treatment AR, AG, AF
■ Technical support :Engneers to privide door-to-door or remote access service within 24 hours
■ Stable supply chain for at least 3~5 years guarantee
■ One year warranty time for all of our product
■ Quality Assurance:Quality Control: Full-inspection of Function and Appearance by OQC
Efficient Customer Service : respond to quality complaint and returns in one day
Reliability Test: high and low temperature storage test, cold and hot shock test, ESD servo motor disturbance test, etc.
CLICK HERE FOR MORE INFORMATION
Application
Courier handheld terminal
Portable medical machine
Front loading Vehicle control system
Industrial Data Detection Equipment
1.Support Touch with glove of all materials and thickness with 6mm
2.Support Touch with water/brine
3.Cover glass Support -8mm thickness--explosion-proof
4.Cover glass surface treatment--AG, AR, AF
Anti Glare (AG) processing could eliminate screen surface mirror problem through converting direct light to diffuse light on the touch screen.
AR processing means adding a type of coating that could reduce reflected light on the cover glass,which dereases screen reflection and increases visual effects
significantly in the sun.
CLICK HERE FOR MORE INFORMATION
Certifications
Packing & Delivery
FAQ
Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q:How long is the warranty time for your products?
A:Normally 1 year warranty without damaged by people actions like misuse.It depends on different products.
