12 years of experience in industrial touch screen R&D and manufacturing.

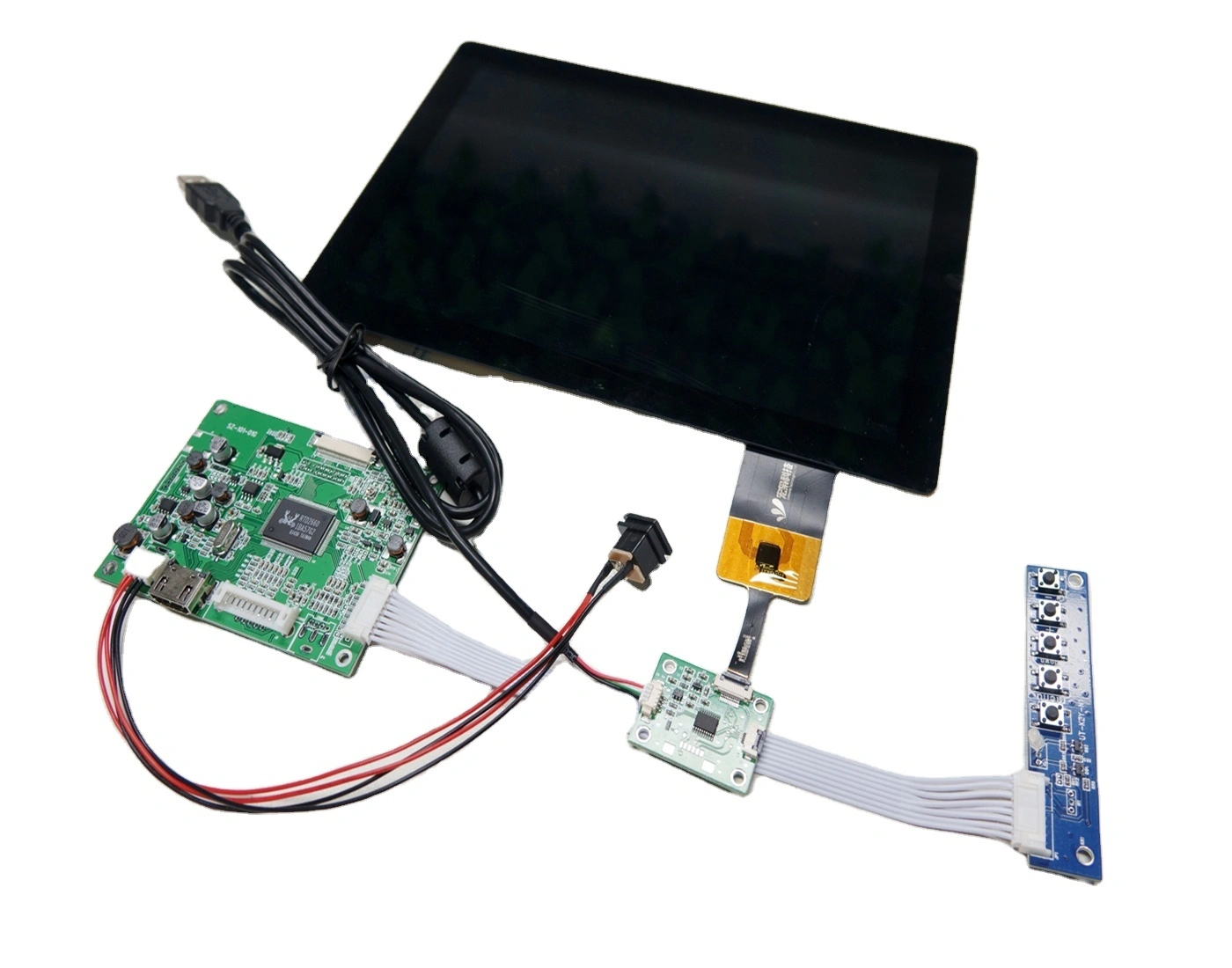

Model Number:HX1011801
Size:10.1 inch
Operating Temperature:-20℃ ~ 70℃
Storage Temperature:-30℃ ~ 80℃
Outline Dimension:247.96x166.60x7.55 mm
Viewing Area:217.76(W)x136.40(H) mm
Active Area:216.96(W)x135.60(H) mm
Support Systems:Windows/Android/Linux etc.
Light Transmittance:≥85%
Surface Hardness:≥6H
Interface Type:IIC/USB
Structure:Glass+Glass
Controller IC:Cypress
Touch Points:1-10 Points
Power Supply Voltage:2.8V ~ 3.3V
Resolution:1280x800
Interface Type:LVDS/HDMI/VGA
Luminance:800 cd/m²
Viewing Angle:85/85/85/85
Warranty:1 year
If you want USB interface, we can supply IIC to USB Bridgeboard Click here
Support gloves made of various materials such as nylon,latex,
cotton,plush and leather and of different thickness,6mm the thickest.
Support touch with water,oil,
oil-water mixture and brine
Support normal touch with thick cover like tempered glass,
8mm the thickest
programe evsluation | 1 to 2 working days | |
Drawings | 2 to 3 working days | |
Customized products | 3 to 4 weeks(after drawings confirmed) | |
Mass Production delivery | 4 to 6 weeks | |
Software debugging | ||
Capacity | 100K per month(10.1 inches as a reference) | |
Process capability | G+G, G+F+F, shielding process, overall module joint process(Optical Bonding)(maximum 65 ") Cover glass surface treatment AR, AG, AF | |
Technical support | Engineers to provide door-to-door or remote access service within 24 hours | |
Stable supply chain for at least 3 years guarantee | ||
One year warranty time for all of our products | ||
Quality Control: Full-inspection of Function and Appearance by OQC
Efficient Customer Service : respond to quality complaint and returns in one day
Reliability Test: high and low temperature storage test, cold and hot shock test, ESD servo motor disturbance test, etc.
Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q: Is there any suggestion regarding the capacitive touch screen module solutoin directly used by raspberry pi and orange pi?
A: We have some mature projects cases and the best way is to connect the touch screen directly through USB interface to the Raspberry Pi or the orange Pi, and the display can be directly connected through HDMI interface, this way the whole solution can be implemented through plug and play.
Large size touch screen will be designed directly with USB interface, small size is general designed with IIC interface, so we will do is to provide the board which changes the IIC into USB. however, customers need to contact our technicians to check the configuration and software system.
For display, we can provide RGB to HDMI, LVDS to HDMI, MPI to HDMI, EDP to HDMI and other driver boards to realize the connection with Raspberry Pi and orange pi;
Grahowlet is a professional manufacturer of capacitive touch screen & LCD Touch monitors, with low power consumption, High Sensitivity, High resolution.
