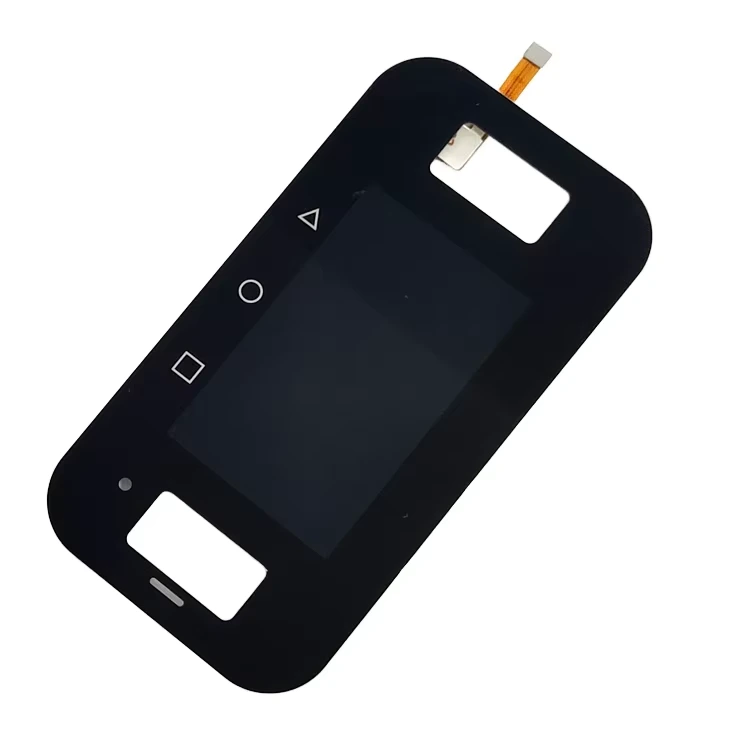

Customizable 3.5 Inch Capacitive Touch Tft Lcd Screen With 16:9 Smart Home Industrial Charging Pile Medical Outdoor/indoor1
5.0
brand name:
Grahowlet
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-1(pieces):7(days),>1(pieces):To be negotiated(days)
Customization:
Graphic customization (Min. Order: 300 sets),Customized packaging (Min. Order: 300 sets),Customized logo (Min. Order: 300 sets)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Name
3.5 inch capacitive touch displays panel with RGB interface
place of origin
Zhejiang, China
interface type
Usb, IIC/RGB
type
Capacitive
products status
New
private mold
Yes
after-sales service
Call Center and on-line Technical Support
aspect ratio
16:9
series
For Business
package
Yes
color
Black
warranty(year)
1-Year
Luminance
350 cd/m2
Viewing Area
ALL
Operating Temperature
-20℃ ~ 70℃
Active Area
75.60(W)x45.36(H) mm
Outline Dimension
145.70x75.70x3.38 mm
Panel Type
IPS TFT LCD Panel
Touch controller
CYTMA568
Structure
PCAP(Glass+Glass)+TFT
Touch type
PCAP 10 Points Capacitive
HX0351804 tft lcd screen 3.5 inch capacitive touch displays panel with RGB interface
Certifications
Product Description
Customize CTP/CTP+ LCD DISPLAY 1.3-65 inch Full range of standard product in stock (no need customization)
Need to be reminded: Standard products haven't special functions for the time being.
If your product needs special features,such as: waterproof, explosion-proof, gloved touch, etc,
please feel free to contact us.Thanks!
TPM | Product Name | HX0351804 |
Brand | Grahowlet | |
Size | 3.5 inch | |
Operating Temperature | -20℃ ~ 70℃ | |
Storage Temperature | -30℃ ~ 80℃ | |
Bonding workmanship | Optical Bonding | |
Outline Dimension | 145.70x75.70x3.38 mm | |
Viewing Area | 76.4(W)x46.16(H) mm | |
Active Area | 75.60(W)x45.36(H) mm | |
Support Systems | Windows/Android/Linux etc. | |
Warranty | 1 year | |
PCAP | Interface Type | USB/IIC |
Structure | G+G | |
Controller IC | Cypress | |
Touch Points | 10 Points | |
Transparency | ≥85% | |
Surface Hardness | ≥6H | |
Power Supply Voltage | 2.8V ~ 3.3V | |
TFT | Resolution | 480*800 |
TFT Interface Type | RGB | |
Luminance | 350 cd/m² | |
Viewing Angle | ALL |
Related Products
We can provide USB controller and HDMI/VGA driver board.
If you didn't find the suit one, Just tell us your requirements, so i could recommended you more suitable products.Please contact us.
Our Service
programe evsluation | 1 to 2 working days | |
Drawings | 2 to 3 working days | |
Customized products | 3 to 4 weeks(after drawings confirmed) | |
Mass Production delivery | 4.3 to 5 weeks | |
Software debugging | ||
Capacity | 100K per month(10.1 inches as a reference) | |
Process capability | G+G/G+F+F/G+F/P+F Structure,shielding process, overall module joint process(Optical Bonding/Air Bonding) ,Cover glass surface treatment AR, AG, AF etc | |
Technical support | Engineers to provide door-to-door or remote access service within 24 hours | |
Stable supply chain for at least 3~5 years guarantee | ||
One year warranty time for all of our products | ||
Packing&Shipping
FAQ
Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service，can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong
technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q:How long is the warranty time for your products?
A:Normally 1 year warranty without damaged by people actions like misuse.It depends on different products.
A:yes, we can provide both OEM and ODM service，can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong
technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q:How long is the warranty time for your products?
A:Normally 1 year warranty without damaged by people actions like misuse.It depends on different products.
