3.Keyboard (Optional) 4:HDMI/VGA drive board (Optional, not free)
5.HDMI cable (Optional, not free) 6.LVDS cable+backlight cable(Optional)
5.HDMI cable (Optional, not free) 6.LVDS cable+backlight cable(Optional)
12 years of experience in industrial touch screen R&D and manufacturing.

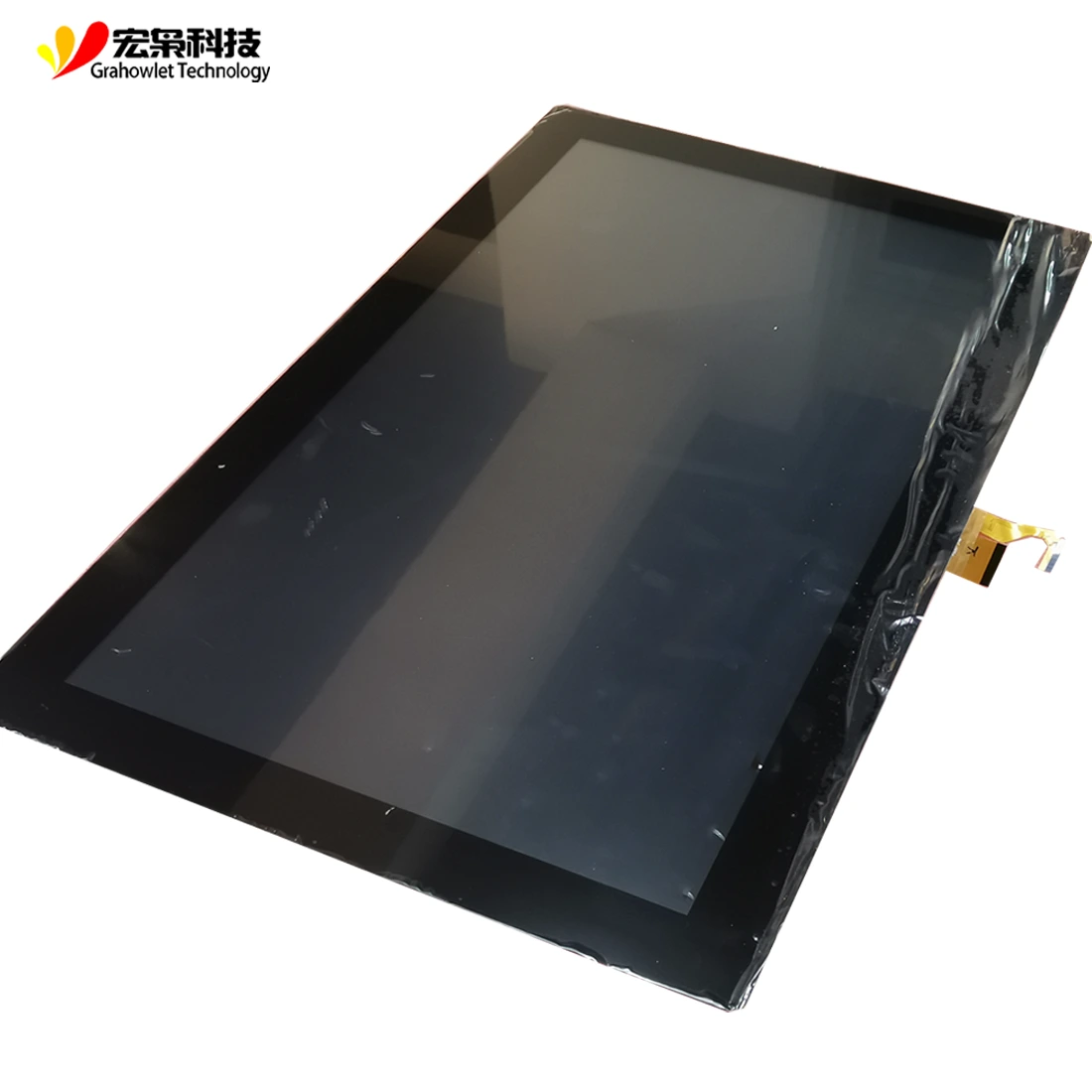

Custom Size Lcd Panel 21.5,23.6,24,27,30,32 Inch Touch Screen Raspberry Pi Full Hd Lcd Capacitive Touch Display Module
5.0
Model Number:
HX2361802
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-1(pieces):7(days),>1(pieces):To be negotiated(days)
Customization:
Customized logo (Min. Order: 300 sets),Customized packaging (Min. Order: 300 sets),Graphic customization (Min. Order: 300 sets)
Brand Name:
Grahowlet
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Interface
IIC/USB/RS232+LVDS/VGA/DVI
Operating Temperature
0℃ ~ 50℃
Active Area
521.28(W)x293.22(H) mm
Outline Dimension
588.8(W)x363.1(H)x15.2(D) mm
SIZE
23.6 inch
Operating System
XP/Win7/Win8/WIN10/Android/Linux etc
Application
Industrial, medical, Self-service terminal, Outdoor terminal
Panel Type
TFT-LCD
Touch controller
ILITEK
Structure
Glass+Glass)+LCD
Touch type
PCAP 10 Points Capacitive
Product name
23.6 inch touch screen raspberry pi full hd capacitive tft touch
Place of Origin
Zhejiang, China
Type
Capacitive
custom size lcd panel 21.5,23.6,24,27,30,32 inch touch screen raspberry pi full hd capacitive tft touch
Product Description
Customize CTP/CTP+ LCD DISPLAY 1.3-65 inch
Full range of standard product in stock (no need customization)
Product Name | HX2361802 |
Brand | Grahowlet |
Size | 23.6 inch |
Operating Temperature | 0℃ ~ 50℃ |
Storage Temperature | -20℃ ~ 60℃ |
Outline Dimension | 588.80(W)x363.10(H)x15.20(D)mm |
Viewing Area | 522.28(W)x294.22(H) mm |
Active Area | 521.28(W)x293.22(H)mm |
Support Systems | Windows/Android/Linux etc. |
Warranty | 1 year |
PCAP Interface Type | I2C/USB |
Structure | G+G |
Controller IC | ILITEK |
Touch Points | 10 Points |
Transparency | ≥85% |
Surface Hardness | ≥6H |
PCAP Power Supply Voltage | 5.0 V |
Resolution | 1920*1080 |
TFT Interface Type | LVDS/HDMI/VGA |
Luminance | 250 cd/m² |
Viewing Angle | ALL |
Package Content
Content (1pcs):
1.23.6" FULL HD touch screen 2.USB controller board+USB cable (Optional, not free）
Related Products
We can provide USB controller and HDMI/VGA driver board.
If you didn't find the suit one, Just tell us your requirements, so i could recommended you more suitable products.Please contact us.
Application
If you want USB interface, we can supply IIC to USB Bridgeboard
1.Support Touch with glove of all materials and thickness with 6mm
2.Support Touch with water/brine
3.Cover glass Support -8mm thickness--explosion-proof
4.Cover glass surface treatment--AG, AR, AF
Anti Glare (AG) processing could eliminate screen surface mirror problem
through converting direct light to diffuse light on the touch screen.
AR processing means adding a type of coating that could reduce reflected light on the cover
glass,which dereases screen reflection and increases visual effects
significantly in the sun.
Feedback of customers
For more Ratings & Reviews, please Click here
Our Service
programe evsluation | 1 to 2 morking days | |
Drawings | 2 to 3 working days | |
Customized products | 3 to 4 weeks(after drawings confirmed) | |
Mass Production delivery | 4.3 to 5 weeks | |
Software debugging | ||
Capacity | 100K per month(10.1 inches as a reference) | |
Process capability | G+G/G+F+F/G+F/P+F Structure,shielding process, overall module joint process(Optical Bonding/Air Bonding) ,Cover glass surface treatment AR, AG, AF etc | |
Technical support | Engineers to provide door-to-door or remote access service within 24 hours | |
Stable supply chain for at least 3~5 years guarantee | ||
One year warranty time for all of our products | ||
Packing&Shipping
FAQ
Q1:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service，can customize products according to the drawings you supply.
Q2: Is your company a real manufacturer?
A:Our company is a comprehensive service provider of capacitive touch screen in developing and manufacturing for many industries,
we have our long-term business factories but the solution design & products developing and software debugging are all completed by ourselves. you are warmly welcomed to visit our factory anytime.
Q3: How is the quality of the product?
A:Our products have been strictly tested high quality by QC before shipping to customers
Q4: Does the product only use for industry?
A:Our products use in medical, internet of things, vehicle-mounted industry, intelligent household, outdoor equipment and many other industries.
Q5: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
by using our products, customers' products(overall equipment) have been approved by CE, CCC, explosion-proof, RHOS,etc.
A:yes, we can provide both OEM and ODM service，can customize products according to the drawings you supply.
Q2: Is your company a real manufacturer?
A:Our company is a comprehensive service provider of capacitive touch screen in developing and manufacturing for many industries,
we have our long-term business factories but the solution design & products developing and software debugging are all completed by ourselves. you are warmly welcomed to visit our factory anytime.
Q3: How is the quality of the product?
A:Our products have been strictly tested high quality by QC before shipping to customers
Q4: Does the product only use for industry?
A:Our products use in medical, internet of things, vehicle-mounted industry, intelligent household, outdoor equipment and many other industries.
Q5: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
by using our products, customers' products(overall equipment) have been approved by CE, CCC, explosion-proof, RHOS,etc.
