Full range of standard product in stock (no need customization)
12 years of experience in industrial touch screen R&D and manufacturing.

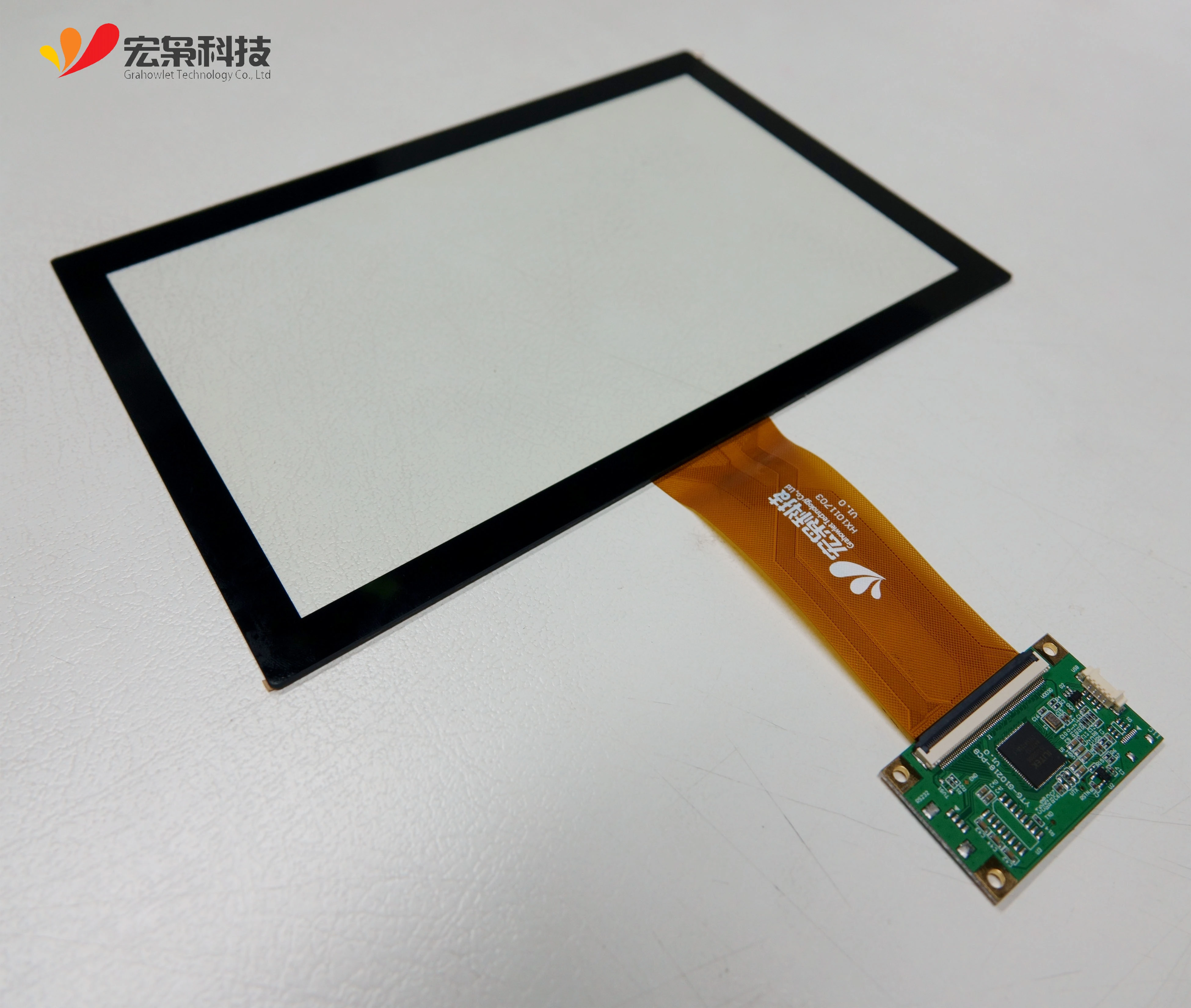

Custom Size 1.3~65 Inch Pcap Multi 10.1 Inch Industrial Touch Screen Agriculture Smart Home Medical
5.0
brand name:
grahowlet
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-1(pieces):7(days),>1(pieces):To be negotiated(days)
Customization:
Customized logo (Min. Order: 500 sets),Customized packaging (Min. Order: 500 sets),Graphic customization (Min. Order: 500 sets)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Power supply
5.0 V
Size
10.1 inch
place of origin
China
type
Industrial Computer Accessories
products status
Stock
stucture
glass+glass
Certification
Rohs
Interface
IIC USB
Operating System
XP Win7 8 10 Android Linux
Application
Industrial Application
Touch points
10 Points
Structure
Glass+Glass
Product name
custom size 1.3~65 inch pcap multi 10.1 inch industrial touch screen
Product Description
Customize CTP/CTP+ LCD DISPLAY 1.3-65 inch
Model Number | HX1011703 V1.0 |
Brand | Grahowlet |
Size | 10.1 inch |
Interface Type | IIC/USB |
Structure | G+G |
Controller IC | ILITEK |
Touch Points | 10 points |
Transparency | ≥85% |
Surface Hardness | ≥6H |
Operating Environment | -20℃ ~ 70℃,≤85% RH |
Storage Environment | -30℃ ~ 80℃,≤85% RH |
Power Supply Voltage | 5V |
Outline Dimension | 241.60(W)x163.20(H)x1.80(D) mm |
Viewing Area | 217.56(W)x136.20(H) mm |
Support Systems | Windows/Android/Linux etc. |
Warranty | 1 year |
Related Products
Model Number:HX1011701
Size:10.1 inch
Interface Type:IIC/USB
Structure:G+G
Controller IC:Cypress
Touch Points:10 points
Size:10.1 inch
Interface Type:IIC/USB
Structure:G+G
Controller IC:Cypress
Touch Points:10 points
Model Number:HX1011704
Size:10.1 inch
Resolution:1280x800
Interface Type:LVDS
Luminance:350 cd/m²
Viewing angle:ALL
Size:10.1 inch
Resolution:1280x800
Interface Type:LVDS
Luminance:350 cd/m²
Viewing angle:ALL
Model Number:HX1011804
Size:10.1 inch
Interface Type:IIC/USB
Structure:G+G
Controller IC:Cypress
Touch Points:10 points
Size:10.1 inch
Interface Type:IIC/USB
Structure:G+G
Controller IC:Cypress
Touch Points:10 points
Model Number:HX1011706
Size:10.1 inch
Resolution:1280x800
Interface Type:LVDS
Luminance:350 cd/m²
Viewing angle:ALL
Size:10.1 inch
Resolution:1280x800
Interface Type:LVDS
Luminance:350 cd/m²
Viewing angle:ALL
Model Number:HX1041803
Size:10.4 inch
Interface Type:IIC/USB
Structure:G+G
Controller IC:Cypress
Touch Points:10 points
Size:10.4 inch
Interface Type:IIC/USB
Structure:G+G
Controller IC:Cypress
Touch Points:10 points
Model Number:HX1011801
Size:10.1 inch
Resolution:1280x800
Interface Type:LVDS
Luminance:800cd/m²
Viewing angle:85/85/85/85
Size:10.1 inch
Resolution:1280x800
Interface Type:LVDS
Luminance:800cd/m²
Viewing angle:85/85/85/85
We can provide USB controller and HDMI/VGA driver board.
If you didn't find the suit one, Just tell us your requirements, so i could recommended you more suitable products.Please contact me.
Our Company
Hangzhou Hongxiao Technology is a comprehensive service provider of capacitive touch screen module and TFT LCD display for various industries. We provides solutions that match all customers’ touch screen needs and create products based on multiple technologies.We are committed to supply global customers with first-class products and professional technical services in the touch industries. Our products are of high stability and anti-interference performance and used in various industries with complicated and difficult conditions.
Application
Courier handheld terminal
Portable medical machine
Front loading Vehicle control system
Industrial Data Detection Equipment
■ Programme evaluation : 1 to 2 working days
■ Drawings:2 to 3 working days
■ Customized products:3 to 4 weeks(after drawings confirmed)
■ Pruduction delivery :3 to 5 weeks
■ Capacity: 100K per month(10.1 inches as a reference)
■ Process capability: G+G, G+F+F, shielding process, overall module joint process(Optical Bonding)(maximum 65 )Cover glass surface treatment AR, AG, AF
■ Technical support :We have more than 10 years of experience in touch screen industry, with a professional technical team, can always provide technical support for you.
■ Stable supply chain for at least 3~5 years guarantee
■ One year warranty time for all of our product
1.Support Touch with glove of all materials and thickness with 6mm
2.Support Touch with water/brine
3.Cover glass Support -8mm thickness--explosion-proof
4.Cover glass surface treatment--AG, AR, AF
Anti Glare (AG) processing could eliminate screen surface mirror problem through converting
direct light to diffuse light on the touch screen.
AR processing means adding a type of coating that could reduce reflected light on the cover
glass,which dereases screen reflection and increases visual effects
significantly in the sun.
Certifications
Packing & Delivery
FAQ
Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q:How long is the warranty time for your products?
A:Normally 1 year warranty without damaged by people actions like misuse.It depends on different products.
