12 years of experience in industrial touch screen R&D and manufacturing.

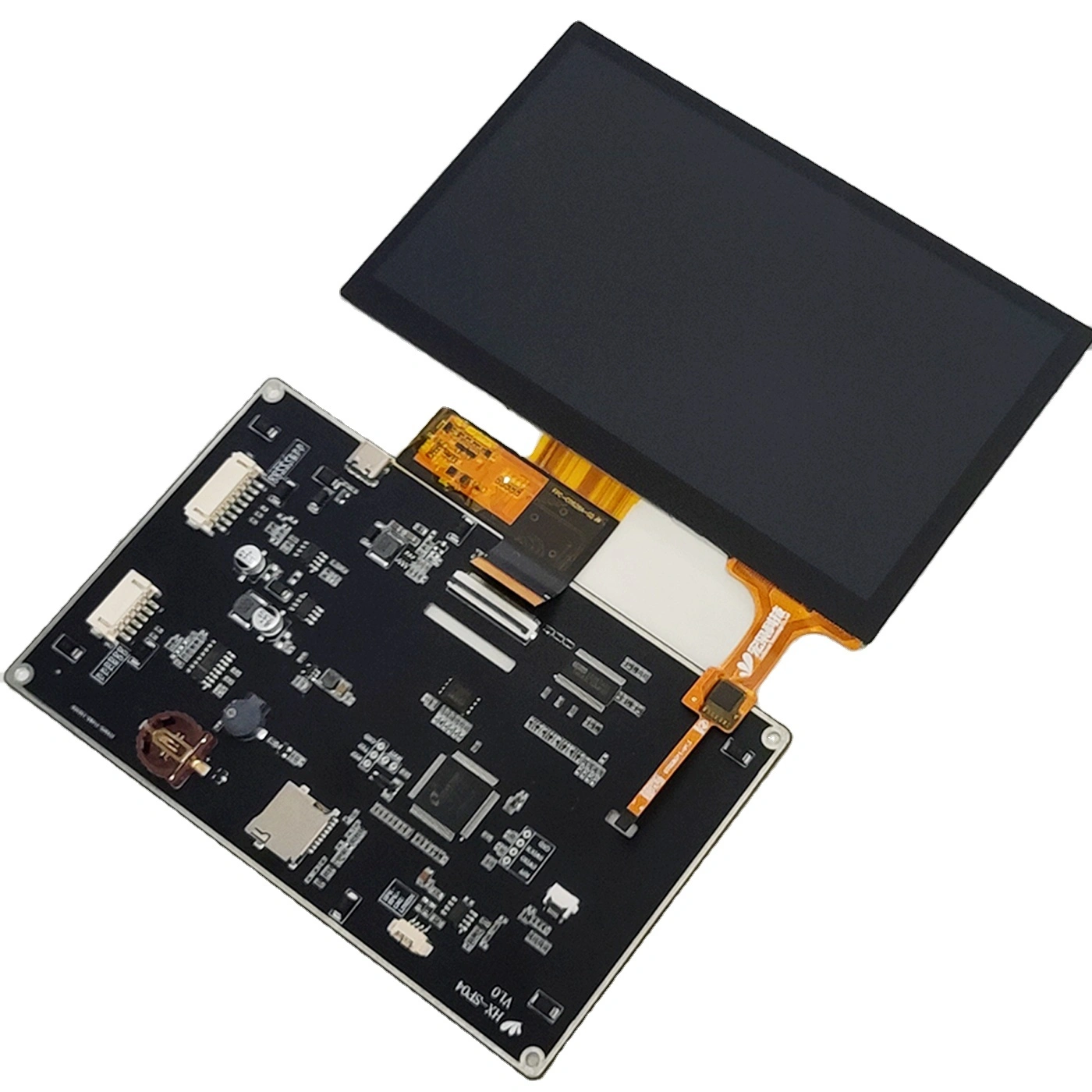

Capacitive Touch Screen 7 Inch,1024x600 Ips Tft Lcd,Lvds Display Capacitive Touch With Industrial Serial Port Screen
Model Number | HX0701820 | PCAP Number | HX0701601 |
Brand | Grahowlet | Interface Type | IIC/USB |
Size | 7.0 inch | Structure | Glass+Glass |
Operating Temperature | -20℃ ～ 70℃ | Controller IC | Cypress |
Storage Temperature | -30℃ ～ 80℃ | Touch Points | 1~10 points |
Outline Dimension | 165.00(W)x100.00(H)x5.35(D) mm | Power Supply Voltage | 2.8V ～ 3.3V |
Viewing Area | 154.88(W)x86.72(H) mm | TFT Number | HX070HI-40L01 |
Active Area | 154.21(W)x85.92(H) mm | Resolution | 1024*600 |
Bonding workmanship | Optical Bonding | Interface Type | 40pins LVDS/HDMI/VGA |
Support Systems | Windows/Android/Linux etc. | Luminance | 350~1000 cd/m² |
Warranty | 1 year | Viewing Angle | ALL |
We can provide USB controller, "MIPI TO HDMI" bridge board and HDMI/VGA driver board.
If you didn't find the suit one, Just tell us your requirements, so i could recommended you more suitable products.Please contact us.
Industrial Control
Medical Equipment
Intelligent Household Industry
Outdoor Equipment
programe evsluation | 1 to 2 morking days | |
Drawings | 2 to 3 working days | |
Customized products | 3 to 4 weeks(after drawings confirmed) | |
Mass Production delivery | 4.3 to 5 weeks | |
Software debugging | ||
Capacity | 100K per month(10.1 inches as a reference) | |
Process capability | G+G/G+F+F/G+F/P+F Structure,shielding process, overall module joint process(Optical Bonding/Air Bonding) ,Cover glass surface treatment AR, AG, AF etc | |
Technical support | Engineers to provide door-to-door or remote access service within 24 hours | |
Stable supply chain for at least 3~5 years guarantee | ||
One year warranty time for all of our products | ||
Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q:How long is the warranty time for your products?
A:Normally 1 year warranty without damaged by people actions like misuse.It depends on different products.
Grahowlet is a professional manufacturer of capacitive touch screen & LCD Touch monitors, with low power consumption, High Sensitivity, High resolution.
