Model Number:HX0501708
Size:5.0inch
Operating Temperature:-10℃ ~ 60℃
Outline Dimension:70.00x132.50x3.83 mm
Viewing Area:62.70(W)x111.00(H) mm
Active Area:62.10(W)x110.40(H) mm
Support Systems:Windows/Android/Linux etc.
12 years of experience in industrial touch screen R&D and manufacturing.

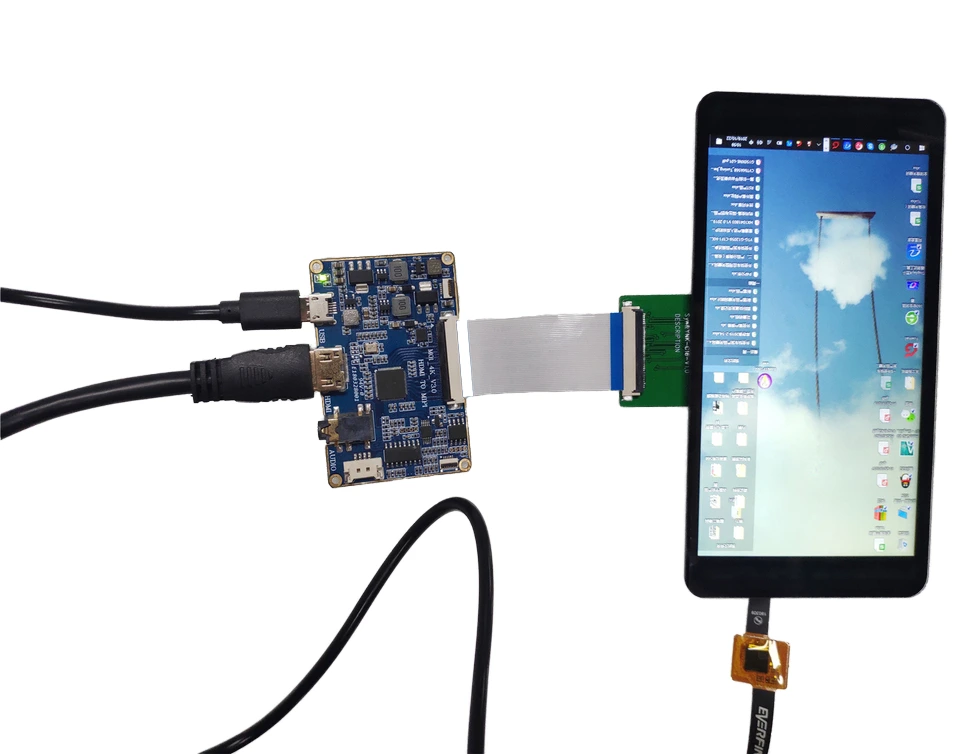

720*1280 Ips Lcd Panel 5 Inch Capacitive Touch Screen Display Module Smart Home Industrial Charging Pile Marine Outdoor/indoor
5.0
brand name:
Grahowlet
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-1(parcels):7(days),>1(parcels):To be negotiated(days)
Customization:
Customized logo (Min. Order: 500 sets),Customized packaging (Min. Order: 500 sets),Graphic customization (Min. Order: 500 sets)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Name
720*1280 IPS lcd panel 5 inch capacitive touch screen display module
place of origin
Zhejiang, China
interface type
Usb, IIC/MIPI
type
Capacitive
products status
New
private mold
Yes
after-sales service
Call Center and on-line Technical Support
aspect ratio
16:9
series
For Business
package
Yes
color
Black
warranty(year)
1-Year
Luminance
500 cd/m2
panel
IPS lcd panel
Active Area
62.10(W)x110.40(H) mm
Outline Dimension
70.00(W)x132.50(H)x3.83(D) mm
Resolution
720*1280
Touch controller
CYTMA568
Touch points
10 Points
Structure
CTP(Glass+film+film)+TFT
Touch type
PCAP 10 Points Capacitive
720*1280 IPS lcd panel 5 inch capacitive touch screen display module
Product Description
MODULE PRODUCT DETAILS
PCAP ( projected capacitive)
Light Transmittance:≥85%
Surface Hardness:≥6H
Interface Type:IIC/USB
Surface Hardness:≥6H
Interface Type:IIC/USB
Structure:Glass+Film+Film
Controller IC:Cypress
Touch Points:1-10 Points
Power Supply Voltage:2.8V ~ 3.3V
Controller IC:Cypress
Touch Points:1-10 Points
Power Supply Voltage:2.8V ~ 3.3V
LCD DPSILAY
Resolution:720*1280
Interface Type:MIPI
Luminance:500 cd/m²
Viewing Angle:ALL
Warranty:1 year
Interface Type:MIPI
Luminance:500 cd/m²
Viewing Angle:ALL
Warranty:1 year
Related Products
We can provide USB controller and HDMI/VGA driver board.
If you didn't find the suit one, Just tell us your requirements, so i could recommended you more suitable products.Please contact us.
Our Company
Hangzhou Hongxiao Technology is a comprehensive service provider of capacitive touch screen module and TFT LCD display for various industries. In order to meet different requirements of worldwide customers, Hongxiao supply all kinds of product structures such
as G + G, G + F (G + F + F ),P + G, etc. and various technical support programs such as Cypress , Atmel, EETI, FocalTech, Goodix etc. according to different application environments. We provides solutions that match all customers’ touch screen needs and create products based on multiple technologies. We are committed to supply global customers with first-class products and professional technical services in the touch industries. Our products are of high stability and anti-interference performance and used in various industries with complicated and difficult conditions.
as G + G, G + F (G + F + F ),P + G, etc. and various technical support programs such as Cypress , Atmel, EETI, FocalTech, Goodix etc. according to different application environments. We provides solutions that match all customers’ touch screen needs and create products based on multiple technologies. We are committed to supply global customers with first-class products and professional technical services in the touch industries. Our products are of high stability and anti-interference performance and used in various industries with complicated and difficult conditions.
Application
Courier handheld terminal
Portable medical machine
Front loading Vehicle control system
Industrial Data Detection Equipment
If you want USB interface, we can supply IIC to USB Bridgeboard
■ Programme evaluation : 1 to 2 working days
■ Drawings:2 to 3 working days
■ Customized products:3 to 4 weeks(after drawings confirmed)
■ Pruduction delivery :3 to 5 weeks
■ Capacity: 100K per month(10.1 inches as a reference)
■ Process capability: G+G, G+F+F, shielding process, overall module joint process(Optical Bonding)(maximum 65 )Cover glass surface treatment AR, AG, AF
■ Technical support :We have more than 10 years of experience in touch screen industry, with a professional technical team, can always provide technical support for you. ■ Stable supply chain for at least 3~5 years guarantee
■ One year warranty time for all of our product
1.Support Touch with glove of all materials and thickness with 6mm
2.Support Touch with water/brine
3.Cover glass Support -8mm thickness--explosion-proof
Our Service
programe evsluation | 1 to 2 morking days | |
Drawings | 2 to 3 working days | |
Customized products | 3 to 4 weeks(after drawings confirmed) | |
Mass Production delivery | 4.3 to 5 weeks | |
Software debugging | ||
Capacity | 100K per month(10.1 inches as a reference) | |
Process capability | G+G/G+F+F/G+F/P+F Structure,shielding process, overall module joint process(Optical Bonding/Air Bonding) ,Cover glass surface treatment AR, AG, AF etc | |
Technical support | Engineers to provide door-to-door or remote access service within 24 hours | |
Stable supply chain for at least 3~5 years guarantee | ||
One year warranty time for all of our products | ||
Feedback of customers
For more Ratings & Reviews, please Click here
Certifications
Packing & Delivery
FAQ
Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q:How long is the warranty time for your products?
A:Normally 1 year warranty without damaged by people actions like misuse.It depends on different products.
