12 years of experience in industrial touch screen R&D and manufacturing.

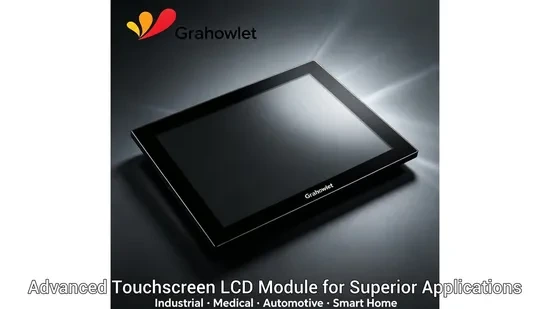

30 Inch Capacitive Touch Panel with USB and RS232 Interface
5.0
Aspect Ratio:
16:9
Screen Size:
30 Inch
Shipping Cost:
:
Contact the supplier about freight and estimated delivery time.
Model NO.:
H3001701
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Storage Environment
-30℃~80℃,≤85%Rh
Surface Hardness
≥6h
Resistive Touch Screen Type
Pcap
Package Gross Weight
1.500kg
Package Size
42.00cm * 30.00cm * 10.00cm
Production Capacity
50000pieces/Year
Origin
Zhejiang, China
Trademark
Grahowlet
Specification
Standard Specifications or Customized
Transport Package
Standard Packaging or Customized
Customized
Customized
Touch Points
10 Points
Warranty
1 Year
Product Name
Capacitive Touch Panel
Screen Type
Capacitive
Transparency
≥85%
Operating Environment
-20℃~70℃,≤85%Rh
Keywords
Touch Screen
Support Systems
Windows/Android/Linux etc.
Application
Industrial Control System
Structure
G+G
Interface Type
USB, Iic/RS232
Product Description
Product Description
CAPACITIVE TOUCH PANEL
Explore our high-performance 30-inch capacitive touch panel for demanding industrial use.
Advanced 10-point multi-touch & 16:9 ratio, offering precise interaction for professionals.
With ≥6H hardness and up to 8mm explosion-proof glass, it ensures clear display & durability.
PCAP panel supports glove & water touch, ideal for factories, kiosks, and marine applications.
Compatible with Windows, Android, Linux. Offers customization, OEM/ODM services, 1-year warranty.
USE
Factory HMI Systems
Panels for line control, CNC operation, and monitoring in manufacturing facilities.
Industrial Control Rooms
Command stations needing durable, multi-touch displays for system management & visualization.
Warehouse & Logistics
Terminals & order systems where glove touch is essential.
Outdoor Kiosks
Terminals exposed to sunlight, rain, and temperature changes.
Panels for line control, CNC operation, and monitoring in manufacturing facilities.
Industrial Control Rooms
Command stations needing durable, multi-touch displays for system management & visualization.
Warehouse & Logistics
Terminals & order systems where glove touch is essential.
Outdoor Kiosks
Terminals exposed to sunlight, rain, and temperature changes.
Product Parameters
TECHNICAL PARAMETERS | |
Model Number | HX3001701 V1.0 |
Size | 30.0 inch |
Operating Temperature | -20°C ~ 70°C, ≤85% RH |
Storage Temperature | -30°C ~ 80°C, ≤85% RH |
Outline Dimension | 675.30x434.80x3.10 mm |
Viewing Area | 643.28(W)x402.80(H) mm |
Support Systems | Windows/Android/Linux etc. |
Light Transmittance | ≥85% |
Surface Hardness | ≥6H |
Interface Type | USB/IIC |
Controller IC | ILITEK |
Structure | Glass+Glass |
Touch Points | 1-10 Points |
Power Supply Voltage | 5V |
Detailed Photos
PRECISE 10-POINT MULTI-TOUCH RESPONSE
SUPERIOR GLOVE TOUCH COMPATIBILITY
Supports 10-point touch input for smooth gestures, ensuring accurate control for complex interfaces.
Supports glove touch up to 6mm, enhancing safety and convenience in industrial settings.
EXPLOSION-PROOF COVER GLASS
HIGH SURFACE HARDNESS
Reinforced glass up to 8mm thick for explosion-proof safety in hazardous environments.
6H+ hardness for scratch resistance, maintaining a professional look in tough applications.
FAQ
Q1: Are you a factory or a trader?
A: We are an industry-trade integrated manufacturer. Visit us anytime.
Q2: Can I add my LOGO to the product?
A: We offer custom options: LOGO, color, and size.
Q3: What payment methods do you support?
A: We accept T/T, Western Union, PayPal, cash, etc. Details negotiable.
Q4: What are your modes of transportation?
A: We select transport (sea, air, land) based on goods or your preference.
Q5: How can I get an accurate quotation?
A: Send your needs and product images; we'll tailor a solution and provide pricing.
A: We are an industry-trade integrated manufacturer. Visit us anytime.
Q2: Can I add my LOGO to the product?
A: We offer custom options: LOGO, color, and size.
Q3: What payment methods do you support?
A: We accept T/T, Western Union, PayPal, cash, etc. Details negotiable.
Q4: What are your modes of transportation?
A: We select transport (sea, air, land) based on goods or your preference.
Q5: How can I get an accurate quotation?
A: Send your needs and product images; we'll tailor a solution and provide pricing.
