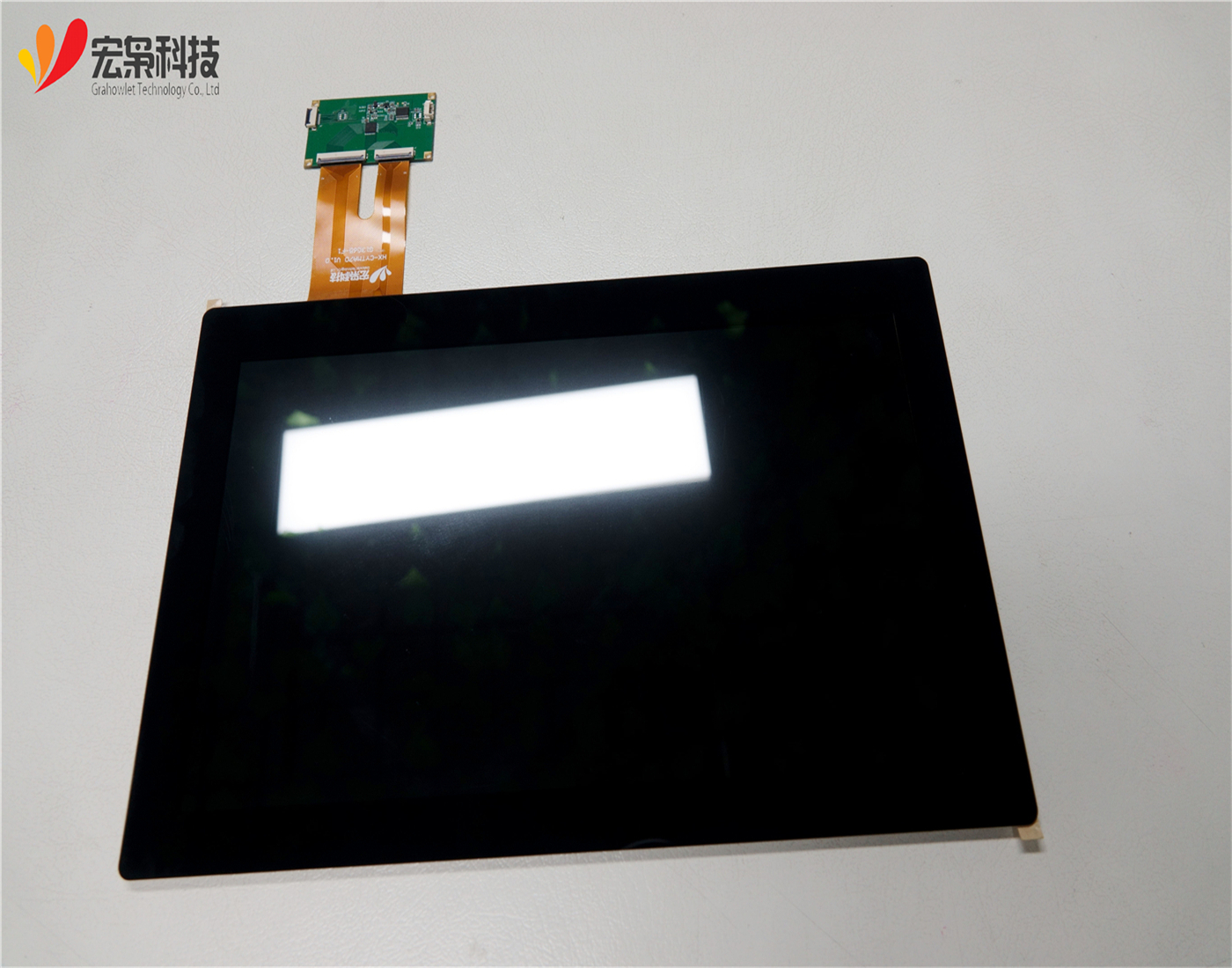

13.3 Inch Pcap Touch Panel With 1080p Tft Lcd Screen Panel
5.0
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-1(pieces):7(days),>1(pieces):To be negotiated(days)
Customization:
Customized logo (Min. Order: 300 sets),Customized packaging (Min. Order: 300 sets),Graphic customization (Min. Order: 300 sets)
Brand Name:
Grahowlet
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
programe evsluation
13.3 inch PCAP touch panel with 1080P tft lcd screen panel
Viewing Angle
ALL
Operating Temperature
0℃ ~50℃
Active Area
293.76(W)x165.24(H) mm
Outline Dimension
333.76(W)x210.24(H)x5.80(D) mm
Operating System
XP Win7 8 Android Linux etc
Panel Type
IPS TFT LCD Display
Touch controller
CYTMA568
Structure
PCAP(glass+glass)+TFT
Touch type
projected capacitive touch
Place of Origin
Zhejiang, China
Interface Type
usb, IIC/EDP/HMI/VGA
Type
Capacitive
Products Status
New
Private Mold
Yes
After-sales Service
Call Center and on-line Technical Support
Aspect Ratio
16:9
Series
For Business
Package
Yes
Color
Black
Warranty(Year)
1-Year
13.3 inch PCAP touch panel with 1080P tft lcd screen panel
Product Description
Customize CTP/CTP+ LCD DISPLAY 1.3-65 inch
Full range of standard product in stock (no need customization)
TPM | Model Number | HX1331802 |
Brand | Grahowlet | |
Size | 13.3 inch | |
Operating Temperature | 0℃ ~50℃ | |
Storage Temperature | -20℃ ~ 60℃ | |
Bonding workmanship | Optical Bonding | |
Outline Dimension | 333.76(W)x210.24(H)x5.80(D) mm | |
Viewing Area | :294.76(W)x166.24(H) mm | |
Active Area | 293.76(W)x165.24(H) mm | |
Support Systems | Windows/Android/Linux etc. | |
Warranty | 1 year | |
PCAP | Interface Type | IIC/USB |
Structure | Glass+Glass | |
Surface treatment | / | |
Controller IC | Cypress | |
Touch Points | 10 points | |
Transparency | ≥85% | |
Surface Hardness | ≥6H | |
Power Supply Voltage | 2.8V ~ 3.3V | |
TFT | Resolution | 1920*1080 |
Interface Type | EDP (30 PINS)/HDMI/VGA | |
Luminance | 300 cd/m² | |
Viewing Angle | ALL |
Related Products
We can provide USB controller and HDMI/VGA driver board.
If you didn't find the suit one, Just tell us your requirements, so i could recommended you more suitable products.Please contact us.
Application
If you want USB interface, we can supply IIC to USB Bridgeboard
1.Support Touch with glove of all materials and thickness with 6mm
2.Support Touch with water/brine
3.Cover glass Support -8mm thickness--explosion-proof
4.Cover glass surface treatment--AG, AR, AF
Anti Glare (AG) processing could eliminate screen surface mirror problem
through converting direct light to diffuse light on the touch screen.
Anti-Reflective(AR) processing means adding a type of coating that could reduce reflected
light on the cover glass,which dereases screen reflection and
increases visual effects significantly in the sun.
Anti-Fingerprint (AF) processing is adding on the cover glass a kind of coating that could increases surface smoothness,reduces surface aliding resistance,residual water and fingerprints on the surface significantly and improves touch feeling and clarity.
Feedback of customers
For more Ratings & Reviews, please Click here
Packing&Shipping
FAQ
Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong
technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q:How long is the warranty time for your products?
A:Normally 1 year warranty without damaged by people actions like misuse.It depends on different products.
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong
technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q:How long is the warranty time for your products?
A:Normally 1 year warranty without damaged by people actions like misuse.It depends on different products.
