12 years of experience in industrial touch screen R&D and manufacturing.

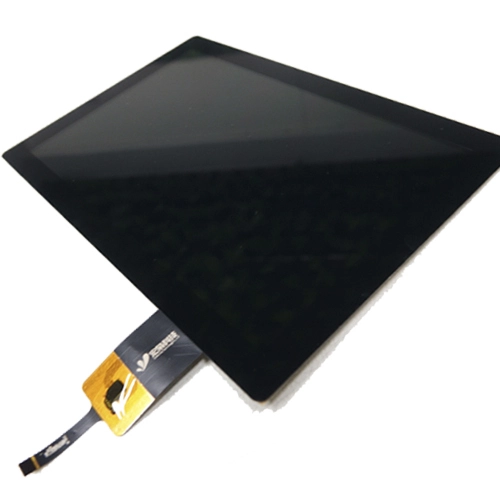

10.1 Inch 1280x800 Tft Lcd Display Panel With Pcap Touch Screen Industrial Smart Home Medical Car Educated Devices
5.0
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-1(pieces):7(days),>1(pieces):To be negotiated(days)
Customization:
Customized logo (Min. Order: 500 sets),Customized packaging (Min. Order: 500 sets),Graphic customization (Min. Order: 500 sets)
Brand Name:
Grahowlet
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Special function
Gloved touch/waterproof/Explosion proof
Power Supply Voltage
2.8V ~ 3.3V
Viewing Area
217.76(W)x136.40(H) mm
SIZE
10.1 inch
Application
Industrial Application
Touch controller
CYTMA568
Touch points
10 Points
Structure
PCAP(Glass+Glass)+TFT
Touch type
CTP capacitive touch panel
Product name
10.1 inch 1280x800 tft lcd display panel with PCAP touch screen
Place of Origin
Zhejiang, China
Interface Type
usb, IIC/LVDS/HMI/VGA
Type
Capacitive
Products Status
New
Private Mold
Yes
After-sales Service
Call Center and on-line Technical Support
Aspect Ratio
16:10
Series
For Business
Package
Yes
Color
Black
Warranty(Year)
1-Year
IPS LCD panel 10.1 inch 1280x800 tft lcd screen with 10 points capacitive touch panel
Product Description
Customize CTP/CTP+ LCD DISPLAY 1.3-65 inch
Full range of standard product in stock (no need customization)
Need to be reminded: Standard products haven't special functions for the time being. If your product needs special features,such as: waterproof, explosion-proof, touch with gloves, etc, please feel free to contact me.Thanks!
TPM | Model Number | HX1011702 |
Brand | Grahowlet | |
Size | 10.1 inch | |
Operating Temperature | -20℃ ~ 70℃ | |
Storage Temperature | -30℃ ~ 80℃ | |
Module Size | 247.96(W)x166.60(H)x7.50(D) mm | |
Viewing Area | 217.76(W)x136.40(H) mm | |
Active Area | 216.96(W)x135.60(H) mm | |
Support Systems | Windows/Android/Linux etc. | |
Warranty | 1 year | |
CTP | Interface Type | IIC/USB |
Structure | G+G | |
Controller IC | Cypress | |
Touch Points | 10 points | |
Transparency | ≥85% | |
Surface Hardness | ≥6H | |
Power Supply Voltage | 2.8V ~ 3.3V | |
TFT | Resolution | 1280x800 |
Interface Type | LVDS/HDMI/VGA | |
Luminance | 450 cd/m² | |
Viewing angle | 80/80/80/80 |
Related Products
We can provide USB controller and HDMI/VGA driver board.
If you didn't find the suit one, Just tell us your requirements, so i could recommended you more suitable products.Please contact us.
Our Company
Hangzhou Hongxiao Technology is a comprehensive service provider of capacitive touch screen module and TFT LCD display for various industries. In order to meet different requirements of worldwide customers, Hongxiao supply all kinds of product structures such
as G + G, G + F (G + F + F ),P + G, etc. and various technical support programs such as Cypress , Atmel, EETI, FocalTech, Goodix etc. according to different application environments. We provides solutions that match all customers’ touch screen needs and create products based on multiple technologies. We are committed to supply global customers with first-class products and professional technical services in the touch industries. Our products are of high stability and anti-interference performance and used in various industries with complicated and difficult conditions.
as G + G, G + F (G + F + F ),P + G, etc. and various technical support programs such as Cypress , Atmel, EETI, FocalTech, Goodix etc. according to different application environments. We provides solutions that match all customers’ touch screen needs and create products based on multiple technologies. We are committed to supply global customers with first-class products and professional technical services in the touch industries. Our products are of high stability and anti-interference performance and used in various industries with complicated and difficult conditions.
Application
Courier handheld terminal
Portable medical machine
Front loading Vehicle control system
Industrial Data Detection Equipment
If you want USB interface, we can supply IIC to USB Bridgeboard
1.Support Touch with glove of all materials and thickness with 6mm
2.Support Touch with water/brine
3.Cover glass Support -8mm thickness--explosion-proof
Our Service
programe evsluation | 1 to 2 morking days | |
Drawings | 2 to 3 working days | |
Customized products | 3 to 4 weeks(after drawings confirmed) | |
Mass Production delivery | 4 to 6 weeks | |
Software debugging | ||
Capacity | 100K per month(10.1 inches as a reference) | |
Process capability | G+G, G+F+F, shielding process, overall module joint process(Optical Bonding)(maximum 65 ") Cover glass surface treatment AR, AG, AF | |
Engineers to provide door-to-door or remote access service within 24 hours | ||
Stable supply chain for at least 3 years guarantee | ||
One year warranty time for all of our products | ||
Certifications
Feedback of customers
For more Ratings & Reviews, please Click here
Packing & Delivery
FAQ
Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q:How long is the warranty time for your products?
A:Normally 1 year warranty without damaged by people actions like misuse.It depends on different products.
